UNIS Funko FUNCADE T-441 Operation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
IMPORTANT
Operation Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Funko FUNCADE T-441 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for UNIS Funko FUNCADE T-441

Summary of Contents for UNIS Funko FUNCADE T-441

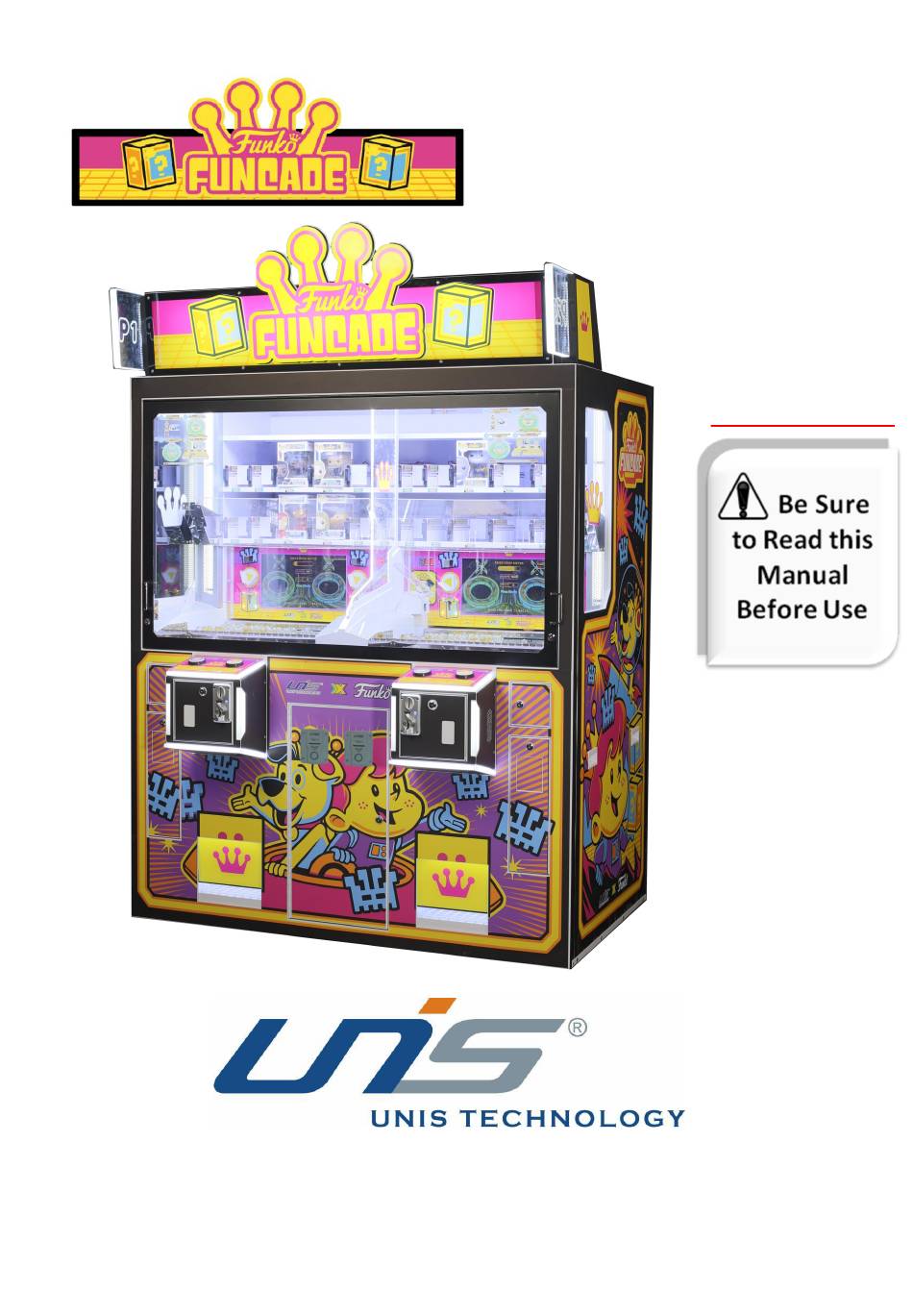

  • Page 1 IMPORTANT Operation Manual...
  • Page 2 Funko Funcade GMP Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com www.unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.
  • Page 3 Funko Funcade GMP Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ................ 3 1. SPECIFICATIONS ...................... 5 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. FIRST POWER ON OPERATION ................12 6.HOW TO PLAY ......................13 7.
  • Page 4 Funko Funcade GMP Manual Thank you for purchasing Funko Funcade GMP. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Funko Funcade GMP Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...
  • Page 6 Funko Funcade GMP Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz; Min. Power consumption: 690W Max. Power consumption: 790W Dimension: H93.68×W62.2 ×D46.69 in H2379 ×W1580×D1186 mm Weight：Approximately 661.38lb/300KG Model No: T-441 Part No.: F168 NOTICE : After turning off the game, please wait at least 1 minute before restarting again.
  • Page 7 Funko Funcade GMP Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Following accessories Part No. Code No. Name/SPEC Picture Fuse(T10A) F168-1801-00 2.19.01.000030B Ф5×20mm T10A 250VAC (PSE Power cord F168-1802-00 2.33.01.010020 3×16AWG 1.8M Manual F168-1803-00...
  • Page 8 Funko Funcade GMP Manual 3. PART NAME Key Components Marquee Assembly Prize placing position Monitor Button Prize out slot Coin Ticket mechanism dispenser 08/14/2024...
  • Page 9 Funko Funcade GMP Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid. ...
  • Page 10 Funko Funcade GMP Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in Service area Play area NOTICE Your unit must be leveled to operate properly. 08/14/2024...
  • Page 11 Funko Funcade GMP Manual 4.4 Machine Installation Step 1 Utilize key to open. Utilize screws to secure Control assy. To the cabinet. Step 2 Open Glass door. Locate cabinet top. Loosen 2 screws, push the marquee forward. Utilize screws to secure marquee. Connect the connectors. Finish! 08/14/2024...
  • Page 12 Funko Funcade GMP Manual 4.5 Card Reader Installation Safety Notice Take precaution to assure that all wiring voltages are confirmed prior to installation of card reader. All warranties are void if not properly installed resulting in logic board damage. Important: This game is pre-wired to AAMA standards. It is highly recommended to utilize this wiring for Card reader installation.
  • Page 13 Funko Funcade GMP Manual 5. FIRST POWER ON OPERATION Step 1 Press the Channel button and push the baffle to the end of the channel. Step 2 Place the prize box into the channel. Note: Be sure to place close to the left, which close to the sensor.
  • Page 14 Funko Funcade GMP Manual 6.HOW TO PLAY 6.1 Insert coins/Tap card to play. Judge from cursor movement in advance. Tap the buttons on either side to shoot balls through X. 6.2 Win Prize based on wheel the ball drops. 6.3 Aim for the bonus spin for prize drops. 6.4 Push the prize box over the edge to win it.
  • Page 15 Funko Funcade GMP Manual 7. GAME OPTION 7.1 Adjustment button instruction Coin counter Coin counter Open the service door and there is a meter Switch panel. Press “Bookkeeping/Setting” button for 5 seconds to Ticket counter Ticket counter enter the setting menu.
  • Page 16 Funko Funcade GMP Manual 7.4 Basic Setting Options Default Adjustable Range Description Free Game Close Open/Close Locked, can not change Pats/Game individually Locked, can not change DBV Bonus individually Balls/Game 1-20 Coins/Game 1-10 Demo Music Open Open/Close VO Volume 0-100 Voice Over BGM Volume 0-100...
  • Page 17 Funko Funcade GMP Manual 7.5 Customized Setting Options Default Adjustable Range Description Easy/Normal/Medium Refer to 7.5.1 for Box Payout Difficult /Hard/Difficult difficulty details. If set 1 coin 2 balls, Coin value/Ball Coin value=0.5 Coin Value/Small According to actual cost Prize to change this Coin Value/Medium parameter.
  • Page 18 Funko Funcade GMP Manual 7.5.1 Box Payout Details Option Options Option 2 Option 3 Option 4 Option 5 1-Default Box Payout Difficult Easy Normal Medium Hard Coin value/Ball Coin Value/Small Prize Coin Value/Medium Prize Coin Value/Grand Prize Super Spin Rate Spin Rate Spin To Win Box Rate...
  • Page 19 Funko Funcade GMP Manual Box Payout: change the difficulty will impact the box payout; or change each other parameter individually (except Tickets/Game) will also impact the box payout accordingly. Tickets/Game: change this parameter will impact the tickets payout only, but could not impact box payout definitely;...
  • Page 20 Funko Funcade GMP Manual No.13 Prize Channel Small No.14 Prize Channel Small Clean the box Motor Anti-theft Mech Motor Aging Test Clear Balls Back 7.7 Accounts Reset Note: Clear the records but Keep the settings. Accounts Reset? Back Clear all records? 7.8 Factory Reset Factory Reset? Back...
  • Page 21 Turn on power SW again. If appeared Circuit protector make power SW again and again, machine has Power off in off state. anomaly. Please contact with UNIS Service. Card reader not The connector is loose. Check connector. working Card reader fault.
  • Page 22 Funko Funcade GMP Manual Symptom Possible Cause Recommended action Check whether the drive board Brush voltage wrong. Brush no working and motor voltage is 12V Brush faulty. Replace Brush. Panel sensor no Check hoop sensor light and hoop Hoop sensor faulty. count/no flashing.
  • Page 23 Funko Funcade GMP Manual Display Possible Cause Recommended action The connector is loose. Plug the connector tightly. 5.Pusher Error Pusher motor faulty. Replace Pusher motor. Pusher sensor faulty. Replace Pusher sensor. The connector is loose. Plug the connector tightly. 6.Top L Balls Mech Top L Balls Mech jamming.
  • Page 24 Funko Funcade GMP Manual 8.2 System Recovery Operation (NOTE: Do not disconnect power during this process.) 1. Turn off the game. Remove the recovery stick from the holder. 2. Turn game on. Insert the recovery stick into the port of the Android board. Note: Don't insert the recovery stick into your Android board while is powering on the machine.
  • Page 25 Funko Funcade GMP Manual 9. MAINTENANCE & INSPECTION 9.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.
  • Page 26 Funko Funcade GMP Manual Step 2 Utilize Phillips screwdriver to loosen screws. Remove Sensor. Unplug the connector. Step 3 Replace it with new Sensor and install it in reversed order. Screws Sensor 9.4 Prize Box Channel & Motor Replacement Instructions Step 1 Open front glass door.
  • Page 27 Funko Funcade GMP Manual 9.5 Ball-Out Motor Replacement Instructions Step 1 Open Back bottom door. Utilize Phillips screwdriver to loosen screws. Remove Balls cover plate. Balls cover plate Screws Step 2 Utilize Phillips screwdriver to loosen screws. Remove Balls front plate. Step 3 Utilize Phillips screwdriver to loosen plastic 4 screws.
  • Page 28 Funko Funcade GMP Manual Step 5 Utilize wrench to loosen screws and remove flange plate. Step 6 Utilize Phillips screwdriver to loosen screws and remove motor. Step 7 Replace it with new motor and install it in reversed order. Motor Motor plate flange plate 9.6 How to takeout the marble(balls)
  • Page 29 Funko Funcade GMP Manual 10. OVERALL CONSTRUCTION 10.1 General Assembly Part No. Code No. Name Version Qty F168-0003-00 JH8.1326.093 Blanking plate V1.1 F168-0004-00 JH8.1326.094 Coin mech. blanking plate V1.1 08/14/2024...
  • Page 30 Funko Funcade GMP Manual 10.2 Cabinet Assembly 08/14/2024...
  • Page 31 Funko Funcade GMP Manual Part No. Code No. Name Version Qty O118-0101-00 JH6.1326.024b Front door board plate V1.1 O118-0102-00 JH8.1326.103 Side glass fixing plate 1 V1.2 O118-0103-00 JH8.1326.104 Side glass fixing plate 2 V1.2 O118-0104-00 JH8.1261.452 Power switch fixing plate V1.1 O118-0105-00 JH8.1326.111...
  • Page 32 Funko Funcade GMP Manual 10.3 Glass Door Part No. Code No. Name Version Qty F168-0301-00 JH6.1326.005 Glass door frame V1.1 F168-0302-00 JH8.1326.115 Glass door upper pressing V1.1 F168-0303-00 JH8.1326.114 Glass door L pressing V1.1 F168-0310-00 JH8.1326.114 Glass door R pressing V1.1 F168-0305-00 JH8.1326.113...
  • Page 33 Funko Funcade GMP Manual 10.4 Control Panel Assembly Part No. Code No. Name Version Qty F168-0401-00 JH6.1326.006 Control panel frame V1.1 F168-0402-00 JH6.1326.007 Control panel upper plate V1.1 F168-0403-00 JH8.1326.095 Control panel base plate V1.1 10.5 Side Ball Out Assembly Part No.
  • Page 34 Funko Funcade GMP Manual 10.6 Coin Box Assembly Part No. Code No. Name Version Qty F168-1901-00 JH6.1326m.005 Coin chute bracket V1.1 F168-1902-00 JH6.1326.023 Coin box bracket V1.1 F168-1903-00 JH6.1326.024 Coin inner box V1.1 F168-1904-00 JH8.1326.178 Meter bracket V1.1 F168-1905-00 2.51.02.040019 handle V1.1 10.7 Marquee Assembly...
  • Page 35 Funko Funcade GMP Manual 10.8 L Panel Assembly Part No. Code No. Name Version Qty F168-0801-00 JH6.1326.016 L monitor panel plate V1.1 F168-0802-00 JH8.1313.119 Swing ball base plate V1.1 F168-0803-00 JH8.1313.123 Swing ball motor base V1.1 F168-0804-00 JH6.1313.022 Short swing arm plate V1.1 F168-0805-00 JH8.1313.124...
  • Page 36 Funko Funcade GMP Manual 10.9 R Panel Assembly Part No. Code No. Name Version Qty F168-0901-00 JH6.1326.016 R monitor panel plate V1.1 F168-0802-00 JH8.1313.119 Swing ball base plate V1.1 F168-0803-00 JH8.1313.123 Swing ball motor base V1.1 F168-0804-00 JH6.1313.022 Short swing arm plate V1.1 F168-0805-00 JH8.1313.124...
  • Page 37 Funko Funcade GMP Manual 10.10 Ball-Out Assembly Part No. Code No. Name Version Qty F168-1001-00 JH6.1326.032 Ball out bracket V1.1 F168-1002-00 JH8.1326.165 Ball out chute plate 1 V1.1 F168-1003-00 JH8.1326.166 Ball out chute plate 3 V1.1 F168-1004-00 JH8.1326.158 Ball out bracket front V1.1 F168-1005-00 JH8.1326.160...
  • Page 38 Funko Funcade GMP Manual 10.11 Pusher Assembly Part No. Code No. Name Version Qty F168-1101-00 JH8.1313.125 Pusher motor plate V1.1 F168-1102-00 JH8.1303.214 Pusher sensor plate V1.1 F168-1103-00 JH8.1313.145 Pusher sliding wheel slot V1.1 F168-1104-00 JH6.1313.025 Pusher rod plate V1.1 F168-1105-00 JH6.1326.017 Pusher bracket V1.1...
  • Page 39 Funko Funcade GMP Manual 10.12 L Side Light Plastic Part No. Code No. Name Version Qty L side light plate V1.1 F168-1201-00 JH8.1326.105 Side light support plate V1.1 F168-1202-00 JH8.1326.107 Inner net plate V1.1 F168-1203-00 JH8.1326.106 Long light strip plate V1.1 F168-1204-00 JH8.1313.172...
  • Page 40 Funko Funcade GMP Manual 10.13 R Side Light Plastic Part No. Code No. Name Version Qty F168-1301-00 JH8.1326.105 R side light plate V1.1 F168-1202-00 JH8.1326.107 Side light support plate V1.1 F168-1203-00 JH8.1326.106 Inner net plate V1.1 F168-1204-00 JH8.1313.172 Long light strip plate V1.1 08/14/2024...
  • Page 41 Funko Funcade GMP Manual 10.14 L Prize-Out Assembly Part No. Code No. Name Version Qty F168-0501-00 JH6.1326.020 L Prize-Out bracket V1.1 F168-0502-00 JH8.1326.097 Prize-out light plate V1.1 F168-0503-00 JH8.1326.118 Prize-out motor plate V1.1 F168-0504-00 JH8.1326.138 L Prize-out sensor plate V1.1 F168-0505-00 JH8.1326.138 R Prize-out sensor plate...
  • Page 42 Funko Funcade GMP Manual 10.15 R Prize-Out Assembly Part No. Code No. Name Version Qty F168-2001-00 JH6.1326.020 R Prize-Out bracket V1.1 F168-2002-00 JH8.1326.097 Prize-out light plate V1.1 F168-2003-00 JH8.1326.118 Prize-out motor plate V1.1 F168-2004-00 JH8.1326.138 L Prize-out sensor plate V1.1 F168-2005-00 JH8.1326.138 R Prize-out sensor plate...
  • Page 43 Funko Funcade GMP Manual 10.16 Decals 08/14/2024...
  • Page 44 Funko Funcade GMP Manual Part No. Code No. Name Version Qty F168-1622-00 205.8.22128.309 Marquee side decal V1.1 F168-1626-00 205.8.22128.314 Marquee V1.1 F168-1630-00 205.8.22128.321 Top L side plastic V1.1 F168-1629-00 205.8.22128.320 Top R side plastic V1.1 F168-1637-00 205.8.22128.317 Game instructions decal V1.1 F168-1616-00 205.8.22128.303...
  • Page 45 Funko Funcade GMP Manual 08/14/2024...
  • Page 46 Funko Funcade GMP Manual Part No. Code No. Name Version Qty F168-1605-00 205.2.2248.032 Track placing decal V1.1 F168-1636-00 205.2.2248.529 Small prize decal V1.1 F168-1641-00 205.2.2248.531 Medium prize decal V1.1 F168-1635-00 205.2.2248.528 Grand prize decal V1.1 F168-1642-00 2.56.00.000037 High voltage label(l) V1.1 F168-1607-00 205.1.1605A.040 Adapter decal...
  • Page 47 Funko Funcade GMP Manual 10.17 Electrical Components Part No. Code No. Name Version Qty F168-1518-00 2.16.02.000105 Power supply(24V) V1.1 F168-1517-00 2.16.02.000117 Power supply(12V) V1.1 F168-1504-00 2.19.02.000020 Wiring bar V1.1 F168-1512-00 2.32.01000010 Filter V1.1 F168-0047-00 2.34.04.010086 Ball-out motor V1.1 Part No. Code No.
  • Page 48 Funko Funcade GMP Manual Part No. Code No. Name Version Qty F168-1714-00 208.8.22128.014 8811 light control board V1.1 F168-1702-00 208.8.22128.002 Mainboard V1.1 F168-1703-00 208.8.22128.003 Drive board V1.1 Part No. Code No. Name Version Qty F168-1704-00 208.8.22128.004 Dual-road drive board V1.1 08/14/2024...
  • Page 49 Funko Funcade GMP Manual Part No. Code No. Name Version Qty F168-1713-00 208.8.22128.013 Motor board V1.1 F168-0047-00 2.34.04.010086 Ball-out motor V1.1 F168-0063-00 202.8.22128.158 L ball out tube V1.1 F168-0064-00 202.8.22128.159 L front ball out tube V1.1 F168-0065-00 202.8.22128.160 L mid ball out tube V1.1 F168-0066-00 202.8.22128.161 R ball out tube...
  • Page 50 Funko Funcade GMP Manual Part No. Code No. Name Version F168-1713-00 208.8.22128.013 Motor board V1.1 F168-1525-00 2.20.02.020092 2811 light strip V1.1 263.77 in (6700mm) F168-0046-00 2.34.04.010085 12V10R motor V1.1 Part No. Code No. Name Version Qty F168-1711-00 208.8.22128.011 Prize slot sensor V1.1 08/14/2024...
  • Page 51 Funko Funcade GMP Manual Part No. Code No. Name Version Qty F168-1509-00 2.30.00000008 Meter V1.1 F168-1513-00 2.24.02.070004 Green button V1.1 F168-1510-00 2.26.01.040005 Power SW button V1.1 Part No. Code No. Name Version Qty F168-1519-00 2.17.04.000264 Long light board V1.1 08/14/2024...
  • Page 52 Funko Funcade GMP Manual Part No. Code No. Name Version Qty F168-1709-00 208.8.22128.009 Ball-out sensor V1.1 F168-1707-00 208.8.22128.007 0.8'' display V1.1 F168-1701-00 208.8.22128.001 Android board V1.1 F168-1526-00 2.33.04.000100 Extend cable V1.1 F168-1705-00 208.8.22128.005 Hook sensor V1.1 F168-1712-00 208.8.22128.012 U type light board V1.1 F168-1524-00 2.12.01.000042 15.6'' monitor...
  • Page 53 Funko Funcade GMP Manual Part No. Code No. Name Version Qty F168-1713-00 208.8.22128.013 Motor board V1.1 F168-0046-00 2.34.04.010085 12V10R motor V1.1 F168-1706-00 208.8.22128.006 Slot sensor V1.1 Part No. Code No. Name Version Qty F168-0048-00 2.34.04.010092 Track motor V1.1 F168-1710-00 208.8.22128.010 Prize out sensor V1.1 08/14/2024...
  • Page 54 Funko Funcade GMP Manual Part No. Code No. Name Version Qty F168-0050-00 2.34.04.010093 DC motor V1.1 Part No. Code No. Name Version Qty F168-1514-00 2.28.01.000016 Speaker V1.1 08/14/2024...
  • Page 55 Funko Funcade GMP Manual Part No. Code No. Name Version Qty F168-1518-00 2.16.02.000105 Power supply(24V) V1.1 F168-1517-00 2.16.02.000117 Power supply(12V) V1.1 F168-1504-00 2.19.02.000020 Wiring bar V1.1 F168-1512-00 2.32.01000010 Filter V1.1 F168-1532-00 2.21.4.0100012 Time replay V1.1 F168-1704-00 208.8.22128.004 Dual-road drive board V1.1 08/14/2024...
  • Page 56 Funko Funcade GMP Manual Part No. Code No. Name Version 1 F168-1520-00 2.20.02.020084 2835 light strip V1.1 49.21 in *2 2 F168-1524-00 2.12.01.000042 15.6'' monitor V1.1 F168-1505-00 2.24.01.000005 Button V1.1 F168-1507-00 2.26.04.000006 Micro SW V1.1 F168-1508-00 2.20.03.000006 LED blub V1.1 4 F168-1503-00 2.23.06000022 Coin mechanism V1.1...
  • Page 57 Funko Funcade GMP Manual Part No. Code No. Name Version 12 F168-1519-00 2.17.04.000264 Long light board V1.1 13 F168-1520-00 2.20.02.020084 2835 light strip V1.1 19.68 in*2 (500mm*2) 14 F168-1520-00 2.20.02.020084 2835 light strip V1.1 5.90 in*2 (150mm*2) Part No. Code No. Name Version F168-0048-00...
  • Page 59 Coin meter Ticket meter Prize meter R Prize light L Prize light 1P Out of tik light Out of ticket button Prize slot sensor GND1 12V1 Out of tik btn. Out of til. light 12V1 Coin GND2 12V2 DC12-1(page 1) 0.8'' 3 bit display Coin meter Ticket meter...
  • Page 61 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P...
