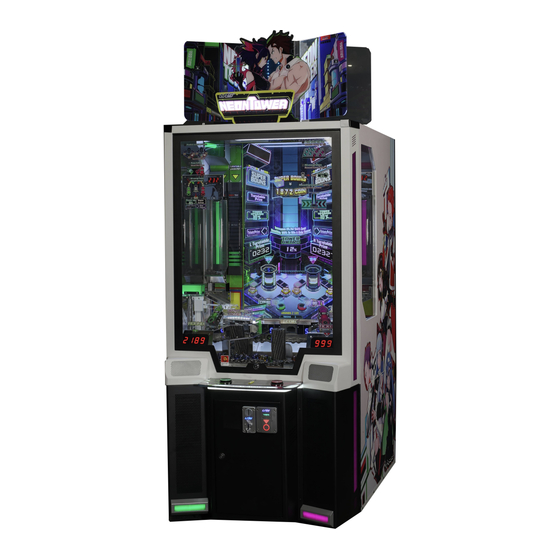

UNIS NEON TOWER GMP Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IMPORTANT
To UNIS Parts And
Service/Manuals
Operation Manual
Notice: Check
www.unispartsandservice.com/manuals
for current manuals and updates.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEON TOWER GMP and is the answer not in the manual?

Questions and answers

Related Manuals for UNIS NEON TOWER GMP

Summary of Contents for UNIS NEON TOWER GMP

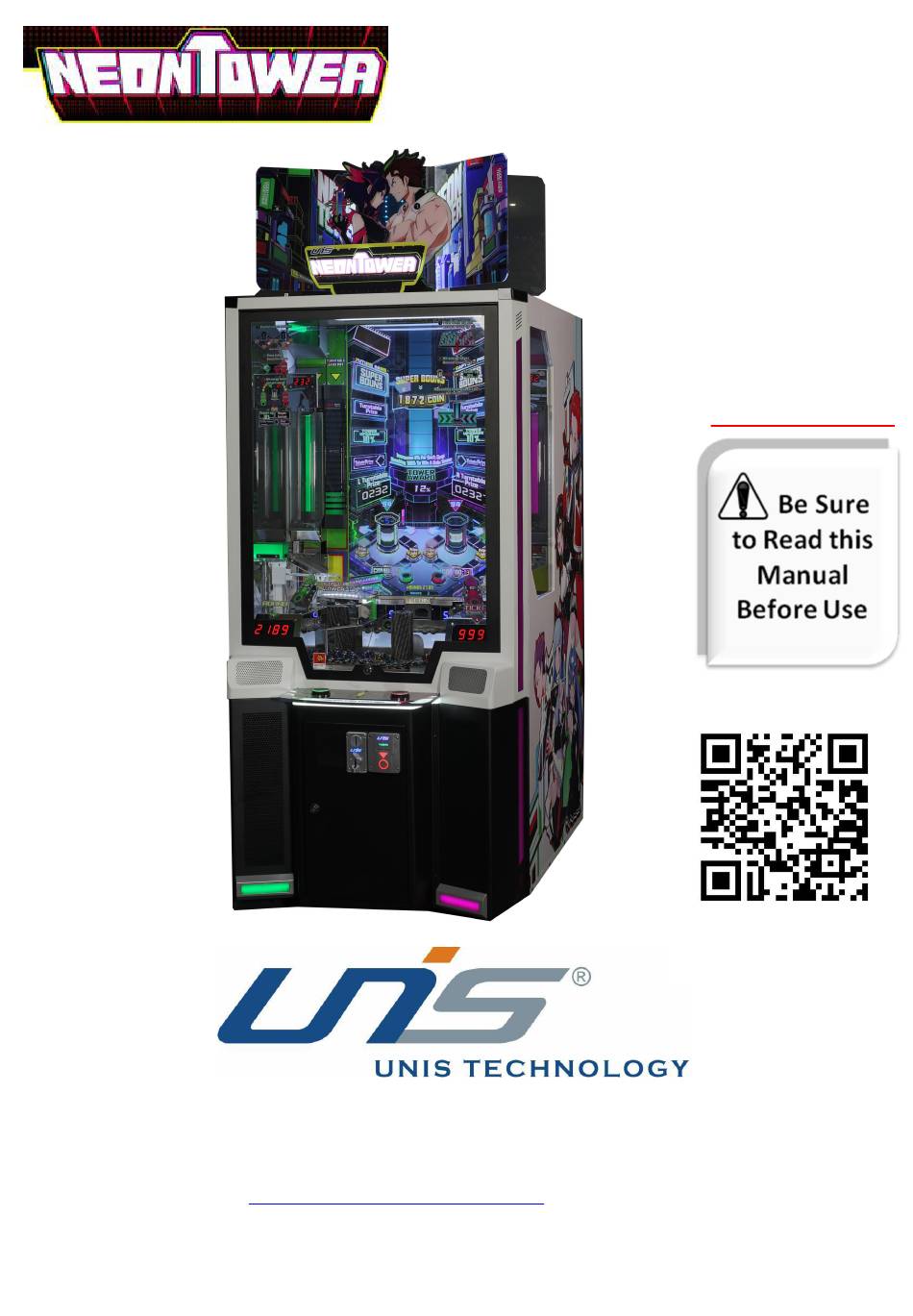

  • Page 1 IMPORTANT To UNIS Parts And Service/Manuals Operation Manual Notice: Check www.unispartsandservice.com/manuals for current manuals and updates.
  • Page 2 Neon Tower GMP Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com www.unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    Neon Tower GMP Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ................ 3 1. SPECIFICATIONS ...................... 5 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. HOW TO PLAY ......................12 6. GAME OPTION ......................14 7.

  • Page 4: Important Safety Instructions

    Neon Tower GMP Manual Thank you for purchasing Neon Tower GMP. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Neon Tower GMP Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    Neon Tower GMP Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz; Min. Power consumption: 220W Max. Power consumption: 350W Dimension: H94.29×W37.75×D54.68 in H2395×W959 ×D1389 mm Weight：Approximately 723.11 lb/328 KG Model No: C-796 Part No.: N115 NOTICE : After turning off the game, please wait at least 1 minute before restarting again.

  • Page 7: Contents Of The Accessory Kit

    Neon Tower GMP Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Following accessories Code No. Name/SPEC Picture Power cord 2.33.01.010020 3×16AWG 1.8M Fuse(T5A) 2.19.01.000012 Ф5×20mm T5A 250VAC (PSE) Fuse(T10A) 3 2.19.01.000030B Ф5×20mm T10A 250VAC (PSE UL)

  • Page 8: Part Name

    Neon Tower GMP Manual 3. PART NAME Key Components Marquee Assembly Monitor Coin tower Display Speaker Button 04/26/2025...

  • Page 9: Set Up & Installation

    Neon Tower GMP Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
  • Page 10 Neon Tower GMP Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in Service area Play area NOTICE Your unit must be leveled to operate properly.

  • Page 11: Machine Installation

    Neon Tower GMP Manual 4.4 Machine Installation Before processing with assembly assure you have the following tools. Name Picture Phillips screwdriver Step 1 Place Marquee bracket to the top of the cabinet. Utilize screws to secure. Connect the connectors Marquee...
  • Page 12 Neon Tower GMP Manual Step 2 Install L&R side acrylic to the top of the cabinet. Fini sh! 4.5 Card Reader Installation Safety Notice Take precaution to assure that all wiring voltages are confirmed prior to installation of card reader. All warranties are void if not properly installed resulting in logic board damage.

  • Page 13: How To Play

    Neon Tower GMP Manual 5. HOW TO PLAY 5.1 Judge From Cursor Movement In Advance. Find Best Pat to win. 5.2 Pat Button To Shoot Tokens. Tokens hit the energy tower and get reward. 04/26/2025...
  • Page 14 Neon Tower GMP Manual 5.3 Push Big ball out and win tower upgrade 2%; Tokens hit the energy tower and win tower up 10%. 5.4 Reach to 100% to get coin tower. 04/26/2025...

  • Page 15: Game Option

    Neon Tower GMP Manual 6. GAME OPTION 6.1 Adjustment button instruction Coin counter Open the service door Ticket counter and there is a meter panel. Press “L” button Up/Reset to enter the setting (Press for 5 sec) menu. Left/Setting Right...

  • Page 16: Basic Setting

    Neon Tower GMP Manual 6.2.2 Basic setting Options Status Free Play Close/Open Push Plate Running Close/Open Standby Music Close/Open Sound Effect Volume 0-100 Background Music 0-100 Auto-Play Time 0-100 Back 6.2.3 Customized Setting Options Status Ticket Rate Game/Round 1-20 Coin/Game...
  • Page 17 Neon Tower GMP Manual 6.2.5 Synchronization Setting Options Status Whether to synchronize the system settings Yes/No 6.2.6 Factory Data Reset Options Status Whether to factory data reset Yes/No 04/26/2025...

  • Page 18: Troubleshooting

    Neon Tower GMP Manual 7. TROUBLESHOOTING 7.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly fault Contact with UNIS Service. Turn on power SW again. If appeared...
  • Page 19 Neon Tower GMP Manual If you see following error signs showing on the display, please try the recommended action. Display Possible Cause Recommended action Change the cable after checking Cable quality problem the connection IO board. Searching Host, Cable became...
  • Page 20 Neon Tower GMP Manual Display Possible Cause Recommended action Jamming in the hopper, coin Remove the jammed chute, micro sw and sensor. things. Up coin motor is faulty. Replace motor Tower Lifting Error Change the cable after Cable quality problem checking the connection IO board.
  • Page 21 Neon Tower GMP Manual Display Possible Cause Recommended action L/R token tube sensor is Replace sensor. faulty. Cable quality problem Check and replace cable. L/R Token Tube Door Error L/R token tube motor is Replace motor. faulty. Drive board is faulty.
  • Page 22 Neon Tower GMP Manual Display Possible Cause Recommended action Check the connection cable Communication cable between Mainboard and problem Android board. Mainboard Communication Error Mainboard/Android board is Replace Mainboard/ faulty. Android board. Cable quality problem Check and replace cable. Place the machine on the Machine isn’t on the flat floor.

  • Page 23: Maintenance & Inspection

    Neon Tower GMP Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.

  • Page 24: Overall Construction

    Neon Tower GMP Manual 9. OVERALL CONSTRUCTION 9.1 General Assembly 04/26/2025...
  • Page 25 Neon Tower GMP Manual Part No. Code No. Name N115-0288-00 060068C-09 Side marquee acrylic N115-0289-00 060068C-11 Character acrylic N115-0290-00 60068.40 Marquee bracket N115-0291-00 060068C-08 Marquee cover N115-0292-00 060068C-10 LOGO acrylic N115-0293-00 #060068C-14 Top side bracket R N115-0294-00 #060068-67 R R side glass...
  • Page 26 Neon Tower GMP Manual Part No. Code No. Name N115-0420-00 60068.108 Top coin exit R N115-0421-00 #060068.401 Top light assy N115-0422-00 60068.108 Top coin exit L N115-0423-00 Tilt alarm N115-0424-00 060068-120 Top coin chute bracket N115-0425-00 060068-618 Monitor back bracket A N115-0426-00 60068.107...
  • Page 27 Neon Tower GMP Manual Part No. Code No. Name 8 N115-0427-00 #060068.50 Cabinet asst 9 N115-0428-00 #060068-269 Electrical board plate A 10 N115-0429-00 #060068-268 Electrical board plate B 11 N115-0430-00 #060068-267 Power supply assy 12 N115-0431-00 60068.406 Power cover 13 N115-0432-00...
  • Page 28 Neon Tower GMP Manual 9.2 Main cabinet wooden case 04/26/2025...
  • Page 29 Neon Tower GMP Manual Part No. Code No. Name N115-0085-00 M060068.01-01 Push plate base board N115-0086-00 M060068.01-02 Inner support board 2 N115-0087-00 M060068.01-03 Inner support board 3 N115-0088-00 M060068.01-04 Inner support board 4 N115-0089-00 M060068.01-05 Base board N115-0090-00 M060068.01-06 Up horizontal board N115-0091-00 M060068.01-07...
  • Page 30 Neon Tower GMP Manual 9.3 Front Frame Part No. Code No. Name N115-0116-00 060068-65 Front frame press plate L N115-0117-00 060068-66 Front frame L bracket N115-0118-00 060068-63 Air rod fixing plate N115-0119-00 60068.64 Front frame N115-0120-00 060068C-01 Front frame acrylic...
  • Page 31 Neon Tower GMP Manual 9.4 Panel bracket Part No. Code No. Name N115-0123-00 Start button N115-0124-00 060068-600 Panel cover plate N115-0125-00 60068.602 Panel bracket N115-0126-00 60068.603 Fake coin chute plate N115-0127-00 060068C-04 Panel side acrylic N115-0128-00 M060068-06 Panel pad board N115-0129-00 60068.601...
  • Page 32 Neon Tower GMP Manual 9.5 Side Glass Part No. Code No. Name N115-0135-00 060068-67 Side glass N115-0136-00 060068-68 Side glass press plate A N115-0137-00 060068-69 Side glass press plate B N115-0138-00 060068-70 Side glass press plate C 04/26/2025...
  • Page 33 Neon Tower GMP Manual 9.6 L/R side speaker bracket Part No. Code No. Name N115-0139-00 060068-252 Speaker net plate N115-0140-00 4'' speaker N115-0141-00 060068C-05 Side speaker marquee acrylic A N115-0142-00 060068-255 Bottom light bracket N115-0143-00 60068.254 Bottom base bracket N115-0144-00...
  • Page 34 Neon Tower GMP Manual 9.7 Front Glass Door Part No. Code No. Name N115-0151-00 60068.72 Front door frame N115-0152-00 060068-74 Glass press plate A N115-0153-00 060068-75 Glass L press plate B N115-0154-00 060068-76 Glass press plate C N115-0155-00 060068-77 Glass R press plate D N115-0156-00 60068.78...
  • Page 35 Neon Tower GMP Manual 9.8 Monitor Frame Assembly Part No. Code No. Name N115-0165-00 60068.112 Monitor R bracket N115-0166-00 60068.113 Monitor bottom bracket N115-0167-00 60068.114 Monitor L bracket N115-0168-00 060068-115 Monitor up bracket N115-0169-00 060068-116 Monitor bottom support plate N115-0170-00...
  • Page 36 Neon Tower GMP Manual 9.9 Coin Stacking Motor Assembly Part No. Code No. Name N115-0161-00 060068-90 Base coin box N115-0162-00 60068.409 Coin Stacking Motor cover plate N115-0163-00 060068-412 Up-coin bracket N115-0164-00 Coin Stacking Motor 04/26/2025...
  • Page 37 Neon Tower GMP Manual 9.10 Up-coin motor bracket R Part No. Code No. Name N115-0317-00 060068-98 R back up motor cover N115-0318-00 L coin box motor assy N115-0319-00 Mid coin-out motor assy N115-0320-00 60068.97 Up-coin motor connect plate N115-0321-00 060068-412...
  • Page 38 Neon Tower GMP Manual 9.11 Up-coin motor bracket L Part No. Code No. Name N115-0325-00 L coin box motor bracket N115-0326-00 60068.41 Motor cover plate N115-0327-00 060068-411 Coin channel bottom plate N115-0328-00 060068-624 Reflect sensor plate N115-0329-00 Reflect sensor 04/26/2025...
  • Page 39 Neon Tower GMP Manual 9.12 Shoot Coin Motor Assembly Part No. Code No. Name N115-0177-00 060068C-16 Shoot coin arrow acrylic N115-0178-00 060068-121 Shoot coin bracket C N115-0179-00 Shoot coin motor bracket N115-0180-00 060068-623 Reflect sensor plate N115-0181-00 Reflect sensor N115-0182-00...
  • Page 40 Neon Tower GMP Manual 9.13 Level Light Assy Part No. Code No. Name N115-0330-00 60068.283 Level light base bracket N115-0331-00 60068.284 Level bracket N115-0332-00 Level lght board N115-0333-00 060068C-17 Level light acrylic cover 9.14 Top Light Assy Part No. Code No.
  • Page 41 Neon Tower GMP Manual 9.15 L/R side coin bucket(with display) 04/26/2025...
  • Page 42 Neon Tower GMP Manual Part No. Code No. Name N115-0342-00 0.8'' 3 bit display N115-0343-00 060068-178 Coin bucket inner acrylic top plate N115-0344-00 Light tube bucket N115-0345-00 60068.202 Coin bucket base bracket N115-0346-00 060068-199 Motor plate N115-0347-00 Coin bucket motor...
  • Page 43 Neon Tower GMP Manual 9.16 Push Plate Motor Assy Part No. Code No. Name N115-0185-00 F688ZZ Bearing N115-0186-00 060068-246 Push plate connect rod N115-0187-00 F6800ZZ Bearing A N115-0188-00 SFU01204 Straight bearing N115-0189-00 60068.25 Push plate motor bracket N115-0190-00 31K15GN-C_1 Push plate motor N115-0191-00 60068.613...
  • Page 44 Neon Tower GMP Manual 9.17 Coin Tower Push Plate Bracket Part No. Code No. Name N115-0195-00 060068-243 Push plate spring N115-0196-00 060068-240 Push plate up plate N115-0197-00 634ZZ Bearing N115-0198-00 060068-289 Push plate front plate N115-0199-00 060068-241 Push plate plate D...
  • Page 45 Neon Tower GMP Manual 9.18 Small Push Plate Part No. Code No. Name N115-0338-00 #060068-289 Push Plate Scraper N115-0339-00 060068-226 Push plate front guide plate N115-0340-00 60068.62 Small push plate bracket N115-0341-00 #060068-279 Push plate connect plate 04/26/2025...
  • Page 46 Neon Tower GMP Manual 9.19 Push Plate Assembly 04/26/2025...
  • Page 47 Neon Tower GMP Manual Part No. Code No. Name N115-0204-00 060068-234 Push plate top block plate N115-0205-00 060068C-22 Push plate limit plate N115-0206-00 SRY2720-200MM Push plate rail N115-0207-00 060068-233 Push plate side block plate R N115-0208-00 060068-233 Push plate side block plate L N115-0209-00 ##060068.245...
  • Page 48 Neon Tower GMP Manual 9.20 Small Turntable (Spin Assembly) Part No. Code No. Name N115-0223-00 RT008-P0048 Upper PVC N115-0224-00 060068-210 Small round plate N115-0225-00 060068-209 Small cover plate N115-0226-00 RT008-P0049 Outer acrylic A N115-0227-00 RT008-P0047 Outer acrylic B N115-0228-00 60068.212...
  • Page 49 Neon Tower GMP Manual 9.21 Spin Assembly Part No. Code No. Name N115-0365-00 #060068.213 Small Turntable (Spin Assembly) N115-0366-00 060068-179 Ball-out track support plate N115-0367-00 60068.384 Ball-out track base plate N115-0368-00 RT008-P008 Ball-out guide plate B N115-0369-00 RT008-P0081 Ball-out guide plate A...
  • Page 50 Neon Tower GMP Manual 9.22 Coin Drop Hopper Assy Part No. Code No. Name N115-0382-00 MF684ZZ Connect rod bearing N115-0383-00 060068-273 Connect rod N115-0384-00 60068.101 Coin drop hopper N115-0385-00 MF128ZZ Rotation bearing N115-0386-00 060068-393 Motor pin plate N115-0387-00 060068-275 Bearing fixing plate N115-0388-00 60068.272...
  • Page 51 Neon Tower GMP Manual 9.23 Clear Coin Assy Part No. Code No. Name N115-0268-00 060068.102 Reflect sensor bracket L N115-0269-00 #060068.101 Coin Drop Hopper Assy N115-0270-00 60068.206 Ball hopper A-R N115-0271-00 60068.263 Ball hopper B-R N115-0272-00 60068.102 Reflect sensor bracket R...
  • Page 52 Neon Tower GMP Manual 9.24 Up Ball Assembly 04/26/2025...
  • Page 53 Neon Tower GMP Manual Part No. Code No. Name N115-0237-00 RT008-P0084 Spiral rod light cover N115-0238-00 060068-259 Warning light plate N115-0239-00 RT008-P0022 Side ball-out up cover N115-0240-00 F6002ZZ Ball transit bearing N115-0241-00 060068-189 Spiral metal welded bracket(up) N115-0242-00 RT008-P0085 Ball-out guide plate...
  • Page 54 Neon Tower GMP Manual 9.25 Stack Coin Mech. Part No. Code No. Name N115-0414-00 ##060068.86 Stack coin assy N115-0415-00 060068-89 Tower base plate C(R) N115-0416-00 60068.87 Jack N115-0417-00 #060068-88 Tower base plate B N115-0418-00 060068-86 Tower base plate A N115-0419-00...
  • Page 55 Neon Tower GMP Manual 9.26 Top Light Assy Part No. Code No. Name N115-0398-00 060068-287 Top light up plate N115-0399-00 60068.286 Top light R plate N115-0400-00 26 light tube N115-0401-00 060068C-25 Top light bottom plate N115-0402-00 60068.285 Top light L plate...
  • Page 56 Neon Tower GMP Manual 9.27 Prizing Channel Part No. Code No. Name N115-0403-00 60068.223 Prizing channel bracket N115-0404-00 060068C-26 Prizing channel L acrylic N115-0405-00 060068C-26 Prizing channel R acrylic N115-0406-00 Prizing channel front sensor board N115-0407-00 060068-280 Support column N115-0408-00...
  • Page 57 Neon Tower GMP Manual 9.28 Clear Coin Motor Assy Part No. Code No. Name N115-0277-00 60068.103 Divide coin mech. bottom chute B N115-0278-00 060068-412 L coin block plate N115-0279-00 60068.103 Divide coin mech. bottom chute B N115-0280-00 60068.100 Divide coin mech. bottom chute A...
  • Page 58 Neon Tower GMP Manual 9.29 Coin Box Part No. Code No. Name N115-0410-00 60068.281 Guide track N115-0411-00 60068.404 Coin box 9.30 Fan Part No. Code No. Name N115-0412-00 060068-266 Fan bracket N115-0413-00 www.unistechnology.com 04/26/2025...

  • Page 59: Wiring Diagram

    Mainboard communication L prizing channel Sensor L prizing channel Sensor L prizing channel Sensor GND-4 5V-4 R prizing channel Sensor R prizing channel Sensor R prizing channel Sensor GND-4 5V-4 PH-4P/UART4 PH-4P meter L Spiral drive L Spiral drive L up coin out drive L up coin out drive L shoot coin motor drive L shoot coin motor drive...
  • Page 60 L turntable motor - L turntable motor+ 5V-3 L turntable sensor GND-3 5264-3P 5264-3P L shhot coin save...
  • Page 61 R turntable motor - R turntable motor + 5V-3 R turntable sensor GND-3 5557-6P R moving+sensor Tilt alarm Pusher back micro sw Micro SW GND Pusher front micro sw Micro SWGND...
  • Page 62 R up ball motor sensor L up ball motor sensor 5264-3P 5264-3P L up ball motor sensor R up ball motor sensor VH-3P...
  • Page 63 A2545-40P Coin tower motor Coin tower motor Coin tower motor SM-2P male SM-2P female YL-2P female VH-2P...
