Summary of Contents for UNIS TIME OUT

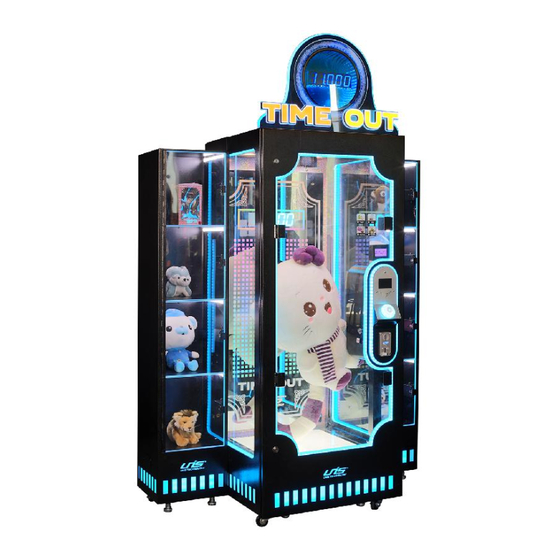

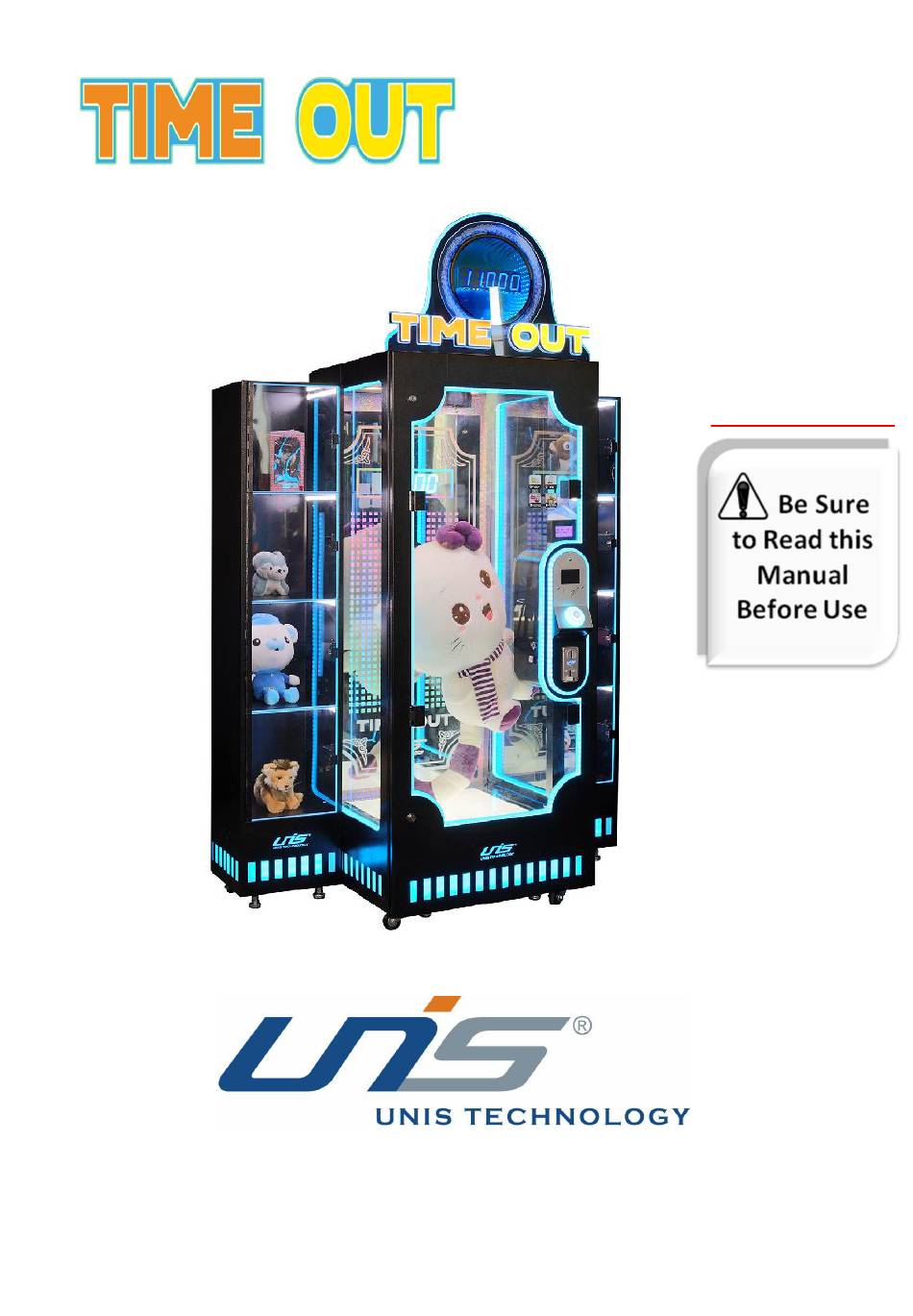

  • Page 1 110V IMPORTANT Operation Manual...
  • Page 2 Skill Time Out GMP Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com www.unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    Skill Time Out GMP Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ................ 3 1. SPECIFICATIONS ...................... 5 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. HOW TO PLAY ......................11 6.

  • Page 4: Important Safety Instructions

    Skill Time Out GMP Manual Thank you for purchasing Time Out GMP. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Skill Time Out GMP Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors.

  • Page 6: Specifications

    Skill Time Out GMP Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; Min. Power consumption: 830W Max. Power consumption: 858W Dimension: H98.13×W61.41×D34.37 in H2492.6×W1560 ×D873 mm Weight：Approximately 674.61 lb/306 KG Model No: A-509 Part no.: T164 NOTICE : After turning off the game, please wait at least 1 minute before restarting again.

  • Page 7: Contents Of The Accessory Kit

    Skill Time Out GMP Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Following accessories Part No. Code No. Name/SPEC Picture T164-0803-00 2.53.00608837 1408a key T164-0804-00 2.53.00608838 1408b key T164-0805-00 2.53.00608839...

  • Page 8: Part Name

    Skill Time Out GMP Manual 3. PART NAME Key Components 10/30/2023...

  • Page 9: Set Up & Installation

    Skill Time Out GMP Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
  • Page 10 Skill Time Out GMP Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in Service area Play area NOTICE Your unit must be leveled to operate properly.
  • Page 11 Skill Time Out GMP Manual 4.4 Machine Installation Before processing with assembly assure you have the following tools. Name Picture Phillips screwdriver 1408a key Step 1-1 Place L&R side cabinet to the main cabinet as shown below. Utilize key to open back door on the L&R side cabinet.

  • Page 12: How To Play

    Skill Time Out GMP Manual 5. HOW TO PLAY 5.1 Insert Coin(s) or Tap/Swipe Card to Start. 5.2 Push the button to start the timer. 5.3 Push the button again to try and stop the timer at 10.000. 5.4 You win if stops at 10.000.

  • Page 13: Game Option

    Skill Time Out GMP Manual 6. GAME OPTION 6.1 Keyboard instruction Open front Prize door with door key, there is a Keyboard near the Coin box. Hold “L”& “UP” buttons for 3s to enter the setting menu. After entering the menu, use “UP” & “DOWN” buttons to control mini screen cursor up &...
  • Page 14 Skill Time Out GMP Manual Options Status Default Description Set Small Prize Time Range Small Time No.1-No.500 No.20 (each number means a time range like 9.968ms-10.032ms) Prize Mode Not/Fix/Rnd/Skill/Must Open Grand prize door when win the GPrize Door Open/Close prize...

  • Page 15: Troubleshooting

    Skill Time Out GMP Manual 7. TROUBLESHOOTING 7.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Check connector. Game will not loose. start Frame assembly fault Contact with UNIS Service.

  • Page 16: Maintenance & Inspection

    Skill Time Out GMP Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.

  • Page 17: Overall Construction

    Skill Time Out GMP Manual 9. OVERALL CONSTRUCTION 9.1 General Assembly 10/30/20223...
  • Page 18 Skill Time Out GMP Manual Part No. Code No. Name Version Qty T164-0022-00 206.2.2306.002 Glass door rubber PVC V1.1 T164-0023-00 206.2.2306.025 Glass door rubber tube V1.1 T164-0025-00 206.2.2306.008 Front light plastic 1 V1.1 T164-0026-00 206.2.2306.009 Front light plastic 2 V1.1 T164-0027-00 206.2.2306.010...
  • Page 19 Skill Time Out GMP Manual 9.2 Marquee Part No. Code No. Name Version Qty T164-0013-00 206.2.2318.017 Marquee light plastic L V1.1 T164-0014-00 206.2.2318.018 Marquee light plastic R V1.1 T164-0015-00 206.2.2318.019 Round black nylon A V1.1 T164-0016-00 206.2.2318.020 Round black nylon B V1.1...
  • Page 20 Skill Time Out GMP Manual 9.3 Side Cabinet (Small Prize Cabinet) Part No. Code No. Name Version Qty 1 T164-0009-00 206.2.2318.010 Small prize cabinet bottom light plastic V1.1 3X2 2 T164-0010-00 206.2.2318.011 Small prize cabinet bottom light mounting V1.1 3X2 3 T164-0011-00 206.2.2318.012...
  • Page 21 Skill Time Out GMP Manual 9.4 Middle Cabinet Frame 10/30/20223...
  • Page 22 Skill Time Out GMP Manual Part No. Code No. Name Version Qty T164-0501-00 LJ.G-01-01 Cabinet bracket V1.1 T164-0502-00 LJ.G-01-02 Coin outer box V1.1 T164-0503-00 LJ.G-01-03 Coin inner box V1.1 T164-0504-00 LJ.G-01-04 Coin-in chute V1.1 T164-0505-00 LJ.G-01-05 Upper plate V1.1 T164-0506-00 LJ.G-01-07...
  • Page 23 Skill Time Out GMP Manual 9.5 Front door(Middle Cabinet) 10/30/20223...
  • Page 24 Skill Time Out GMP Manual Part No. Code No. Name Version Qty T164-0601-00 LJ.G-02-04 Front door V1.1 T164-0602-00 LJ.G-02-05 Pane bracket V1.1 T164-0603-00 LJ.G-02-06 Panel V1.1 T164-0604-00 LJ.G-02-07 Coin chute V1.1 T164-0605-00 LJ.G-02-09 Bottom light marquee V1.1 T164-0606-00 LJ.G-02-10 Lock box V1.1...
  • Page 25 Skill Time Out GMP Manual 9.7 Decals 10/30/20223...
  • Page 26 Skill Time Out GMP Manual Part No. Code No. Name Version Qty V1.1 T164-0421-00 205.2.2318.001/1 Time Out marquee V1.1 T164-0412-00 205.2.2306.011 UNIS logo acrylic V1.1 T164-0433-00 205.2.2318.114 Refill instructions decal V1.1 T164-0415-00 205.2.2306.019 Emergency button decal V1.1 T164-0414-00 205.2.2306.018 Emergency button instructions decal V1.1...
  • Page 27 Skill Time Out GMP Manual 10/30/20223...
  • Page 28 Skill Time Out GMP Manual Part No. Code No. Name Version Qty T164-0417-00 2.56.00.000125 110V warning label V1.1 T164-0436-00 2.56.00.000127 Warning label set V1.1 T164-0424-00 205.2.2318.106 Wiring decal V1.1 T164-0432-00 205.2.2318.103 110V nameplate V1.1 T164-0431-00 205.2.2318.113 Setting panel decal V1.1 T164-0409-00 2.56.00.000095A...
  • Page 29 Skill Time Out GMP Manual 9.8 Electrical Components Part No. Code No. Name Version T164-0122-00 297.6.2306001 Display V1.1 T164-0121-00 2.20.02.020092 2811 light strip V1.1 39.37 in (1000mm) 2 T164-0121-00 2.20.02.020092 2811 light strip V1.1 94.48in*3 (2400mm*3) 3 T164-0203-00 297.1.1804001 2.3'' 5 bit display V1.1...
  • Page 30 Skill Time Out GMP Manual Part No. Code No. Name Version 1 T164-0124-00 2.20.02.015021 BG5050RGB light strip V1.1 11.81 in (300mm) 2 T164-0124-00 2.20.02.015021 BG5050RGB light strip V1.1 51.18 in (1300mm) 3 T164-0124-00 2.20.02.015021 BG5050RGB light strip V1.1 171.25 in (4350mm) 4 T164-0105-00 2.20.02.015019 BG5050W white light strip V1.1 157.48 in (4000mm)
  • Page 31 Skill Time Out GMP Manual Part No. Code No. Name Version Qty T164-0109-00 2.16.02.000117 Power supply(12V) V1.1 T164-0110-00 2.16.02.000137 Power supply V1.1 T164-0103-00 2.17.14.000243A Fuse board V1.1 T164-0128-00 297.9.2306001 T6 mainboard V1.1 T164-0131-00 2.24.02.070013 Setting panel V1.1 10/30/20223...
  • Page 32 Skill Time Out GMP Manual Part No. Code No. Name Version Qty T164-0125-00 2.20.03.230062 Down light V1.1 T164-0126-00 2.20.03.230012 White light board V1.1 T164-0115-00 2.28.01.000005 Speaker V1.1 T164-0104-00 2.30.00000006 Counter V1.1 T164-0113-00 2.26.01.040005 Power switch V1.1 T164-0129-00 2.24.03.000001 Knot cover V1.1...
  • Page 33 Skill Time Out GMP Manual Small Prize Cabinet Part No. Code No. Name Version Qty T164-0305-00 297.9.2306001 T6 mainboard V1.1 T164-0306-00 2.17.14.000243A Fuse board V1.1 T164-0307-00 2.16.02.000114 Power supply(12V) V1.1 T164-0304-00 2.53.00608822 Electrical magnet lock V1.1 T164-0303-00 2.20.03.230059 Cabinet light V1.1...
