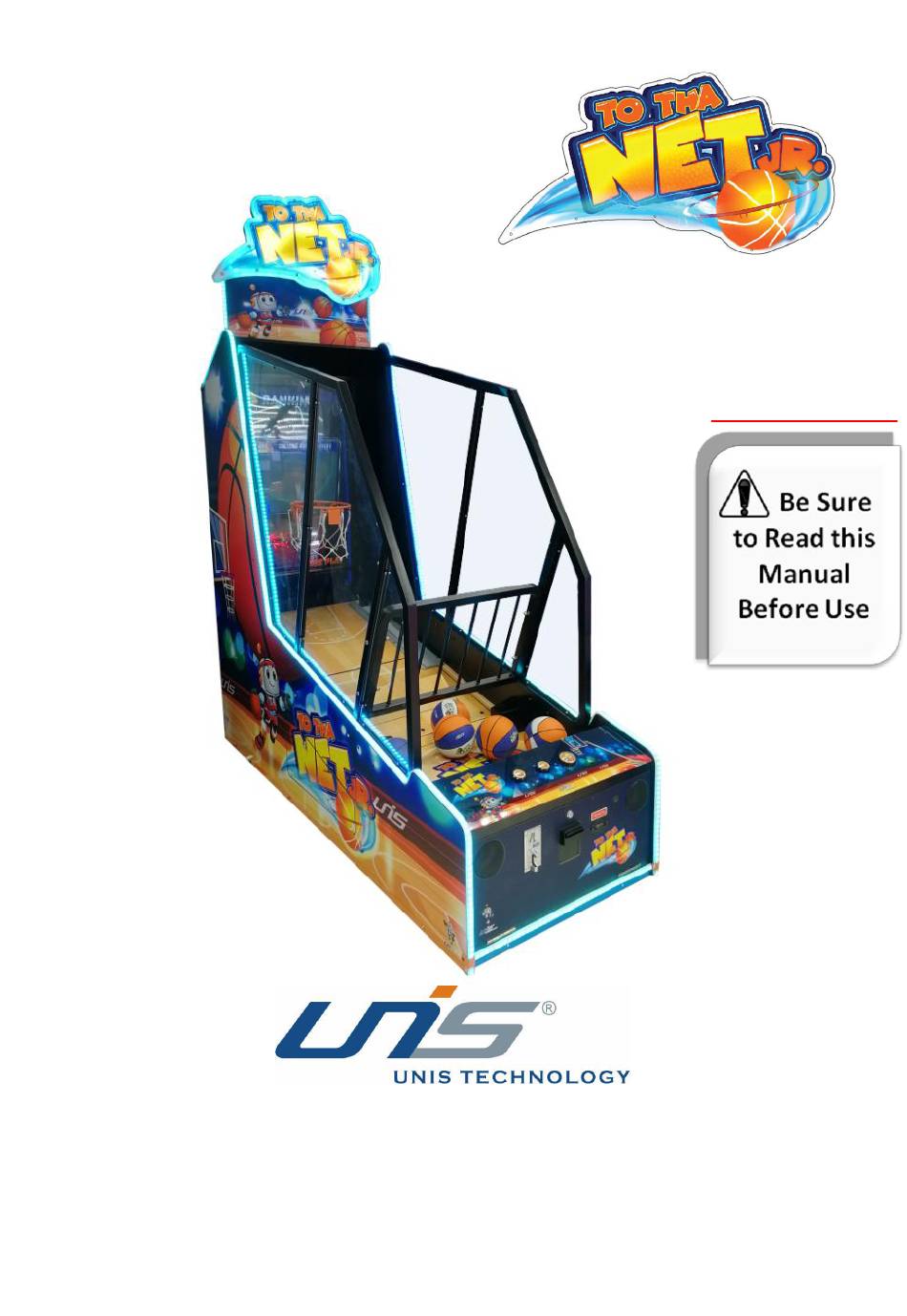

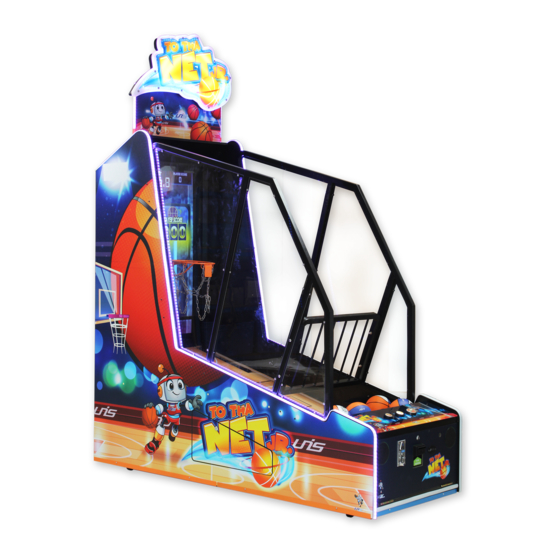

  • Page 1 IMPORTANT Operation Manual...
  • Page 2 To Tha Net JR. GMP Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    To Tha Net JR. GMP Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ............... 3 1. SPECIFICATIONS ....................5 2. CONTENTS OF THE ACCESSORY KIT ..............7 3. PART NAME ......................8 4. SET UP & INSTALLATION ..................9 5. HOW TO PLAY ...................... 12 6.

  • Page 4: Important Safety Instructions

    To Tha Net JR. GMP Manual Thank you for purchasing To Tha Net JR.. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 To Tha Net JR. GMP Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    To Tha Net JR. GMP Manual 1. SPECIFICATIONS Rated power supply: AC110V~ 50/60Hz; AC220-240V~ 50/60Hz Min. Power consumption: 200W Max. Power consumption: 230W Dimension: W32.13×D80.63×H103.00 in W816 ×D2048 ×H2616 mm Weight：Approximately 474lb/215kg Part No: T149 Model No: C-580 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.
  • Page 7 To Tha Net JR. GMP Manual Transport dimension: W30.83×D80.63×H77.60 in W783 ×D2048 ×H1971 mm Note: Game specifications are subject to change without notice. 09/28/2019...

  • Page 8: Contents Of The Accessory Kit

    To Tha Net JR. GMP Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Part No. Name SPEC Picture 1 T149-801-000 Manual 2 T149-802-000 171 Key 3 T149-803-000 171B Key 171B 4 T149-804-000 Power cord 10A/250V-1.8M...

  • Page 9: Part Name

    To Tha Net JR. GMP Manual 3. PART NAME Key Components Marquee Monitor Hoop Assembly Ball Gate Speaker Ticket Dispenser Ready for DBV Coin Mechanism 09/28/2019...

  • Page 10: Set Up & Installation

    To Tha Net JR. GMP Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid. ...
  • Page 11 To Tha Net JR. GMP Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in/500mm Service area NOTICE Your unit must be leveled to operate properly. 4.4 Voltage Conversion (110V convert to 220V) Step 1 Power off the machine.
  • Page 12 To Tha Net JR. GMP Manual 4.5 Machine Installation Before processing with assembly assure you have the following tools. Name Picture Phillips screwdriver Step 1 Utilize Phillips screwdriver to remove the Cover plate to plug the connector. Fix back the Cover plate. Step 2 Utilize Phillips screwdriver tighten 4 screws to fix the Marquee to the cabinet.

  • Page 13: How To Play

    To Tha Net JR. GMP Manual 5. HOW TO PLAY 1. Insert coins/cash or swipe card, choose the level and press START. 2. Round 1: Shoot balls in limited time; reach the target score to pass the stage. 3. Round 2: Shoot balls to reach the target score to pass the stage. (The field goal percentage and speed will influence the score you get every time.) 4.
  • Page 14 To Tha Net JR. GMP Manual 5. Round 4: There is a scoring area with different points. When you field the goal, you get the point in the scoring area where the basketball in the monitor is on. 6. Ranking List shows the player’s ranking, challenge stage and score. Multiplayer mode limited: The lower left corner shows the real-time rankings which makes the game more exciting.

  • Page 15: Game Option

    To Tha Net JR. GMP Manual 6. GAME OPTION 6.1 Adjustment button instruction Open the coin door and there is a meter panel. Press Settings button to enter into the setting menu. Settings Test Reset 6.2 Main Menu 6.2.1 Basic Setting Basic Setting Free Play OFF_ON...
  • Page 16 To Tha Net JR. GMP Manual 6.2.3 Input Test 6.2.4 Output Test Easy Btn Light Coin Mechanism Hard Btn Light Hoop Sensor Confirm Button Light Easy Btn Back Hard Btn Confirm Button 6.2.6 Date/Time Setting Back Year Month 6.2.5 Game Reset Hour(24) Factory Restore NO_YES...

  • Page 17: Troubleshooting

    Turn on power SW again. If appeared Circuit protector make power SW again and again, machine has Power off in off state. anomaly. Please contact with UNIS Service. Out of ticket. Add ticket and press reset button No ticket Remove the jammed tickets and press Ticket jamming.
  • Page 18 To Tha Net JR. GMP Manual If you see following error signs showing on the display, please try the recommended action. Display Possible Cause Recommended action Check and reconnect the The connection part of the loose ports of the PC or IO IO board and PC are loose.
  • Page 19 To Tha Net JR. GMP Manual 7.2 System Recovery Operation (NOTE: Do not disconnect power during this process.) 1. Turn off the game. Remove the recovery stick from the machine. (Note: This process may take up to 60 minutes) Insert the recovery stick into the port at the back of the computer.

  • Page 20: Maintenance & Inspection

    To Tha Net JR. GMP Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.

  • Page 21: Overall Construction

    To Tha Net JR. GMP Manual 9. OVERALL CONSTRUCTION 9.1 Main Cabinet Part No. Code No. Name 1 T149-614-000 410000021 Ball 2 T149-109-000 20211905A029 Block ball fence 3 T149-117-000 20211905A007 Cover plate 4 T149-101-000 20611905A010 Monitor plastic 5 T149-108-000 20211905A001 Pressing plate 6 T149-102-000 20211905A034 Monitor plastic pressing plate 6 7 T149-104-000 20611905A002...
  • Page 22 To Tha Net JR. GMP Manual Part No. Code No. Name 13 T149-170-000 26000055000 Dongle bracket 14 T149-171-000 26000064000 Recovery stick bracket 15 T149-114-000 20211905A005 Side T-molding 16 T149-160-000 26000001000D Power supply bracket 17 T149-501-000 20311905A030 Electrical component mounting board 1 18 T149-118-000 20211905A031 Adapter fixing plate 19 T149-161-000 26000007000...
  • Page 23 To Tha Net JR. GMP Manual 9.2 Cabinet Frame Part No. Code No. Name 1 T149-126-000 20211905A013 Top fixing plate 2 T149-511-000 20311905A015 Top board 3 T149-173-000 26000067000-W Plastic joint 4 T149-512-000 20311905A016 Back top board 5 T149-514-000 20311905A018 Monitor frame 6 T149-513-000 20311905A017 Back door board 7 T149-127-000 20211905A033...
  • Page 24 To Tha Net JR. GMP Manual Part No. Code No. Name T149-162-000 26000008000 2.5'' leveller T149-163-000 26000010000 2.5'' leveller bracket T149-603-000 25501000047 2.5'' caster 18 T149-502-000 20311905A006 Light bottom mounting plate 1 19 T149-601-000 26300000011 Hinge 20 T149-604-000 26302000004 Chain 21 T149-503-000 20311905A007 Front board 22 T149-602-000 25300171001...
  • Page 25 To Tha Net JR. GMP Manual Part No. Code No. Name 1 T149-530-000 20311905A026 Marquee board 2 T149-531-000 20311905A027 Marquee frame 3 T149-137-000 20611905A012 Light plastic 1 4 T149-702-000 20511905A002 Marquee plastic 5 T149-143-000 20211905A020 Marquee pressing plate 6 T149-141-000 20211905A018 Marquee base bracket 7 T149-532-000 20311905A028 Marquee support board...
  • Page 26 To Tha Net JR. GMP Manual Part No. Code No. Name 1 T149-529-000 20311905A025 Ball gate fixing board 1 2 T149-528-000 20311905A024 Ball gate support board 1 3 T149-129-000 20211905A036 Reinforcing bracket 9.5 Sliding Case Assembly Refer to next page. Part No.
  • Page 27 To Tha Net JR. GMP Manual Part No. Code No. Name 1 T149-129-000 20211905A036 Reinforcing bracket 2 T149-524-000 20311905A004 Sliding case top board 3 T149-172-000 26000067000 Plastic joint 4 T149-525-000 20311905A005 Sliding case side board 2 5 T149-522-000 20311905A002 Sliding case base board 6 T149-527-000 20311905A032 PC mounting board 7 T149-523-000 20311905A003...
  • Page 28 To Tha Net JR. GMP Manual Part No. Code No. Name 1 T149-148-000 20611905A003 Plastic foam 1 2 T149-145-000 20211905A022 Frame 3 T149-149-000 20611905A004 Plastic foam 2 4 T149-146-000 20611905A006 Hoop plastic 5 T149-150-000 20211905A024 Hoop mounting plate 6 T149-147-000 20211905A023 Hoop 9.7 Side Fence Assembly Part No.
  • Page 29 To Tha Net JR. GMP Manual 9.8 Coin Box Assembly Part No. Code No. Name 1 T149-157-000 20211905A026 Outer coin box 1 2 T149-156-000 20211905A025 Inner coin box 1 3 T149-611-000 25300172001 171B lock 09/28/2019...
  • Page 30 To Tha Net JR. GMP Manual 9.9 Decals Part No. Code No. Name 1 T149-702-000 20511905A002 Marquee plastic 2 T149-704-000 20511905A004 L side decal 3 T149-707-000 20511905A007 Button decal 4 T149-701-000 20511905A001 Control panel plastic 1 5 T149-717-000 20511904016 DBV decal 6 T149-706-000 20511905A006 Front door decal 7 T149-720-000 25600000108 Ticket out decal...
  • Page 31 To Tha Net JR. GMP Manual Part No. Code No. Name 1 T149-716-000 20511905A016 Counter label 2 T149-719-000 20511904018 AAMA label 3 T149-724-000 25600000037 High voltage label(L) 1 4 T149-726-000 25600000067A Warning label 5 T149-725-000 25600000042A Service label 6 T149-731-000 25600000095A Service label(L) 7 T149-723-000 25600000036 High voltage label(S) 2 8 T149-718-000 20511904017...
  • Page 32 To Tha Net JR. GMP Manual 9.10 Electrical Components Part No. Code No. Name 1 T149-425-000 21501000041 Hoop sensor T149-408-000 22801000085 Speaker T149-164-000 26000027000 Speaker net 3 T149-433-000 22301000002 Coin mechanism 4 T149-432-000 23100000005 Ticket dispenser T149-426-000 22401030006 Small button T149-428-000 22604000006 Micro switch T149-429-000 22003000018...
  • Page 33 To Tha Net JR. GMP Manual Part No. Code No. Name 12 T149-434-000 22002015021 BG5050RGB light strip 2200mm 13 T149-434-000 22002015021 BG5050RGB light strip 1400mm 14 T149-434-000 22002015021 BG5050RGB light strip 740mm 15 T149-443-000 22003080034 5630 light 16 T149-447-000 21503000053 Sensor(Send, 2pins) 17 T149-446-000 21503000052 Sensor(Receive, 3pins) Part No.
  • Page 34 To Tha Net JR. GMP Manual Part No. Code No. Name 1 T149-415-000 22601000005 Rocker switch 1 T149-413-000 21902000006 Fuse holder 1 T149-414-000 21901000012 Fuse 3 T149-445-000 23302000001 Network port 1 4 T149-412-000 23201000001A Filter Part No. Code No. Name 1 T149-420-000 23000000005 Counter T149-437-000 22403000001...
  • Page 35 To Tha Net JR. GMP Manual Part No. Code No. Name Qty T149-418-000 22702010025 Fan T149-419-000 22702000010 Fan net 6 Part No. Code No. Name Chain T149-401-000 26503020027 Micro switch T149-607-000 22604000007 09/28/2019...
  • Page 36 To Tha Net JR. GMP Manual Part No. Code No. Name 1 T149-436-000 21603000027 AC adapter 2 T149-421-000 29791300001 M3 mainboard 3 T149-440-000 22803010011 Amplifier 2.0 4 T149-417-000 21714000148D Fuse board(Green holder) 1 5 T149-612-000 23407010007 Stepping motor 6 T149-403-000 21602000114 Power supply(12V) 7 T149-402-000 21602000121 Power supply(24V)

  • Page 37: Wiring Diagram

    To Tha Net JR. GMP Manual 10. WIRING DIAGRAM Noise filter 09/28/2019...
