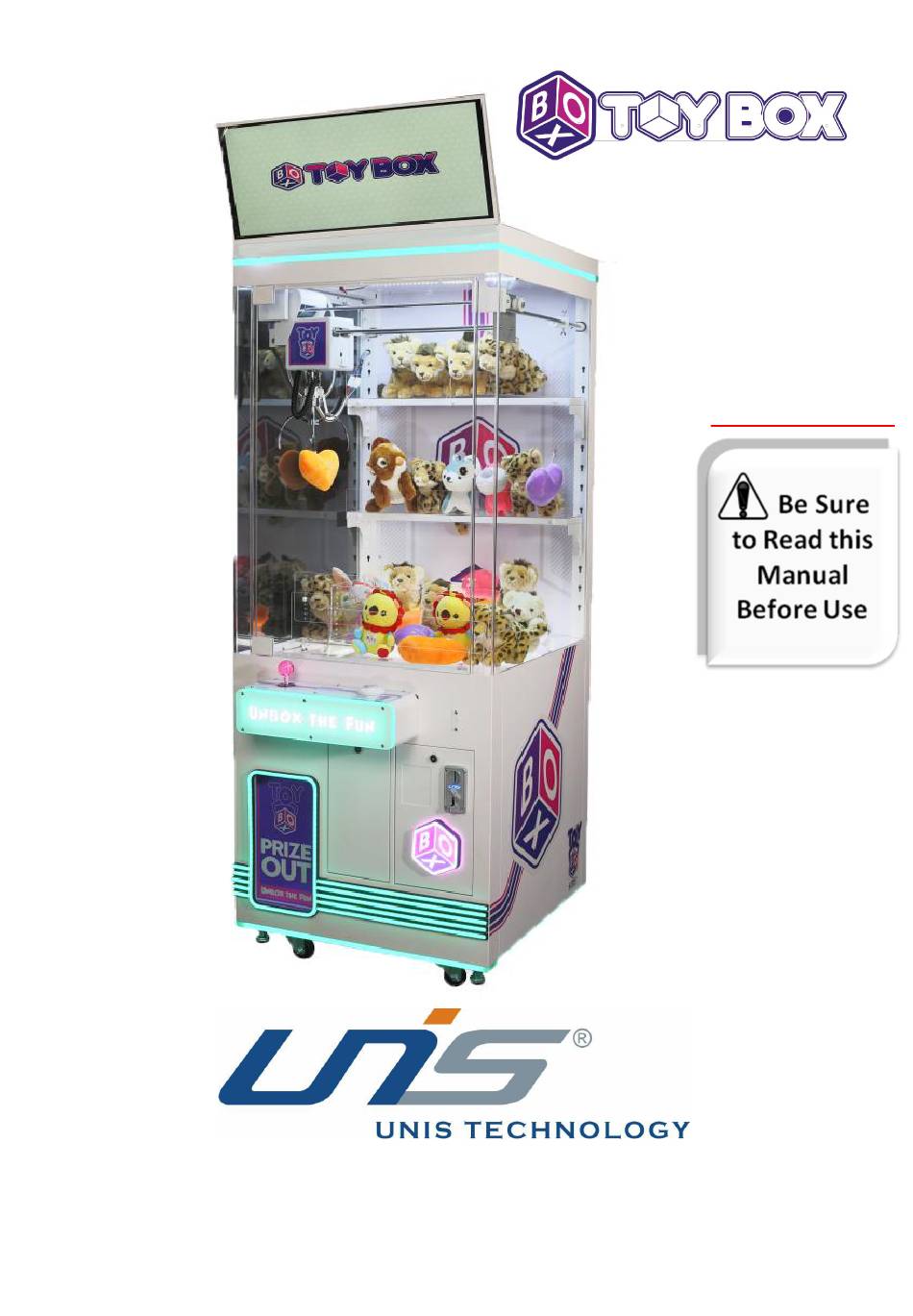

  • Page 2 SKNJ Toy Box LCD GMP Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com www.unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    SKNJ Toy Box LCD GMP Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ................ 3 1. SPECIFICATIONS ...................... 5 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. LOCATION OPERATION INSTRUCTIONS ..............11 6.

  • Page 4: Important Safety Instructions

    SKNJ Toy Box LCD GMP Manual Thank you for purchasing Toy Box LCD GMP. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 SKNJ Toy Box LCD GMP Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors.

  • Page 6: Specifications

    SKNJ Toy Box LCD GMP Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; Min. Power consumption: 165W Max. Power consumption: 280W Dimension: H95.48×W32.34×D38.11 in H2425.4×W821.6 ×D968 mm Weight：Approximately 350.53 lb/159 KG Model No: T-432 Part No.: T166 NOTICE : After turning off the game, please wait at least 1 minute before restarting again.

  • Page 7: Contents Of The Accessory Kit

    SKNJ Toy Box LCD GMP Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Following accessories Part No. Code No. Name/SPEC Picture Power cord T166-0205-00 2.33.01.018024 3×18AWG 3M Fuse T166-0206-00 2.19.01.000012 Φ5×20mm T5A/250VAC...

  • Page 8: Part Name

    SKNJ Toy Box LCD GMP Manual 3. PART NAME Key Components Monitor Crane Button Joystick Coin mechanism Prize Out Slot 01/02/2024...

  • Page 9: Set Up & Installation

    SKNJ Toy Box LCD GMP Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
  • Page 10 SKNJ Toy Box LCD GMP Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in Service area Play area NOTICE Your unit must be leveled to operate properly.

  • Page 11: Machine Installation

    SKNJ Toy Box LCD GMP Manual 4.4 Machine Installation Step 1 Install Monitor to the top of the cabinet. Utilize screws to secure. Connect the connectors. Finish! 4.5 Card Reader Installation Safety Notice Take precaution to assure that all wiring voltages are confirmed prior to installation of card reader.

  • Page 12: Location Operation Instructions

    SKNJ Toy Box LCD GMP Manual 4.6 Voltage Conversion Step 1 Power off the machine. Locate the Power supply. Step 2 Toggle the Power supply and PC switch to 115V or 230V according to your need. 5. LOCATION OPERATION INSTRUCTIONS 5.1 First Power On Operation...

  • Page 13: How To Play

    SKNJ Toy Box LCD GMP Manual 6. HOW TO PLAY 6.1 Insert coins or tap/swipe card to start. 6.2 Use the joystick to move the claw over the desired prize & press “TAP” button to grab within the time limit.

  • Page 14: Game Option

    SKNJ Toy Box LCD GMP Manual 7. GAME OPTION 7.1 Adjustment button instruction Open the coin door and there is a meter panel. Long press Service button for 5 seconds to enter the setting menu. Utilize Joystick to control setting menu UP/DOWN/LEFT/RIGHT. Press button to confirm&...
  • Page 15 SKNJ Toy Box LCD GMP Manual 7.2.3 Crane Setup Options Adjustable Range Default Description Set the voltage at the bottom of the claw BOM Volt. 0.1-50.0 to grab the prize and when rising. Sets the voltage of the claw claw after MID Volt 0.1-50.0...
  • Page 16 SKNJ Toy Box LCD GMP Manual stage OFF: The claw cannot be closed by pressing the button again before it lower to the bottom. Air Grip ON/OFF ON: The claw can be closed by pressing the button again before it lower to the...
  • Page 17 SKNJ Toy Box LCD GMP Manual 7.2.5 Light Setup Options Adjustable Range Default Description LED Color 0-255 Standby light color S-MO/E-MO/M-CO/ LED Mode F-RU/F-FL/F-CO/F- STAT Standby light flash mode MO/Start Win Color 0-255 Winning light color FLK/FSG/STA/SLK Win Color Winning light flash mode...
  • Page 18 SKNJ Toy Box LCD GMP Manual 7.2.7 Factory Test Options Status Description Intelligt Auto Test: Long press button for 10s to Test exit 1. F-B Test 2. L-R Test Console 3. U-D Test Test 4. Claw Test 5. Back and Exit...
  • Page 19 SKNJ Toy Box LCD GMP Manual 7.3 How To Set “Play To Win Every Time” Feature Please change below parameters in “Prize Setup” option Prize Setup Options Parameter Difficulty Prize No. 0000 Disp Win TOK PRIC 0001 WIN PRIC 0001...

  • Page 20: Troubleshooting

    SKNJ Toy Box LCD GMP Manual 8. TROUBLESHOOTING 8.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly fault Contact with UNIS Service.
  • Page 21 SKNJ Toy Box LCD GMP Manual Display Possible Cause Recommended action Check and reconnect the Crane Connector became loose during transport. connector. Error 02 The crane track is bent and stuck. Fix track. (Check Back Crane motor is faulty. Replace Crane motor.
  • Page 22 SKNJ Toy Box LCD GMP Manual 8.2 Mainboard Update Instructions Notice: Please Contact UNIS Service for latest software. Step 1 Power off the machine. Open the back bottom door. Loosen screws to rmeove mainboard. Step 2 Decompress HIDBootloader.zip. Double click to open the software.
  • Page 23 SKNJ Toy Box LCD GMP Manual Step 2 Connect cable to the PC. Step 3 Connect cable to the Mainboard MCU port while pressing Test button. Cable port Press button when connect PC 01/02/2023...
  • Page 24 SKNJ Toy Box LCD GMP Manual Step 4 Locate PC. Select “打开固件”(Open Software). Select latest software(Bin. format). Note: Picture software is only for reference. 01/02/2024...
  • Page 25 SKNJ Toy Box LCD GMP Manual Step 5 Select “升级固件” (Update Software) to update mainboard. Step 6 When you see “” (Success), Update finish! Unplug the mainboard. Step 7 Install Mainboard back to the machine. Power on the machine. Finish!
  • Page 26 SKNJ Toy Box LCD GMP Manual 8.3 Display Advertisement Operation Please note that the advertisement video format has to be MP4. Please prepare PC and a memory stick. Step 1 Plug memory stick to the PC. Step 2 Click Memory stick folder. Click “Adplayer”.
  • Page 27 SKNJ Toy Box LCD GMP Manual Step 5 Place Ad. file to the folder. Right click to re-write the file name. Note: Name must be Number and unique. All files should be in order. File in order Step 6 Insert memory stick to the Setting panel port. Top of the monitor will be update automatically.

  • Page 28: Maintenance & Inspection

    SKNJ Toy Box LCD GMP Manual 9.MAINTENANCE & INSPECTION 9.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.

  • Page 29: Overall Construction

    SKNJ Toy Box LCD GMP Manual 10. OVERALL CONSTRUCTION 10.1 General Assembly Part No. Code No. Name Version Qty T166-0131-00 203.2.2315.007 Top board T166-0106-00 206.2.2315.025 Top front rear plastic T166-0107-00 206.2.2315.026 Top left rear plastic T166-0111-00 206.2.2315.034 Side glass T166-0122-00 206.2.2315.052...
  • Page 30 SKNJ Toy Box LCD GMP Manual Part No. Code No. Name Version Qty T166-0140-00 2.53.00608835 1408B lock T166-0125-00 206.2.2315.009 Placing bracket front plastic T166-0112-00 206.2.2315.048 Placing bracket plastic T166-0110-00 206.2.2315.047 Placing white plastic T166-0124-00 206.2.2315.007 Prize base plastic T166-0127-00 206.2.2315.011...
  • Page 31 SKNJ Toy Box LCD GMP Manual Part No. Code No. Name Version Qty T166-0120-00 206.2.2315.002 Glass door pad T166-0128-00 206.2.2315.012 Clear rubber shaft 10.2 Wooden Component Part No. Code No. Name Version Qty T166-0132-00 203.2.2315.008 Electrical mounting board T166-0130-00 203.2.2315.006...
  • Page 32 SKNJ Toy Box LCD GMP Manual 10.3 Decals 01/02/2024...
  • Page 33 SKNJ Toy Box LCD GMP Manual Part No. Code No. Name Version Qty T166-0309-00 205.2.2315.310 Crane decal T166-0311-00 205.2.2315.312 Button decal T166-0302-00 205.2.2315.301 Control panel decal T166-0313-00 205.2.2315.314 Remove warning label T166-0306-00 205.2.2315.305 Front decal T166-0304-00 205.2.2315.303 R side decal T166-0305-00 205.2.2315.304...
  • Page 34 SKNJ Toy Box LCD GMP Manual 01/02/2024...
  • Page 35 SKNJ Toy Box LCD GMP Manual Part No. Code No. Name Version Qty T166-0328-00 2.56.00.000036 High voltage label(small) T166-0326-00 205.1.1605A.040 Adapter label T166-0320-00 205.2.2315.321 Mainboard cover decal T166-0316-00 205.2.2315.317 Fuse board instructions label T166-0332-00 2.56.00.000095A Service label(large) T166-0334-00 2.56.00.000067A Service label(yellow) T166-0330-00 2.56.00.000042A...
  • Page 36 SKNJ Toy Box LCD GMP Manual 10.4 Electrical Components Part No. Code No. Name Version 1 T166-0432-00 2.12.03.040036 Monitor 2 T166-0408-00 2.20.02.020029 2835 white light strip 27.55 in (700mm) 3 T166-0412-00 2.66.01.121179 Crane set 4 T166-0427-00 2.24.04.050035 Joystick 5 T166-0411-00 2.24.04.050029 Button 6 T166-0413-00 2.66.01.121180...
  • Page 37 SKNJ Toy Box LCD GMP Manual Part No. Code No. Name Version Qty T166-0402-00 2.16.02.000117 Power supply(12V) T166-0424-00 2.16.02.000174 Power supply(48V) T166-0415-00 2.16.02.000124 Power supply(5V) T166-0404-00 2.16.03.000076 Adapter T166-0420-00 2.17.14.000148D Fuse board T166-0414-00 2.66.01.121181 Mainboard T166-0425-00 2.33.09.000487 Cable set 01/02/2023...
  • Page 38 SKNJ Toy Box LCD GMP Manual Part No. Code No. Name Version Qty T166-0419-00 2.30.00000006 Counter T166-0418-00 2.24.02.050001 Setting menu button(black) T166-0417-00 2.24.02.030002 Setting menu button(green) T166-0421-00 2.26.01.000005 Rocket SW Part No. Code No. Name Version Qty T166-0416-00 4.11.00000002 Tilt alarm...
  • Page 39 SKNJ Toy Box LCD GMP Manual Part No. Code No. Name Version Qty T166-0408-00 2.20.02.020029 2835 white light strip T166-0423-00 2.66.01.121183 Sensor set Part No. Code No. Name Version Qty T166-0406-00 2.32.01000005 Filter www.unistechnology.com 01/02/2023...
