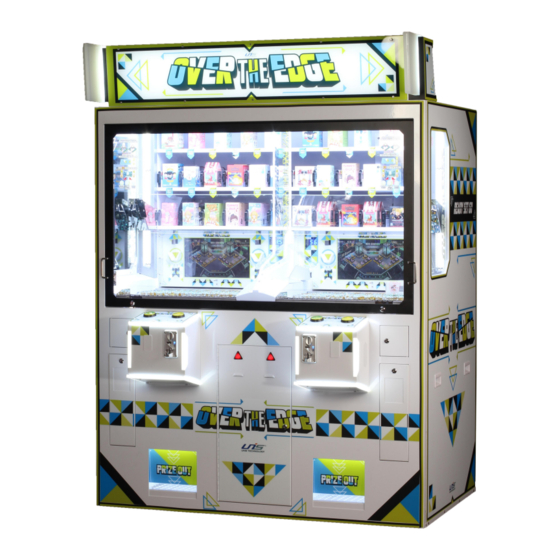

UNIS Over The Edge PLUS Operation Manual
  1. Manuals
  2. Brands
  3. UNIS Manuals
  4. Arcade Game Machines
  5. Over The Edge PLUS
  6. Operation manual

UNIS Over The Edge PLUS Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

PLUS VERSION
IMPORTANT
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Over The Edge PLUS and is the answer not in the manual?

Questions and answers

Leslie Hutcheson
March 18, 2025

Error code 4 - balls jamming on Over the Edge

0
1 comments:
Mr. Anderson
March 18, 2025

Error code 4 for the UNIS Over The Edge PLUS indicates that the ball mechanism is experiencing jamming. The recommended action is to remove the jammed balls.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for UNIS Over The Edge PLUS

Summary of Contents for UNIS Over The Edge PLUS

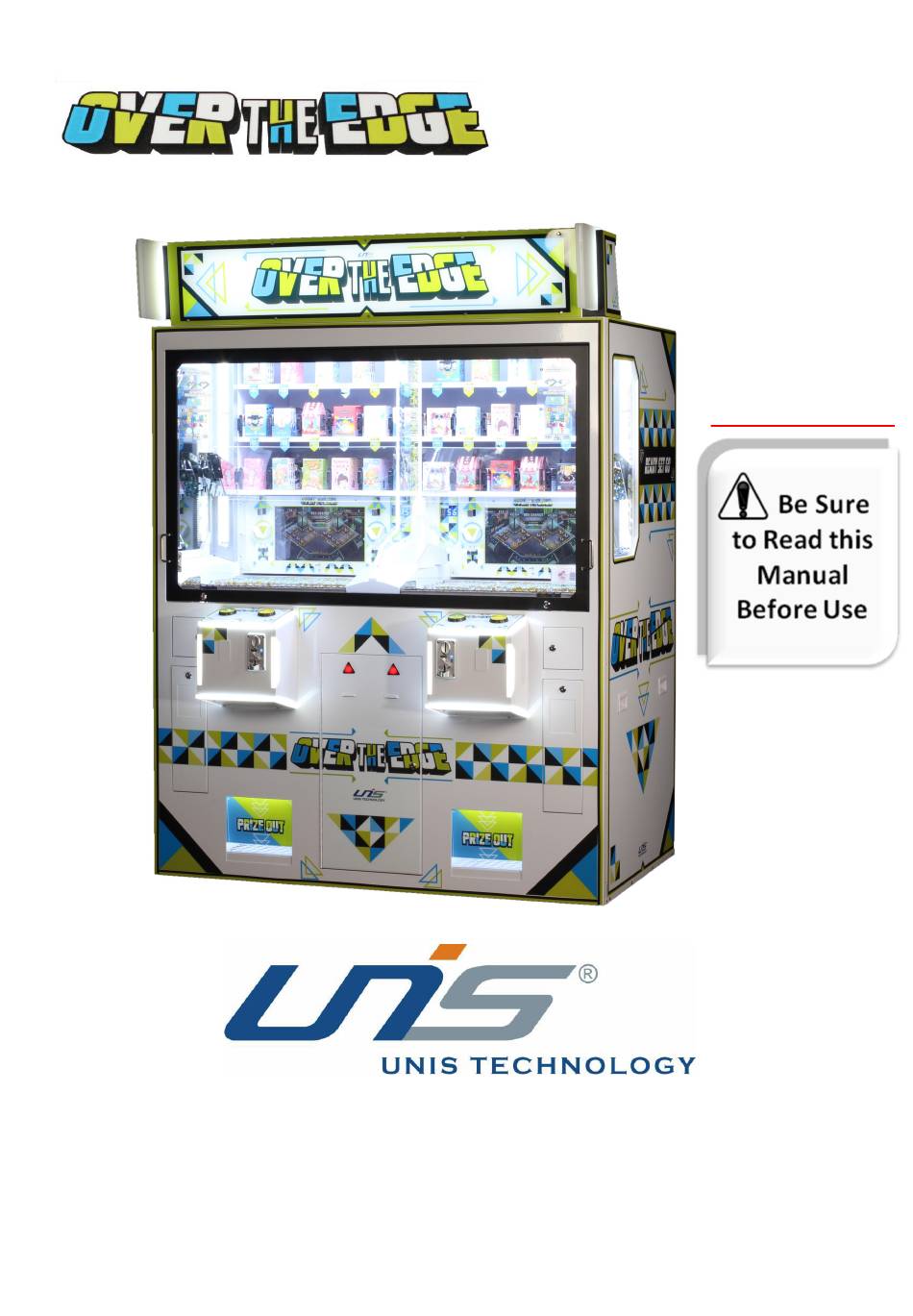

  • Page 1 PLUS VERSION IMPORTANT Operation Manual...
  • Page 2 Over The Edge Plus GMP(Tickets) Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com www.unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    Over The Edge Plus GMP(Tickets) Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ............... 3 1. SPECIFICATIONS ....................5 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. FIRST POWER ON OPERATION ................12 6.HOW TO PLAY .......................

  • Page 4: Important Safety Instructions

    Over The Edge Plus GMP(Tickets) Manual Thank you for purchasing Over The Edge Plus GMP(Tickets). We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Over The Edge Plus GMP(Tickets) Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors.

  • Page 6: Specifications

    Over The Edge Plus GMP(Tickets) Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz; Min. Power consumption: 690W Max. Power consumption: 790W Dimension: H87.40×W62.04 ×D45.34 in H2220 ×W1576×D1151.7 mm Weight：Approximately 661.38lb/300KG Model No: T-396 Part No.: O119 NOTICE : After turning off the game, please wait at least 1 minute before restarting again.

  • Page 7: Contents Of The Accessory Kit

    Over The Edge Plus GMP(Tickets) Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Following accessories Code No. Name/SPEC Picture Fuse(T10A) 1 2.19.01.000030B Ф5×20mm T10A 250VAC (PSE UL) Power cord 2.33.01.010020 3×16AWG 1.8M...

  • Page 8: Part Name

    Over The Edge Plus GMP(Tickets) Manual 3. PART NAME Key Components Marquee Assembly Prize placing position Monitor Button Prize out slot Coin Ticket mechanism dispenser 04/21/2023...

  • Page 9: Set Up & Installation

    Over The Edge Plus GMP(Tickets) Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
  • Page 10 Over The Edge Plus GMP(Tickets) Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in Service area Play area NOTICE Your unit must be leveled to operate properly.
  • Page 11 Over The Edge Plus GMP(Tickets) Manual 4.4 Machine Installation Step 1 Install Marquee assembly to the top of the cabinet. Utilize screws to secure. Marquee assembly Main cabinet Finish! 04/21/2023...
  • Page 12 Over The Edge Plus GMP(Tickets) Manual 4.5 Card Reader Installation Safety Notice Take precaution to assure that all wiring voltages are confirmed prior to installation of card reader. All warranties are void if not properly installed resulting in logic board damage.

  • Page 13: First Power On Operation

    Over The Edge Plus GMP(Tickets) Manual 5. FIRST POWER ON OPERATION Step 1 Press the Channel button and push the baffle to the end of the channel. Step 2 Place the prize box into the channel. Note: Be sure to place close to the left, which close to the sensor.

  • Page 14: How To Play

    Over The Edge Plus GMP(Tickets) Manual 6.HOW TO PLAY 6.1 Insert coins/Tap card to play. Judge from cursor movement in advance. Watch cursor movement find best pat. 6.2 Pat button to release ball from side. 6.3 Hit the Box icon to win reward. Prize drop to the pusher.

  • Page 15: Game Option

    Over The Edge Plus GMP(Tickets) Manual 7. GAME OPTION 7.1 Adjustment button instruction Open the service door and there is a meter Coin counter Ticket counter panel. Press “Bookkeeping/Setting” button for 5 seconds to enter the setting Switch Prize counter menu.
  • Page 16 Over The Edge Plus GMP(Tickets) Manual 7.4 Basic Setting Options Default Adjustable Range Description Free Game Close Open/Close Pats/Game DBV Bonus On/Off Balls/Game 1-20 Coins/Game 1-10 Demo Music Open Open/Close VO Volume 0-100 Voice Over BGM Volume 0-100 Background Music...
  • Page 17 Over The Edge Plus GMP(Tickets) Manual Grid 2&8 Reward Balls Grid 3&7 Reward Balls Grid 4&6 Reward Balls Grid 5 Reward Balls Change Game mode to credit mode. Set how Credits Mode many credits to win 1 Box. (0 mean OFF) Back 7.5.1 Box Payout Details...
  • Page 18 Over The Edge Plus GMP(Tickets) Manual Grid 3&7 Reward Balls Grid 4&6 Reward Balls Grid 5 Reward Balls Credits Mode Back Box Payout: change the difficulty will impact the box payout; or change each other parameter individually (except Tickets/Game) will also impact the box payout accordingly.
  • Page 19 Over The Edge Plus GMP(Tickets) Manual No.7 Prize Channel Small No.8 Prize Channel Small No.9 Prize Channel Small No.10 Prize Channel Medium No.11 Prize Channel Grand No.12 Prize Channel Medium No.13 Prize Channel Small No.14 Prize Channel Small Clean the box Motor...

  • Page 20: Troubleshooting

    Over The Edge Plus GMP(Tickets) Manual 8. TROUBLESHOOTING 8.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly fault Contact with UNIS Service.
  • Page 21 Over The Edge Plus GMP(Tickets) Manual Symptom Possible Cause Recommended action Check whether the drive board Brush voltage wrong. Brush no working and motor voltage is 12V Brush faulty. Replace Brush. Panel sensor no Check hoop sensor light and hoop Hoop sensor faulty.
  • Page 22 Over The Edge Plus GMP(Tickets) Manual Display Possible Cause Recommended action The connector is loose. Plug the connector tightly. 5.Pusher Error Pusher motor faulty. Replace Pusher motor. Pusher sensor faulty. Replace Pusher sensor. The connector is loose. Plug the connector tightly.
  • Page 23 Over The Edge Plus GMP(Tickets) Manual 8.2 System Recovery Operation (NOTE: Do not disconnect power during this process.) 1. Turn off the game. Remove the recovery stick from the holder. 2. Turn game on. Insert the recovery stick into the port of the Android board.

  • Page 24: Maintenance & Inspection

    Over The Edge Plus GMP(Tickets) Manual 9. MAINTENANCE & INSPECTION 9.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.
  • Page 25 Over The Edge Plus GMP(Tickets) Manual Step 2 Utilize Phillips screwdriver to loosen screws. Remove Sensor. Unplug the connector. Step 3 Replace it with new Sensor and install it in reversed order. Screws Sensor 9.4 Prize Box Channel & Motor Replacement Instructions Step 1 Open front glass door.
  • Page 26 Over The Edge Plus GMP(Tickets) Manual 9.5 Ball-Out Motor Replacement Instructions Step 1 Open Back bottom door. Utilize Phillips screwdriver to loosen screws. Remove Balls cover plate. Balls cover plate Screws Step 2 Utilize Phillips screwdriver to loosen screws. Remove Balls front plate.
  • Page 27 Over The Edge Plus GMP(Tickets) Manual Step 5 Utilize wrench to loosen screws and remove flange plate. Step 6 Utilize Phillips screwdriver to loosen screws and remove motor. Step 7 Replace it with new motor and install it in reversed order.

  • Page 28: Overall Construction

    Over The Edge Plus GMP(Tickets) Manual 10. OVERALL CONSTRUCTION 10.1 General Assembly Part No. Code No. Name Version Qty O119-0003-00 JH8.1326.093 Blanking plate V1.1 O119-0004-00 JH8.1326.094 Coin mech. blanking plate V1.1 04/21/2023...
  • Page 29 Over The Edge Plus GMP(Tickets) Manual 10.2 Glass Door Part No. Code No. Name Version Qty O119-0301-00 JH6.1326.005 Glass door frame V1.1 O119-0302-00 JH8.1326.115 Glass door upper pressing V1.1 O119-0303-00 JH8.1326.114 Glass door L pressing V1.1 O119-0310-00 JH8.1326.114 Glass door R pressing V1.1...
  • Page 30 Over The Edge Plus GMP(Tickets) Manual 10.3 Control Panel Assembly Part No. Code No. Name Version Qty O119-0401-00 JH6.1326.006 Control panel frame V1.1 O119-0402-00 JH6.1326.007 Control panel upper plate V1.1 O119-0403-00 JH8.1326.095 Control panel base plate V1.1 10.4 Side Ball Out Assembly Part No.
  • Page 31 Over The Edge Plus GMP(Tickets) Manual 10.5 Coin Box Assembly Part No. Code No. Name Version Qty O119-1901-00 JH6.1326.022 Coin chute bracket V1.1 O119-1902-00 JH6.1326.023 Coin box bracket V1.1 O119-1903-00 JH6.1326.024 Coin inner box V1.1 O119-1904-00 JH8.1326.112 Meter bracket V1.1 O119-0307-00 2.51.02.040019...
  • Page 32 Over The Edge Plus GMP(Tickets) Manual 10.7 L Panel Assembly Part No. Code No. Name Version Qty O119-0801-00 JH6.1326.016 L monitor panel plate V1.1 O119-0802-00 JH8.1313.119 Swing ball base plate V1.1 O119-0803-00 JH8.1313.123 Swing ball motor base V1.1 O119-0804-00 JH6.1313.022 Short swing arm plate V1.1...
  • Page 33 Over The Edge Plus GMP(Tickets) Manual 10.8 R Panel Assembly Part No. Code No. Name Version Qty O119-0901-00 JH6.1326.016 R monitor panel plate V1.1 O119-0802-00 JH8.1313.119 Swing ball base plate V1.1 O119-0803-00 JH8.1313.123 Swing ball motor base V1.1 O119-0804-00 JH6.1313.022 Short swing arm plate V1.1...
  • Page 34 Over The Edge Plus GMP(Tickets) Manual 10.9 Ball-Out Assembly Part No. Code No. Name Version Qty O119-1001-00 JH6.1326.032 Ball out bracket V1.1 O119-1002-00 JH8.1326.165 Ball out chute plate 1 V1.1 O119-1003-00 JH8.1326.166 Ball out chute plate 3 V1.1 O119-1004-00 JH8.1326.158 Ball out bracket front plate V1.1...
  • Page 35 Over The Edge Plus GMP(Tickets) Manual 10.10 Pusher Assembly Part No. Code No. Name Version Qty O119-1101-00 JH8.1313.125 Pusher motor plate V1.1 O119-1102-00 JH8.1303.214 Pusher sensor plate V1.1 O119-1103-00 JH8.1313.145 Pusher sliding wheel slot V1.1 O119-1104-00 JH6.1313.025 Pusher rod plate V1.1...
  • Page 36 Over The Edge Plus GMP(Tickets) Manual 10.11 L Side Light Plastic Part No. Code No. Name Version Qty O119-1201-00 JH8.1326.105 L side light plate V1.1 O119-1202-00 JH8.1326.107 Side light support plate V1.1 O119-1203-00 JH8.1326.106 Inner net plate V1.1 O119-1204-00 JH8.1313.172 Long light strip plate V1.1...
  • Page 37 Over The Edge Plus GMP(Tickets) Manual 10.12 R Side Light Plastic Part No. Code No. Name Version Qty O119-1301-00 JH8.1326.105 R side light plate V1.1 O119-1202-00 JH8.1326.107 Side light support plate V1.1 O119-1203-00 JH8.1326.106 Inner net plate V1.1 O119-1204-00 JH8.1313.172 Long light strip plate V1.1...
  • Page 38 Over The Edge Plus GMP(Tickets) Manual 10.13 Cabinet Assembly www.unistechnologycom 04/21/2023...
  • Page 39 Over The Edge Plus GMP(Tickets) Manual Part No. Code No. Name Version Qty O119-0101-00 JH6.1326.024b Front door board plate V1.1 O119-0102-00 JH8.1326.103 Side glass fixing plate 1 V1.2 O119-0103-00 JH8.1326.104 Side glass fixing plate 2 V1.2 O119-0104-00 JH8.1261.452 Power switch fixing plate V1.1...
  • Page 40 Over The Edge Plus GMP(Tickets) Manual 10.14 L Prize-Out Assembly Part No. Code No. Name Version Qty O119-0501-00 JH6.1326.020 L Prize-Out bracket V1.1 O119-0502-00 JH8.1326.097 Prize-out light plate V1.1 O119-0503-00 JH8.1326.118 Prize-out motor plate V1.1 O119-0504-00 JH8.1326.138 L Prize-out sensor plate V1.1...
  • Page 41 Over The Edge Plus GMP(Tickets) Manual 10.15 R Prize-Out Assembly Part No. Code No. Name Version Qty O119-1801-00 JH6.1326.020 R Prize-Out bracket V1.1 O119-0502-00 JH8.1326.097 Prize-out light plate V1.1 O119-0503-00 JH8.1326.118 Prize-out motor plate V1.1 O119-0504-00 JH8.1326.138 L Prize-out sensor plate V1.1...
  • Page 42 Over The Edge Plus GMP(Tickets) Manual 10.16 Decals 04/21/2023...
  • Page 43 Over The Edge Plus GMP(Tickets) Manual Part No. Code No. Name Version Qty O119-1615-00 205.8.22128.109 Marquee side decal V1.1 O119-1631-00 205.8.22128.102 Marquee decal V1.1 O119-1632-00 205.8.22128.103 L monitor panel plastic V1.1 O119-1633-00 205.8.22128.104 R monitor panel plastic V1.1 O119-1617-00 205.8.22128.112 Front frame plastic V1.1...
  • Page 44 Over The Edge Plus GMP(Tickets) Manual 04/21/2023...
  • Page 45 Over The Edge Plus GMP(Tickets) Manual Part No. Code No. Name Version Qty O119-1612-00 205.2.2248.032 Placing notice decal V1.1 O119-1609-00 205.2.2248.029 Medium prize label V1.1 O119-1610-00 205.2.2248.030 Small prize label V1.1 O119-1608-00 205.2.2248.028 Top prize label V1.1 O119-1642-00 2.56.00.000037 High voltage label(L) V1.1...
  • Page 46 Over The Edge Plus GMP(Tickets) Manual 10.17 Electrical Components Part No. Code No. Name Version Qty O119-1517-00 2.16.02.000105 Power supply(24V) V1.1 O119-1516-00 2.16.02.000117 Power supply(12V) V1.1 O119-1504-00 2.19.02.000020 Wiring bar V1.1 O119-1512-00 2.32.01000010 Filter V1.1 O119-1405-00 2.34.04.010086 Ball-out motor V1.1 Part No.
  • Page 47 Over The Edge Plus GMP(Tickets) Manual Part No. Code No. Name Version Qty O119-1714-00 208.8.22128.014 8811 light control board V1.1 O119-1702-00 208.8.22128.002 Mainboard V1.1 O119-1703-00 208.8.22128.003 Drive board V1.1 Part No. Code No. Name Version Qty O119-1704-00 208.8.22128.004 Dual-road drive board V1.1...
  • Page 48 Over The Edge Plus GMP(Tickets) Manual Part No. Code No. Name Version Qty O119-1713-00 208.8.22128.013 Motor board V1.1 O119-1405-00 2.34.04.010086 Ball-out motor V1.1 O119-1407-00 2.51.06.02.5043 Pipe V1.1 Part No. Code No. Name Version Qty O119-1713-00 208.8.22128.013 Motor board V1.1 O119-1524-00 2.20.02.020092 2811 light strip V1.1 14.5...
  • Page 49 Over The Edge Plus GMP(Tickets) Manual Part No. Code No. Name Version Qty O119-1711-00 208.8.22128.011 Prize slot sensor V1.1 Part No. Code No. Name Version Qty O119-1509-00 2.30.00000005 Meter V1.1 O119-1513-00 2.24.02.070012 Green button V1.1 O119-1510-00 2.26.01.040005 Power SW button V1.1...
  • Page 50 Over The Edge Plus GMP(Tickets) Manual Part No. Code No. Name Version Qty O119-1709-00 208.8.22128.009 Ball-out sensor V1.1 O119-1707-00 208.8.22128.007 0.8'' display V1.1 O119-1701-00 208.8.22128.001 Android board V1.1 O119-1705-00 208.8.22128.005 Hook sensor V1.1 O119-1712-00 208.8.22128.012 U type light board V1.1 O119-1523-00 2.12.01.000042...
  • Page 51 Over The Edge Plus GMP(Tickets) Manual Part No. Code No. Name Version Qty O119-1713-00 208.8.22128.013 Motor board V1.1 O119-1404-00 2.34.04.010085 12V10R motor V1.1 O119-1706-00 208.8.22128.006 Slot sensor V1.1 Part No. Code No. Name Version Qty O119-1406-00 2.34.04.010092 Track motor V1.1 O119-1710-00 208.8.22128.010...
  • Page 52 Over The Edge Plus GMP(Tickets) Manual Part No. Code No. Name Version Qty O119-1409-00 2.34.04.010093 DC motor V1.1 Part No. Code No. Name Version Qty O119-1519-00 2.20.02.020084 2835 light strip V1.2 04/21/2023...
  • Page 53 Over The Edge Plus GMP(Tickets) Manual Part No. Code No. Name Version Qty O119-1518-00 2.17.04.000264 Long light board V1.1 Part No. Code No. Name Version Qty O119-1514-00 2.28.01.000016 Speaker V1.1 04/21/2023...
  • Page 54 Over The Edge Plus GMP(Tickets) Manual Part No. Code No. Name Version Qty O119-1518-00 2.17.04.000264 Long light board V1.1 O119-1523-00 2.12.01.000042 15.6'' monitor V1.1 O119-1505-00 2.24.01.000005 Button V1.1 O119-1503-00 2.23.01000002 Coin mechanism V1.1 O119-1501-00 2.31.00000005 Ticket dispenser V1.1 O119-1502-00 297.9.0700002 Ticket converted board V1.1...
  • Page 56 1P Out of tik light GND1 12V1 Out of tik btn. 12V1 GND2 12V2 DC12-1(page 1) 12V2...
  • Page 58 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P 5264-3P...
