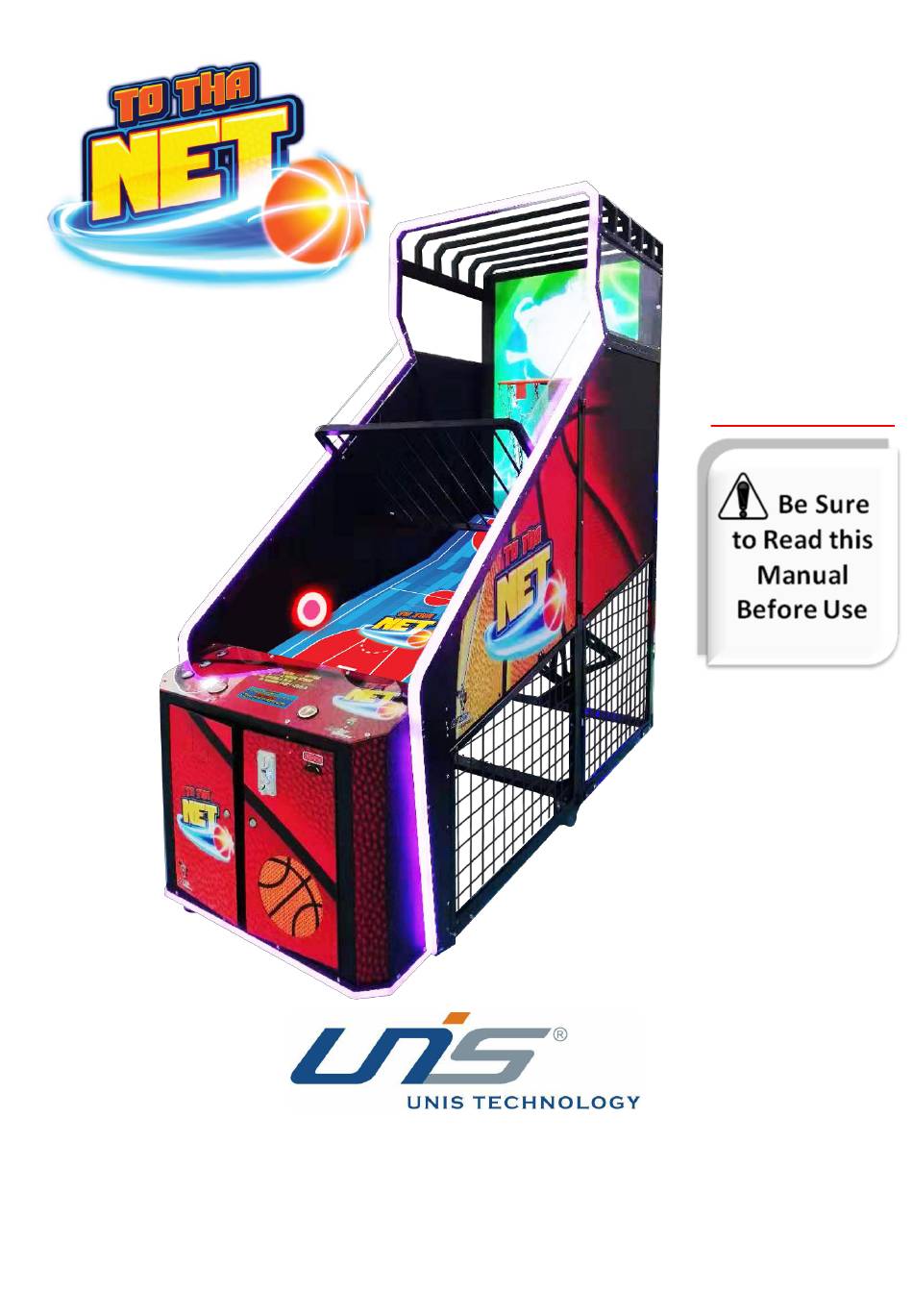

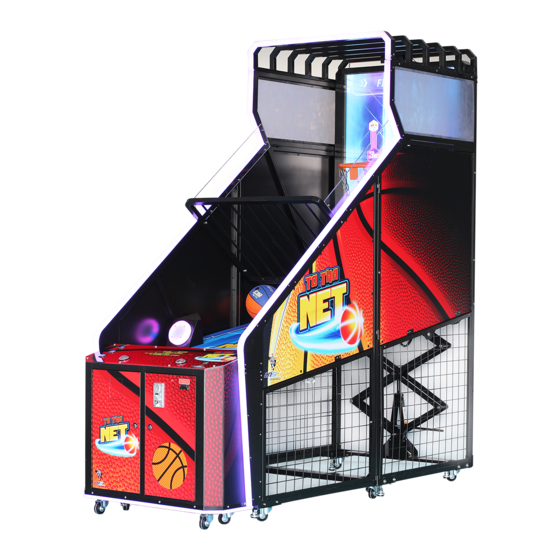

  • Page 1 IMPORTANT Operation Manual...
  • Page 2 To Tha Net GMP Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    To Tha Net GMP Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ............... 3 1. SPECIFICATIONS ....................5 2. CONTENTS OF THE ACCESSORY KIT ..............7 3. PART NAME ......................8 4. SET UP & INSTALLATION ..................9 5. HOW TO PLAY ...................... 25 6.

  • Page 4: Important Safety Instructions

    To Tha Net GMP Manual Thank you for purchasing To Tha Net. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 To Tha Net GMP Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors.

  • Page 6: Specifications

    To Tha Net GMP Manual 1. SPECIFICATIONS Rated power supply: AC110V~ 50/60Hz; AC220-240V~ 50/60Hz Min. Power consumption: 300W Max. Power consumption: 350W Dimension: W40.55×D94.10×H111.58 in W1003 ×D2390 ×H2591 mm Weight：Approximately 518lb/235kg Part No: T148 Model No: C-569 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.
  • Page 7 To Tha Net GMP Manual Transport dimension: W42.91 ×D42.28 ×H80.27 in W1090 ×D1082 ×H2039 mm Note: Game specifications are subject to change without notice. 09/16/2019...

  • Page 8: Contents Of The Accessory Kit

    To Tha Net GMP Manual 2. CONTENTS OF THE ACCESSORY KIT 1. Following accessories Open the package and make sure all the items are included: Part No. Code Name SPEC Picture T148-801-000 41440000279A Manual Hexagon socket M4×12 White T148-309-000 20101030005...

  • Page 9: Part Name

    To Tha Net GMP Manual Part No. Code Name SPEC Picture Φ5×20mm T5A 21 T148-433-000 21901000012 Fuse 250VAC T568A-T568A 22 T148-810-000 23302000012 Network cable 23 T148-811-000 21108000078 Network switch 5 ports 3. PART NAME Key Components Monitor Hoop Assembly Speaker...

  • Page 10: Set Up & Installation

    To Tha Net GMP Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
  • Page 11 To Tha Net GMP Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in Service area NOTICE Your unit must be leveled to operate properly.
  • Page 12 To Tha Net GMP Manual 4.5 Machine Installation Before processing with assembly assure you have the following tools. Name Picture Phillips screwdriver Allen wrench Spanner Step 1 Unfold the L front frame and R front frame. Name L front frame...
  • Page 13 To Tha Net GMP Manual Step 2 Turn the Block ball net to the proper position as shown below. Utilize Allen wrench and Spanner to tighten 4 screws and 4 nuts as shown. Name Block ball net Name Hexagon nut...
  • Page 14 To Tha Net GMP Manual Step 3 Utilize Allen wrench to tighten 4 screws to fix the Front middle beam bracket to the cabinet. Front middle Name beam bracket Hexagon socket Name button head screw SPEC M6X40 09/16/2019...
  • Page 15 To Tha Net GMP Manual Step 4 Place the Ball gate assembly as shown. Utilize Allen wrench and Spanner to tighten 6 screws and 6 nuts as shown. Place 6 screw covers on the screws. Ball gate Name assembly Hexagon socket...
  • Page 16 To Tha Net GMP Manual Step 5 Place 6 screw covers on the screws indicated by circles. Name Screw cover SPEC Step 6 Utilize Allen wrench to tighten 4 screws to fix the Front beam to the cabinet. Name Front beam...
  • Page 17 To Tha Net GMP Manual Step 7 Utilize Allen wrench and Spanner to tighten 6 screws and 6 nuts as shown. Place 6 screw covers on the screws. Front ball track Name plate Hexagon socket Name Hexagon nut button head screw...
  • Page 18 To Tha Net GMP Manual Step 8 Utilize Allen wrench to tighten 4 screws to fix the Front lower beam to the cabinet. Name Front lower beam Hexagon socket Name button head screw SPEC M6X40 09/16/2019...
  • Page 19 To Tha Net GMP Manual Step 9 Utilize Allen wrench to tighten 4 screws to fix the Control panel assembly to the cabinet. Control panel Name assembly Hexagon socket Name button head screw SPEC M6X40 09/16/2019...
  • Page 20 To Tha Net GMP Manual Step 10 Utilize Allen wrench to tighten 8 screws to fix the Bottom side light plates to the Control panel assembly. Bottom side Name light plates 1 set Hexagon socket Name button head screw SPEC...
  • Page 21 To Tha Net GMP Manual Step 11 Turn the Step Locate Upper side plates Spanner indicated and upright. take it off. Step 13 Lift up the Monitor assembly to a proper position(the screw holes match well). Turn clockwise to lift up.
  • Page 22 To Tha Net GMP Manual Hexagon socket Name button head screw Step 14 Utilize Allen SPEC M8X40 wrench to tighten 8 screws to fix. Step 15 Utilize Allen wrench to tighten 6 screws and washers to fix the Top net assembly to the cabinet.
  • Page 23 To Tha Net GMP Manual Middle side light Name plates 1 set Step 16 Utilize Allen wrench to tighten 22 screws to fix the Middle side light plates to the cabinet. R side light plate (outer) R side light plate (inner)
  • Page 24 To Tha Net GMP Manual Step 17 Utilize Allen wrench to tighten 10 screws to fix the Side block ball plates to the cabinet. Side block Name ball plate Hexagon socket Name button head screw SPEC M4X16 Name Washer SPEC Φ4...
  • Page 25 To Tha Net GMP Manual Finish! 09/16/2019...
  • Page 26 To Tha Net GMP Manual 5. HOW TO PLAY 1. Insert coins, choose Solo or Multiplayer mode, then choose the level. 2. Shoot the player’s photo. 3. Round 1: Shoot balls in limited time to reach the target score to pass the stage.
  • Page 27 To Tha Net GMP Manual 5. Round 3: Shoot balls and the horizontal line will grow high. If the horizontal line reaches the top line, pass the stage. 6. Round 4: There is a scoring area with different points. When you field the goal, you get the point in the scoring area where the basketball in the monitor is on.

  • Page 28: Game Option

    To Tha Net GMP Manual 6. GAME OPTION 6.1 Adjustment button instruction Open the coin door and there is a meter panel. Press Settings button to enter into the setting menu. Settings Test Reset 6.2.1 Basic Setting 6.2 Main Menu...
  • Page 29 To Tha Net GMP Manual 6.2.3 Input Test Multiplayer Mode Btn Ball Gate Sensor Easy Btn Coin Mechanism Medium Btn Hoop Sensor Up Hard Btn Hoop Sensor Down Ball Gate Solo Play Btn Back 6.2.4 Output Test Lock Coin Multiplayer Mode Btn Light...
  • Page 30 To Tha Net GMP Manual 6.2.6 Date/Time Setting 6.2.7 Bookkeeping Year Player Coins Tickets Payout 0.00 Month NON RESETTABLE POINTS NON RESETTABLE TICKETS Hour(24) Minute Back Second Back&Save Back 6.2.8 Daily Record Date Weekday RunTime Coins Tickets Payout 2014-06-06 Fri 00:01 0.00...
  • Page 31 To Tha Net GMP Manual 6.3 Linking Instruction (Multiplayer Mode) Kit list: Part No. Name Picture Note T148-810-000 Network cable T148-811-000 Network switch For linking 3-16 cabinets Linking Cabinet 1 network cable One cable for one cabinet+1 network switch One cable for one cabinet+2 network switches...
  • Page 32 To Tha Net GMP Manual Step 2 Enter Setting Menu (Refer to 6.1 & 6.2). Select Customized Setting→Linking Mode→ON Select Customized Setting → Cabinet Number → Set a unique number for each(every) cabinet. Basic Setting Linking Mode OFF_ON Customized Setting...

  • Page 33: Troubleshooting

    To Tha Net GMP Manual 7. TROUBLESHOOTING 7.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly fault Contact with UNIS Service.
  • Page 34 To Tha Net GMP Manual If you see following error signs showing on the display, please try the recommended action. Display Possible Cause Recommended action Check and reconnect the The connection part of the loose ports of the PC or IO IO board and PC are loose.
  • Page 35 To Tha Net GMP Manual 7.2 System Recovery Operation (NOTE: Do not disconnect power during this process.) 1. Turn off the game. Remove the recovery stick from the machine. (Note: This process may take up to 60 minutes) Insert the recovery stick into the port at the back of the computer.

  • Page 36: Maintenance & Inspection

    To Tha Net GMP Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.
  • Page 37 To Tha Net GMP Manual 8.3 Monitor Replacement Before processing with assembly assure you have the following tool. Name Picture Phillips screwdriver Step 1 Unplug D1 connector. Step 2 Utilize Phillips screwdriver to loosen 2 screws to remove the Monitor cover plate.
  • Page 38 To Tha Net GMP Manual Step Utilize Phillips screwdriver to loosen 8 screws remove Monitor fixing plates, 2 Top & bottom cover plates and 1 Middle cover plate. Top & bottom cover plate Middle cover plate Monitor fixing plate 09/16/2019...
  • Page 39 To Tha Net GMP Manual Up&down fixing plate Step 5 Utilize Phillips screwdriver to remove 4 screws on 2 Up&down fixing plates to remove the Monitor. Up&down fixing plate 09/16/2019...
  • Page 40 To Tha Net GMP Manual Step 6 Replace with a new Monitor and install in reverse order. 8.4 Ball Gate Motor Replacement Before processing with assembly assure you have the following tools. Name Picture Phillips screwdriver Circlip plier Allen wrench Step 1 Locate the Ball gate assembly under the cabinet.
  • Page 41 To Tha Net GMP Manual Step 2 Utilize Phillips screwdriver to loosen 2 screws to remove Sensor assembly . Step 3 Utilize Allen wrench to loosen 2 screws, utilize Circlip plier to remove the circlip to remove Gate eccentric wheel.
  • Page 42 To Tha Net GMP Manual 8.5 Hoop Sensor Replacement Before processing with assembly assure you have the following tools. Name Picture Phillips screwdriver Spanner Step 1 Locate Hoop assembly. Utilize Phillips screwdriver to loosen 4 screws to remove the tube, unplug Sensor connectors in the slot.

  • Page 43: Overall Construction

    To Tha Net GMP Manual 9. OVERALL CONSTRUCTION 9.1 Frame Assembly Part No. Code No. Name 1 T148-104-000 20211903B001 Front bracket 2 T148-122-000 20211903B015 L block box 3 T148-214-000 20211903B053 L front frame 4 T148-120-000 20211903B060 L front net 5 T148-116-000 20211903B013...
  • Page 44 To Tha Net GMP Manual Part No. Code No. Name 10 T148-118-000 20211903B058 L back net 11 T148-101-000 20211903B052 L back frame 12 T148-110-000 20211903B007 Block ball net 13 T148-206-000 20311903B002 Back ball track plate 14 T148-107-000 20211903B004 Back beam bracket...
  • Page 45 To Tha Net GMP Manual 9.2 Monitor Assembly Part No. Code No. Name 1 T148-132-000 20211903B023 Sensor slot T148-128-000 20211903B020 Hoop T148-129-000 20211903007 Hoop bracket T148-130-000 20211903B021 Sensor bracket 3 T148-187-000 20211903038 Spring rod 4 T148-444-000 21501000041 Sensor 5 T148-185-000 20211903043...
  • Page 46 To Tha Net GMP Manual 9.3 Ball Gate Assembly Part No. Code No. Name 1 T148-207-000 20311903B003 Middle ball track plate 1 2 T148-138-000 20211803018A Ball gate 3 T148-139-000 20211803019 Gate fixing plate 4 T148-141-000 20211603D032 Gate hinge 5 T148-191-000 20211803017A Gate eccentric wheel 1...
  • Page 47 To Tha Net GMP Manual 9.4 Control Panel Assembly Part No. Code No. Name 1 T148-149-000 20211903B035 L door 2 T148-150-000 20211903B036 R door 3 T148-452-000 23100000005 Ticket dispenser 4 T148-451-000 22301000002 Coin mechanism 5 T148-174-000 26000044000 Counter bracket 6 T148-155-000 20211903B040...
  • Page 48 To Tha Net GMP Manual 9.5 Top Net Assembly Part No. Code No. Name 1 T148-200-000 20611903B002 Top net light plastic 2 T148-158-000 20211903B043 Camera fixing bracket 1 3 T148-416-000 21107040029 Camera 4 T148-159-000 20211903B044 Angle plate 5 T148-157-000 20211903B042 Top net base bracket 1 9.6 Side Bottom Light Assembly...
  • Page 49 To Tha Net GMP Manual 9.7 Side Middle Light Assembly Part No. Code No. Name 1 T148-165-000 20211903B048 L middle light base plate 1 2 T148-166-000 20211903B049 R middle light base plate 1 3 T148-202-000 20611903B004 Side middle light plastic 2 9.8 Monitor Lifting Assembly...
  • Page 50 To Tha Net GMP Manual 9.9 Decals Part No. Code No. Name 1 T148-708-000 20511903B008 Ball track decal 2 T148-712-000 20511903B012 Level button decal 3 T148-719-000 20511902013 Mode button decal 4 T148-705-000 20511903B005 L side decal 5 T148-702-000 20511903B002 Front door decal...
  • Page 51 To Tha Net GMP Manual Part No. Code No. Name 1 T148-714-000 20511903B014 Fuse instruction label 2 T148-715-000 20511903B015 Adapter label 3 T148-716-000 20511903B016 PC power label 4 T148-724-000 25600000036 High voltage label(small) 3 5 T148-732-000 25600000093 Dongle label 6 T148-735-000 25600000116...
  • Page 52 To Tha Net GMP Manual Part No. Code No. Name 18 T148-730-000 25600000077 Fuse label(250V) 1 19 T148-729-000 25600000072 220V label 20 T148-722-000 25600000016 Power switch label 1 21 T148-731-000 25600000083 Fuse label(125V) 1 22 T148-728-000 25600000071 110V label Part No.
  • Page 53 To Tha Net GMP Manual 9.10 Electrical Components · 09/16/2019...
  • Page 54 To Tha Net GMP Manual Part No. Code No. Name 1 T148-427-000 21602000106 Power supply T148-412-000 21102000107 T148-462-000 26601090479 Mainboard T148-463-000 26601090480 Memory T148-464-000 26601090481 T148-465-000 26601090482 T148-466-000 26601090483 PC case T148-467-000 26601090484 PC power supply 3 T148-414-000 21107020036 Dongle...
  • Page 55 To Tha Net GMP Manual 09/16/2019...
  • Page 56 To Tha Net GMP Manual Part No. Code No. Name 1 T148-418-000 23304010034 Extension cable 2 T148-417-000 23304030002 Extension cable 3 T148-419-000 23303000006 Serial cable 4 T148-420-000 23305000010 Audio cable 5 T148-421-000 23307020003A DVI cable 6 T148-435-000 23309000340 Cable set...
  • Page 57 To Tha Net GMP Manual Part No. Code No. Name 1 T148-446-000 22002015021 BG5050RGB light strip 55.19in (1.4m) 2 T148-454-000 22008010001 Ticket light 3 T148-446-000 22002015021 BG5050RGB light strip 27.56in x2 (0.7m x2) 4 T148-446-000 22002015021 BG5050RGB light strip 74.80in x2 (1.9m x2) 5 T148-446-000 22002015021 BG5050RGB light strip 17.72in x2 (0.45mx2)

  • Page 58: Wiring Diagram

    To Tha Net GMP Manual 10. WIRING DIAGRAM Filter 09/16/2019...
  • Page 59 To Tha Net GMP Manual 09/16/2019...
