6. RS- 232 OUT PUT
The IDC Series of scales can be ordered with an option RS-232 output.
Specifications:
RS-232 output of weighing data
ASCII code
4800 Baud
8 data bits
No Parity
Connector: 9 pin socket
Sample of out put
LOCAL SCALE
ID: 123ABC
NAME:Text
12.456 kg NET
1.1234 g U.W.
11 PCS
TOTAL
- - - - - - - - - - - -
49.824 kg TW
44 TPC
4 No.
Control Commands
- 18 -

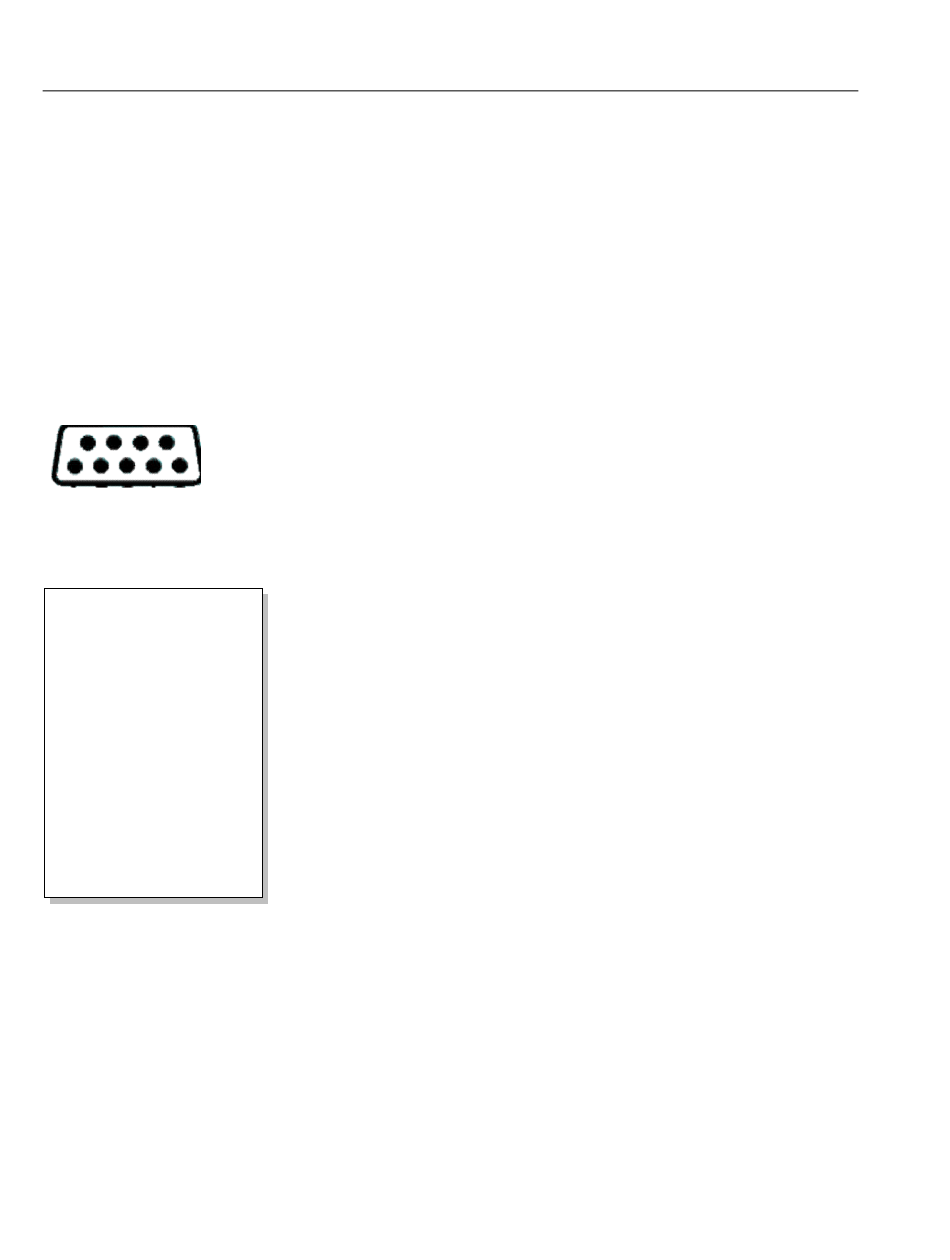

Pin 2 Output
Pin 3 Input
Pin 5 Signal Ground
