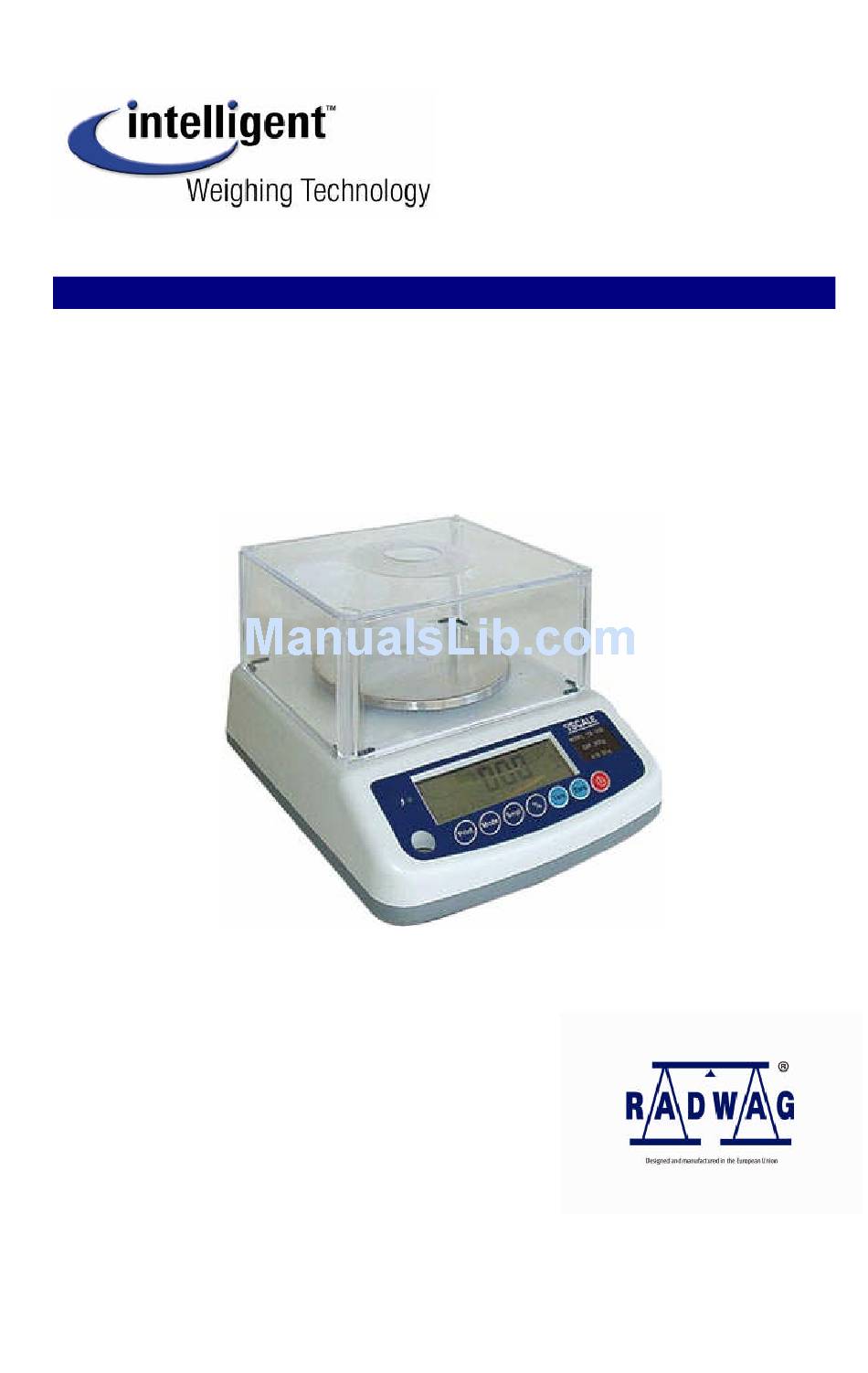

- Page 1 The Intelligent Investment Intell-Lab Precision Toploading Scale TB Series User Operation Manual...
-
Page 2: Table Of Contents
CO NTE NTS 1 INTRO DUC TIO N……… ……………………………… ………………………1 2 I NS TALL A TIO N …… …… … …… …… …… …… ……… … …… ….. …… …. 3 3 K E Y D ES C RIP TI O NS …… … …… …… …… …… ……… … …… …… … …4 4 O PE R A TI O N…... -
Page 3: Introduction

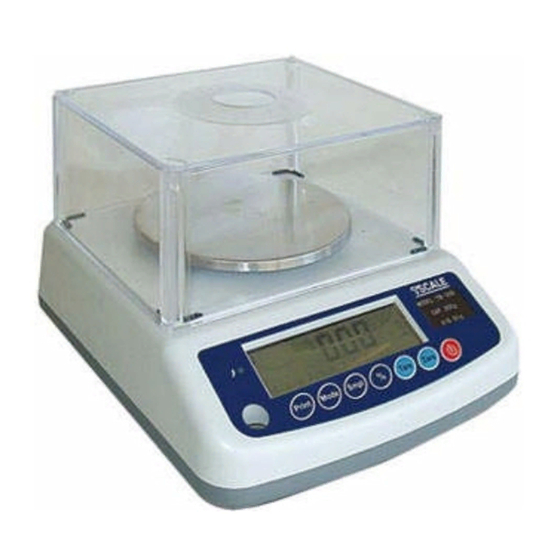

1. INTRODUCTION The TB series of electronics balances provides an accurate, fast and versatile series of general purpose balances with counting and % weighing functions. All models have stainless steel weighing platforms on an ABS base assembly. All the keypads are light touch switches and the displays are large easy to read liquid crystal type backlit displays (LCD). -
Page 4: Ns Tall A Tio N
Keep the scales clean. Do not stack material on the scales when they are not in use. 3.2 INSTALLATION of TB SERIES Level the scale by adjusting the four feet. The scale should be adjusted so that the bubble in the spirit level is in the center of the level and the scale is supported by all four feet. -
Page 5: E Y D Es C Rip Ti O Ns
3. KEY DESCRIPTIONS Zero or Enter Set the zero point for all subsequent weighing. The display shows zero. A secondary function, as "Enter" key when setting parameters or other functions. Tare Tares the scale. Stores the current weight in memory as a tare value, subtracts the tare value from the weight and shows the results. -
Page 6: Pe R A Ti O N
4. OPERATION 4.1 ZEROING THE DISPLAY You can press the ZERO/ENTER key at any time to set the zero point from which all other weighing and counting is measured, within 10% of power up zero. This will usually only be necessary when the platform is empty. When the zero point is obtained the display will show the indicator for zero. -
Page 7: Percent Weighing
4.4 PERCENT WEIGHING The scale will allow a sample weight to be shown as 100%. Then any other weight placed on the scale will be displayed as a percentage of the original sample. For example if 350g is placed on the scale and the % key is pressed the display will show 100.00%. - Page 8 4 . 6 A C C U M U L A T I O N When the scale is set to manual accumulation the weight displayed will be stored in memory when the PRINT key is pressed and the weight is stable. The display will show "ACC 1"...
-
Page 9: A T T E R Y O P E R A Ti O N
5. BATTERY OPERATION When the battery needs charging the indicator will turn on. Please charge the battery or use the AC adapter after this indicator turns on. The scales can be operated from the battery if desired. The battery life is approximately 50 hours. -
Page 10: S- 2 3 2 O U Tp U T
6. RS232 OUTPUT The TB Series of scales can be ordered with an optional RS-232 output. Specifications: RS-232 output of weighing data ASCII code 9600 Baud 8 data bits No Parity Connector: 9 pin d-subminiature socket Pin 2 Output Pin 3... -
Page 11: A R A Me Te R S
7. PARAMETERS The scale has 8 parameters that can be set by the user plus a method of entering the calibration section. To set parameters press the MODE key during self checking The display will show the first function, "F1 UNT". Pressing the MODE key will cycle through the other functions. - Page 12 FUNCTION DESCRIPTION F1 UNT Sets the units you want to use: g / ct / lb / oz / d / gn / ozt / dwt / mm / tl.T / tl.c / tl.t / t. Use MODE to switch, use ZERO key to set. F2 EL Set the backlight to be on, automatic or off, EL on: EL backlight always on...
