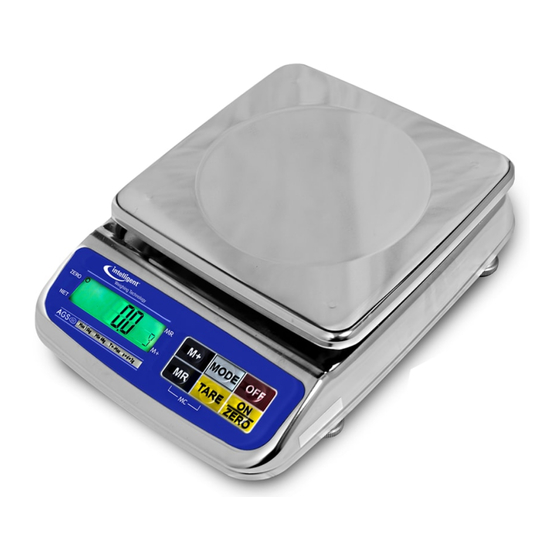

- Page 1 Digital Weighing Scale Operation Manual...
-
Page 2: Table Of Contents
July 2018 V1 CONTENTS INSTALLATION SPECIFICATIONS KEYBOARD LAYOUT AND DESCRIPTION INITIAL SETUP PLACING THE SCALE INTERNAL SETTING OPERATION INSTRUCTION WEIGHING UNIT SELECTION TARE FUNCTION SETTING MEMORY FUNCTION PIECE COUNTING FUNCTION PERCENTAGE WEIGHING CHECK WEIGHING OPERATION TROUBLESHOOTING DAILY CARE AND MAINTENANCE... - Page 3 CAUTIONS 1. This unit is legal for trade only when it is sealed (and/or stamped) and bearing a serial number. Do not attempt to break the seal (or stamp) affixed to this scale or remove the serial number. Contact your dealer for more information and after sales service. 2.
-
Page 4: Installation
1. INSTALLATION Check and make sure that the following accessories are included: Operation Manual x 1 Scale x 1 Stainless steel platter x 1 Power adaptor x 1 Dust Cover x 1 Contact your dealer if any item is missing. Place the stainless steel platter on the scale. -
Page 5: Keyboard Layout And Description
*Specifications subject to change without notice NOTE: NTEP = Legal for trade (6000e) 3. KEYBOARD LAYOUT AND DESCRIPTION Press this key to turn scale off 1. Press this key to turn scale on or set weight to zero ON/ZERO 2. Press and hold this key to turn backlight on/off Press this key to switch weighing unit from metric to imperial (when this MODE ↵... -
Page 6: Initial Setup
Weight unit It indicates the weight unit which the scale is currently measuring. This indicator appears to indicate the tare function is in operation and NET INDICATOR weight displayed is net weight ZERO This indicator appears to indicate a zero weight status INDICATOR BATTERY LEVEL This indicator shows the battery level or charging status... - Page 7 F2. Display Segment Check User can enter this function to check to see if the display and backlight (if purchased) are functioning properly. F4. Select Auto Power Off Setting The scale is equipped with Auto Power Off Function. The scale will power off automatically if it is not used for 4 minutes.
- Page 8 this function is engaged. The tare weight is automatically cleared when everything is removed from platter. tr oFF -> tr on F10. Original Calibrated Zero Function This scale is equipped with original calibrated zero function that enables user to select if the original calibrated zero is required to utilize as the weighing base for initial power-on status.
- Page 9 F15. Setting UTP date and time data This function allows user to set date and time information for UTP printout. Under this function: Use MR for value increase Use M+ for shifting digit Use Mode for confirming the setting Parameter info: y=xx set last 2 digits of year m=xx set month d=xx set date...
-
Page 10: Operation Instruction
5. OPERATION INSTRUCTION Please follow the steps below before starting. The scale is placed on a solid surface Use adjustable feet and referring to the bubble level to make sure scale is in a level position Power on the scale and wait for the counting down Scale is in zero weight status and display showing zero indicator If zero indicator is not on, press ZERO to set the display to zero If zero weight status cannot be obtained, change the location and try again... -
Page 11: Memory Function
MEMORY FUNCTION How To Save A Weighing Result To Memory a. Place a load on the scale and result will show on the display b. Wait the Stable signal appears then press M+ c. Scale displays “P. X”, which indicated the total number of transactions accumulated in memory. d. -
Page 12: Percentage Weighing
PERCENTAGE WEIGHING AGS is equipped with percentage weighing function, please follow the below procedure to enable the function and sampling method. a. AGS is on and both Zero indicator and Stable indicator are on b. Press MODE until display shows PCT as weighing unit on the display c. -
Page 13: Troubleshooting
6. TROUBLESHOOTING Syndrome Scale cannot be turned on Action Recharge the scale for at least 8 hours before first time use or plug in the power adaptor before power on the scale. Secure both ends of the power adaptor and try again.
