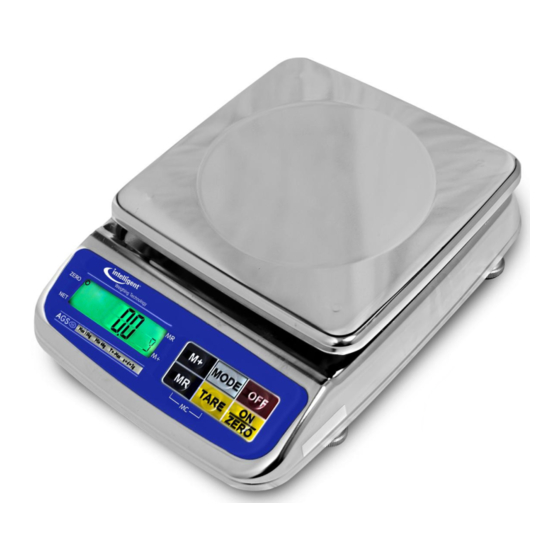

- Page 1 This document hosted by: www.oldwillknottscales.com A Higher Level of Precision…A Higher Level of Performance AGS SERIES ELECTRONIC WEIGHING SCALE OPERATION MANUAL PLEASE READ THIS MANUAL VERY CAREFULLY BEFORE ATTEMPT TO OPERATE THE SCALE JUNE 2016 REV 1...
-
Page 2: Table Of Contents
Specifications subject to change without prior notice CONTENTS CAUTIONS 1. INSTALLATION 2. SPECIFICATIONS 3. KEYBOARD LAYOUT AND DESCRIPTION 4. INITIAL SETUP 5. INSTRUCTION FOR USE 6. TROUBLE SHOOTING 7. DAILY CARE AND MAINTENANCE... - Page 3 CAUTIONS 1. This unit is legal for trade only when it is sealed (and/or stamped) and bearing a serial number. Do not attempt to break the seal (or stamp) affixed to this scale or remove the serial number. Contact your dealer for more information and after sales service.
-
Page 4: Installation
1. INSTALLATION Check and make sure that the following accessories are included: Operation Manual x 1 Scale x 1 Stainless steel platter x 1 Power adaptor x 1 Dust Cover x 1 Contact your dealer if any item is missing. Place the stainless steel platter on the scale. -
Page 5: Specifications
2. SPECIFICATIONS Model No. Capacity Division (e) (Max) OIML Non-OIML Extended AGS-1500 1500g 0.5g 0.2g 0.05g AGS-3000 3000g 0.5g 0.1g AGS-6000 6000g 0.2g AGS-15K 15kg 0.005kg 0.002kg 0.0005kg AGS-30K 30kg 0.01kg 0.005kg 0.001kg Tare Range Full Tare Range Power-on ±10% Max Zero Range Zero Range ±2% Max... -
Page 6: Keyboard Layout And Description
3. KEYBOARD LAYOUT AND DESCRIPTION OFF KEY Press this key to turn scale off ON/ZERO KEY Press this key to turn scale on or set weight to zero MODE KEY Press this key to shift among different weight units and/or turn backlight on/off TARE KEY Press this key to tare off the weight of a container. - Page 7 SAMPLE KEY Press this key to sample the weight place on the platter and engage the counting function or percentage function MODE INDICATOR This indicator shows current weight unit or operating mode engaged ZERO INDICATOR This indicator appears to indicate a zero weight status NET INDICATOR This indicator appears to indicate the tare function is in operation and weight displayed is net weight...
-
Page 8: Initial Setup
4. INITIAL SETUP 4.1 PLACING THE SCALE In order to obtain an accurate weighing result, the scale must be placed on a strong and level surface. If required, adjust the adjustable feet underneath scale to obtain a level position. Refer to the bubble indicator for leveling condition. - Page 9 4.2.2 Select Auto Power Off Setting The scale is equipped with Auto Power Off Function. The scale will power off automatically if it is not used for 4 minutes. Follow the below steps to enable/disable Auto Power Off Function. Scale is off Press and hold TARE, then press ON/ZERO Scale displays F.1 Press TARE three times...
- Page 10 Press and hold TARE, then press ON/ZERO Scale displays F.1 Press TARE six times Scale displays F.9 Press MODE to select between “Tr_on” or “TroFF” -To enable Auto Tare Function, press TARE when Tr_on appears -To disable Auto Tare Function, press TARE when TroFF appears Press ON/ZERO to confirm and restart the scale or TARE for next function setup...
-
Page 11: Instruction For Use
5. INSTRUCTION FOR USE 5.1 BEFORE WEIGHING Make sure that: The stainless steel platter is placed correctly on top of load receptor. The scale is placed on a level and strong surface. The scale is turned on. The ZERO INDICATOR is on. If not, press ON/ZERO to set display to zero. - Page 12 5.3 SELECT WEIGHT UNIT Press MODE to shift between metric or avoirdupois weight units. The weight unit used before power off would be employed when the scale is turned on again. NOTE: To comply with the law of certain countries and certain approval requirements, the avoirdupois weight units may be disabled.
- Page 13 5.6 SET DISPLAYED VALUE TO ZERO WHEN UNLOADED By pressing ON/ZERO, a positive or negative weight displayed will be set to zero and ZERO INDICATOR appears. Refer to SPECIFICATIONS for maximum zero range. NOTE: -When scale is set at OIML and application is legal for trade.
- Page 14 After TARE is pressed, the NET INDICATOR would appear. Refer to 5.2 for weighing procedures. Weight displayed under is the net weight of the subject matter. Refer to SPECIFICATIONS for maximum tare range. NOTE: - When scale is set at OIML and application is legal for trade.
- Page 15 5.9 MEMORY FUNCTION 5.9.1 How to Accumulate a Weighing Result to Memory a. Refer to 5.2 to 5.3 for weighing b. Press M+ to save and accumulate the result to memory. c. Scale will display “P. X” and then follow by the accumulated weighing result stored while both M+ INDICATOR MEMORY...
- Page 16 to store a value to memory. The weight accumulation function will take place when reading is stabled - When scale is set at Non-OIML and application is not legal for trade. User can save the shown value to memory at anytime when pressing M+ 5.9.2 Memory Recall a.
- Page 17 press and hold MODE for 2 seconds and display will flash the extended digit for 5 seconds before return to normal. 5.11 RECHARGE THE SCALE The scale is equipped with a built-in rechargeable battery. When the LO-BAT INDICATOR appears, recharge the scale immediately.
-
Page 18: Trouble Shooting
6. TROUBLE SHOOTING Syndrome Scale cannot be turned on Check: Is the scale charged? Action: Recharge the scale for at least 8 hours before first time use or plug in the power adaptor before power on the scale. Check Is the power adaptor inserted properly into both the electricity outlet and the DC inlet of scale. - Page 19 Syndrome Rated capacity cannot be reached Check Is the NET INDICATOR on? Action: Turn the scale off. Remove all loads from platter and turn on again. Check Is there anything obstructing the platter? Action Remove all obstacles. Syndrome Weighing result is not accurate Check Is the scale placed in a level condition? Action...
-
Page 20: Daily Care And Maintenance
7. DAILY CARE AND MAINTENANCE Clean the scale with a soft and damp cloth. If necessary, apply a mild detergent. Do not use any harsh, abrasive material, acetone, volatile solvent, thinner or alcohol for cleaning. Verify the accuracy of scale periodically. Re-calibrate the scale if necessary. - Page 21 KONFORMITÄTSERKLÄRUNG Declaration of conformity Déclaration de conformité Die ichtselbsttätigen Waage The non-automatic weighing instrument L'instrument de pesage à fonctionnement non automatique Hersteller: Universal Weight Manufacturer: Enterprise Fabricant Co., Ltd. Typ/Modell: Type/Model: Type/modèle: Nr. der EG-Bauartzulassung (gegebenen falls): T6156 No of the EC type-approval certificate (where applicable): Nº...
- Page 22 © Intelligent Weighing Technology, Inc. 2016 All rights reserved worldwide. The information contained herein is the property of Intelligent Weighing Technology, Inc. and is supplied without liability for errors or omissions. No part may be reproduced or used except as authorized by contract or other written permission.
