Summary of Contents for Rival 2D.5723.1-NL
Page 1

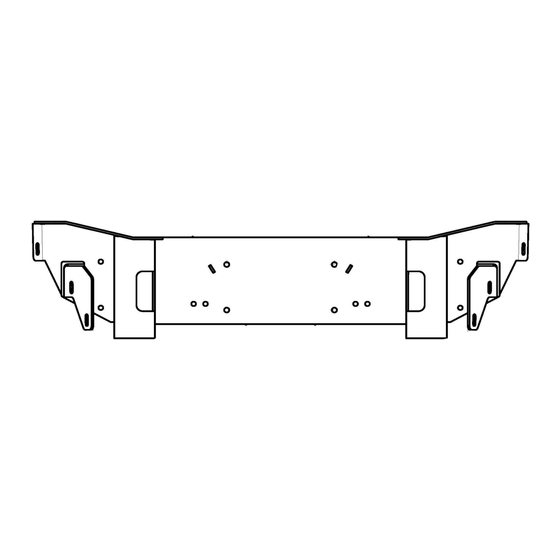

MODEL: TOYOTA LAND CRUISER 300 (2021 - PRESENT) PART NO: 2D.5723.1-NL CAUTION! To reduce the risk of serious injury or damage, please read and understand all instructions and procedures before attempting to install or use this product. Safety glasses must be worn at all times during installation or maintenance of this product.
Page 2
*WINCH INSTALLATION A winch with a pull capacity of up to 12000 lbs can be installed with the RIVAL Bumper. It is not advisable to exceed this pulling capacity since damage, injury or death may occur where the 12000 lbs recommended capacity is exceeded.
Page 3
Incorrect use of receivers equipment can result in serious injury or death. Always use recovery points as a matched pair teamed with an equalising bridle during any recovery situation. Please attach this "Warning" label to the door aperture. Installation manual 2D.5723.1-NL < Page 3 of 18 > Date: 8-Feb-2024 www.rival4x4.com...
Page 4
* It is recommended that you carry out regular inspections of all the bumper elements such as all bolts, wires, connectors. * A winch with a pull capacity of up to and including 12000 lb can be installed with the RIVAL Bumper. It is not advisable to exceed this pulling capacity since damage, injury or death may occur where the 12000lb recommended capacity is exceeded.
Page 5
Qty 1 13. Front left bash plate bracket..Qty 1 27. Left adjusting bracket....Qty 1 14. Support bracket right..... Qty 1 28. Right adjusting bracket....Qty 1 Installation manual 2D.5723.1-NL Date: 8-Feb-2024 www.rival4x4.com < Page 5 of 18 >...
Page 6
T. Parking sensor washer..... Qty 4 J. Screw М10х30 countersunk-head.. Qty 6 U. Spring washer 12......Qty 8 K. U-nut М6........Qty 10 V. Cable tie......... Qty 10 Installation manual 2D.5723.1-NL Date: 8-Feb-2024 www.rival4x4.com < Page 6 of 18 >...
Page 7
6. Remove plastic clips on both sides of the vehicle as shown in fig.5. vehicle as showin in fig.6. *Set aside for re-use later on. *Set aside for re-use later on. Installation manual 2D.5723.1-NL Date: 8-Feb-2024 www.rival4x4.com < Page 7 of 18 >...
Page 8
11. Disconnect connector and remove parking 12. Remove OE plastic damper (fig.12). sensor as shown in fig.11. Do the same with rest 3 sensors. *Set aside for re-use later on. Installation manual 2D.5723.1-NL Date: 8-Feb-2024 www.rival4x4.com < Page 8 of 18 >...
Page 9
OE frame as shown in fig.17, on both sides of insert nut М10 using bolts М10х30 (item F) the vehicle. and washers 10 (item Q) (fig.18). *Do not tighten yet. Installation manual 2D.5723.1-NL Date: 8-Feb-2024 www.rival4x4.com < Page 9 of 18 >...
Page 10
10 (item Q), nuts M10 (item M) (item F), washers 10 (item P), nut M10 (item and OE bolts as shown in fig.23. M) (fig.24). *Tighten hardware after that. *Tighten hardware after that. Installation manual 2D.5723.1-NL Date: 8-Feb-2024 www.rival4x4.com < Page 10 of 18 >...
Page 11
Fig.29 Fig.30 29. Locate 4 knock-outs for parking sensors 30. Install countersunk washer (item T) on the bumper body and knock them out by a (fig.30). hammer (fig.29). Installation manual 2D.5723.1-NL Date: 8-Feb-2024 www.rival4x4.com < Page 11 of 18 >...
Page 12
36. To install lightbar: fix the lightbar on grills shown in fig. 35. brackets inside the bumper body, as shown *Set aside for re-use later on. in fig. 36. *Tighten hardware after that. Installation manual 2D.5723.1-NL Date: 8-Feb-2024 www.rival4x4.com < Page 12 of 18 >...
Page 13
42. Prepare templates (item 25. 26) and stick (item 20), using screw M6x20, washer 6 and it on OE bumper, as shown in fig.42. nuts M6 (item I,L, N) (fig.41). *Tighten hardware after that. Installation manual 2D.5723.1-NL Date: 8-Feb-2024 www.rival4x4.com < Page 13 of 18 >...
Page 14
Fig.46 45. Install weatherstrip (item 24) on the edge 46. Install OE bumper on the vehicle, of bumper (fig.45). connect OE wiring on OE and Rival bumper and fix it using cable ties (item V) (fig. 46). Fig.47 Fig.48 47. Install OE grill (fig.47).
Page 15
(fig. 49). Fig.51 51. Try OE fender on the vehicle, mark cutting line following Rival bumper edge and cut merked line. Install OE fender after that, same way you removed it on steps 5-7 (fig. 51). License plate bracket installation without a fairled Fig.
Page 16
(fig. 58). with fairled (fig. 59). *Do not tighten yet. *Tighten hardware after that. Installation manual 2D.5723.1-NL Date: 8-Feb-2024 www.rival4x4.com < Page 16 of 18 >...
Page 17
INSTALLATION PROCEDURE Fig.60 58. Connect terminal “-“ on the battery (fig.54). Installation manual 2D.5723.1-NL Date: 10-Nov-2023 www.rival4x4.com < Page 17 of 18 >...
Page 18
INSTALLATION PROCEDURE Before operating a vehicle fitted with RIVAL Bumper 2D.5723.1-NL: - make sure all fittings are tightened - check winch operation - check that all electrical wiring is attached to the lights Installation manual 2D.5723.1-NL Date: 8-Feb-2024 www.rival4x4.com < Page 18 of 18 >...
