Rival 2D.2719.1 Installation Manual

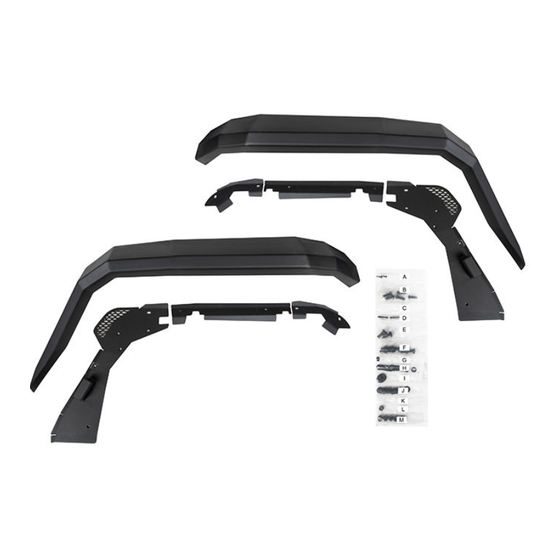

Front aluminum fender flares, jeep wrangler jl 2018-on, gladiator jt 2020-on
Hide thumbs

Advertisement

Quick Links

Download this manual
INSTALLATION MANUAL
PRODUCT:
MODEL:
PART NO:
CAUTION!
To reduce the risk of serious injury or damage, please read and understand all instructions and
procedures before attempting to install or use this product.
Safety glasses must be worn at all times during installation or maintenance of this product.
Ensure all mounting bolts are tensioned after 600 miles (1000 kms) and periodically there after.
Do not use damaged product or hardware.
Ver. 3
FRONT ALUMINUM FENDER FLARES
JEEP WRANGLER JL (2018 - ON),
GLADIATOR JT (2020 - ON),
2D.2719.1
www.rival4x4.com
www.rival4x4.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2D.2719.1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rival 2D.2719.1

Summary of Contents for Rival 2D.2719.1

  • Page 1 JEEP WRANGLER JL (2018 - ON), GLADIATOR JT (2020 - ON), PART NO: 2D.2719.1 CAUTION! To reduce the risk of serious injury or damage, please read and understand all instructions and procedures before attempting to install or use this product.
  • Page 2 JEEP WRANGLER JL. JT (2018 - ON) SAFETY NOTICE * The RIVAL Fender Flares are designed to complement the use and design of the specified vehicle under conditions specified by the vehicle manufacturer. * While driving the vehicle at any speed, collision with any other vehicle, animal or object must always be avoided.

  • Page 3: Parts Listing

    7. Right front facia bracket (passenger’s side).... Qty 1 8. Right middle facia bracket (passenger’s side)..Qty 1 9. Insert nut М6............Qty 2 10. Weatherstrip............Qty 1 PASSENGER’S SIDE DRIVER’S SIDE Installation manual 2D.2719.1 www.rival4x4.com < Page 3 of 15 > Date: 23-May-2022...
  • Page 4 Qty 8 P. Wire connector......... Qty 4 H. Blink light........Qty 2 Q . Screw М3........Qty 4 I. Cable tie……………......Qty 8 R. Nut М3..........Qty 4 Installation manual 2D.2719.1 www.rival4x4.com < Page 4 of 15 > Date: 23-May-2022...
  • Page 5 * Do not remove fender. You have risk to damage wiring harness. Fig. 5 Fig. 6 5. Disconnect the wiring. 6. Carefully remove OE fender with inner liners. Installation manual 2D.2719.1 www.rival4x4.com < Page 5 of 15 > Date: 23-May-2022...
  • Page 6 9. Dispart OE inner liner and OE fender by unscrewing 1 screw and 7 plastic push clips. Fig. 11 Fig. 12 11. Uninstall wiring by removing 4 plastic push 10. Remove 2 plastic push clips in the rear part clips. of the vehicles. Installation manual 2D.2719.1 www.rival4x4.com < Page 6 of 15 > Date: 23-May-2022...
  • Page 7 Fig. 17 Fig. 18 16. Put heat shrink tube (item M) in blink light 17. Crimp terminals (item J) on black and red wiring. wiring of the blink light. Installation manual 2D.2719.1 www.rival4x4.com < Page 7 of 15 > Date: 23-May-2022...
  • Page 8 22. LOAD RESISTOR BLACK BLACK WHITE WITH GREEN LINE BUTT WIRE TAP LED LAMP CONNECTORS CONNECTORS Fig. 23 22. Blink lights connection scheme for incandescent lights ( g.23). Installation manual 2D.2719.1 Date: 23-May-2022 < Page 8 of 15 >...
  • Page 9 BLACK BLACK WHITE WITH WHITE WITH GREEN LINE BUTT RED LINE WIRE TAP LED LAMP CONNECTORS CONNECTORS Fig. 28 27. Blink lights connection scheme for LED lights ( g.28). Installation manual 2D.2719.1 Date: 23-May-2022 < Page 9 of 15 >...
  • Page 10 NOTE! Begin by installing RIVAL 2D.2729.1 inner fender liner in case if you plan to install RIVAL 2D.2719.1 Fender Flares with RIVAL 2D.2729.1 inner fender liners. NOTE! Continue with steps 42-48 in case if you plan to install RIVAL 2D.2719.1 Fender Flares with OE inner fender liners Installation manual 2D.2719.1...
  • Page 11 36. Install fender (item 1) onto the vehicle. 37. Fix fender using screws M8 (item B), washers Attach weatherstrip along the outline. 8 (item D) and nuts M8 (item F). *Do not tighten yet. Installation manual 2D.2719.1 Date: 23-May-2022 < Page 11 of 15 >...
  • Page 12 (item I). battery terminal cable Repeat steps 2 - 41 for the other side of the vehicle RIVAL 2D.2719.1 Fender Flares installation with OE inner fender liners Fig. 46 Fig. 45 42. On driver’s side, mark cutting line on OE inner fender liners, same as on picture, matching with fender bracket and body of the vehicle.
  • Page 13 (item 9 ) and nuts M6 (item E) ( g.50, and nuts M6 (item E) ( g.50, 51). 52). *Do not tighten yet. *Do not tighten yet. Installation manual 2D.2719.1 Date: 23-May-2022 < Page 13 of 15 >...
  • Page 14 M6 (item A), washers 6 (item C), insert nut (item 9 ) and nuts M6 (item E). *Tighten all hardware after that. Repeat steps 2-31, 42-49 for the other side of the vehicle Installation manual 2D.2719.1 Date: 23-May-2022 < Page 14 of 15 >...
  • Page 15 INSTALLATION PROCEDURE Before operating a vehicle fitted with RIVAL Aluminum Fender Flares 2D.2719.1: - make sure all fittings are tightened; - check all electrical wiring attached to lights. Installation manual 2D.2719.1 Date: 23-May-2022 < Page 15 of 15 >...
