INSTALLATION MANUAL

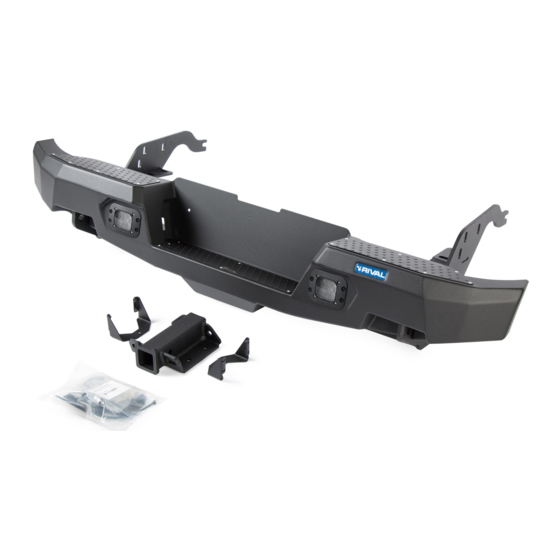

REAR BUMPER
PRODUCT:
FORD RANGER (2011-2015)
MODEL:
FORD RANGER (2015-)
2D.1811.1
PART NO:
CAUTION!
To reduce the risk of serious injury or damage, please read and understand all instructions and
procedures before attempting to install or use this product.
Safety glasses must be worn at all times during installation or maintenance of this product.
Ensure all mounting bolts are tensioned after 1000 kms and periodically there after.
NOTICE
Whilst the bumper adds additional protection to your vehicle, precautionary measures still need
to be taken to avoid damage.
Always drive to the conditions and your surroundings.
www.rival4x4.com
Advertisement
Table of Contents
Related Manuals for Rival 2D.1811.1
Summary of Contents for Rival 2D.1811.1
- Page 1 REAR BUMPER PRODUCT: FORD RANGER (2011-2015) MODEL: FORD RANGER (2015-) 2D.1811.1 PART NO: CAUTION! To reduce the risk of serious injury or damage, please read and understand all instructions and procedures before attempting to install or use this product. Safety glasses must be worn at all times during installation or maintenance of this product.
- Page 2 * Operation of the bumper or components hereof is not allowed. In case of damage t the bumper or components hereof please contact the nearest RIVAL dealer. * It is not allowed to operate the bumper with loose fittings.
- Page 3 Towing of the trailer which is incompliant with specified requirements may result in damage to tow bar or bumper. *LIGHTS The bumper provides for the light mounting points. Overall dimensions of the lights under installation: Installation manual 2D.1811.1 www.rival4x4.com Date: 06.11.2018 < Page 3 of 8 >...
- Page 4 4 pc. 13. Socket bracket.......... 1 pc. 14. Adjustment shim........4 pc. 15. Screw M5x16..........4 pc. 16. Nut M5 ............. 4 pc. 17. Washer 5..........4 pc. Installation manual 2D.1811.1 www.rival4x4.com Date: 06.11.2018 < Page 4 of 8 >...
- Page 5 Align the position of lights and tighten screw joints. 5. Install lights and brackets into the bumper facia using screws M6x16 (pos.6) and washers 6 (pos. 8). Adjust the position of lights. Installation manual 2D.1811.1 www.rival4x4.com Date: 06.11.2018 < Page 5 of 8 >...
- Page 6 8. Install the bumper facia (pos. 1) onto the bracket and secure it in the towing eye area using screws M10x30 (pos. 7) and washers 10 (pos. 9). Installation manual 2D.1811.1 www.rival4x4.com Date: 06.11.2018 < Page 6 of 8 >...
- Page 7 *10. Install license lights into the facia. Secure with screws M5x16 (pos. 15), nuts M5 (pos. 16) and washers (pos. 17). *The license lights are not included in the delivery set. Installation manual 2D.1811.1 www.rival4x4.com Date: 06.11.2018 < Page 7 of 8 >...
- Page 8 INSTALLATION PROCEDURE Before operating the vehicle with RIVAL bumper: make sure that all screw joints are tightened; check connecting wires of the fog lamps. Installation manual 2D.1811.1 www.rival4x4.com Date: 06.11.2018 < Page 8 of 8 >...
