INSTALLATION MANUAL
PRODUCT:
MODEL:
PART NO:
CAUTION!
To reduce the risk of serious injury or damage, please read and understand all instructions and
procedures before attempting to install or use this product.
Safety glasses must be worn at all times during installation or maintenance of this product.
Ensure all mounting bolts are tensioned after 400 kms and periodically there after.
NOTICE
Whilst the bumper adds additional protection to your vehicle, precautionary measures still need
to be taken to avoid damage.
Always drive to the conditions and your surroundings

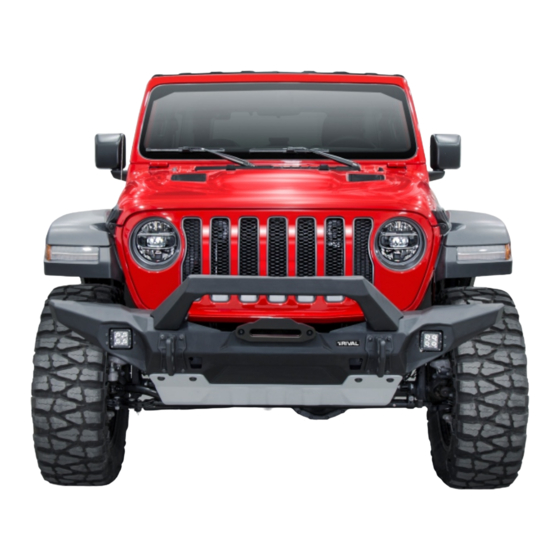

FRONT BUMPER
JEEP WRANGLER JK (2007-2018)
JEEP WRANGLER JL (2017-)
JEEP GLADIATOR JT (2019-)
2D.2701.1-NL
2D.2702.1-NL
www.rival4x4.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Rival 2D.2701.1-NL
Summary of Contents for Rival 2D.2701.1-NL

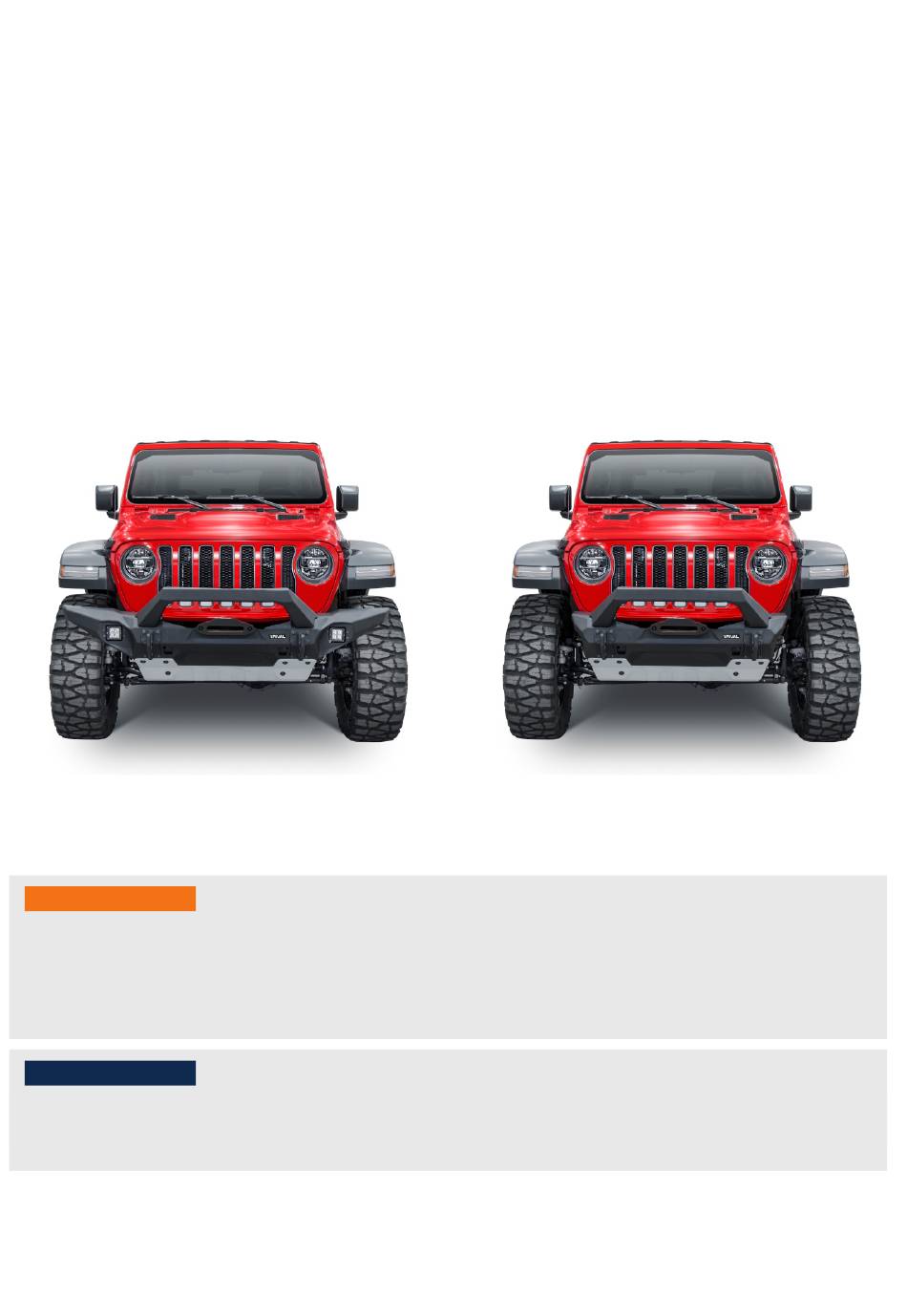

- Page 1 JEEP WRANGLER JK (2007-2018) JEEP WRANGLER JL (2017-) JEEP GLADIATOR JT (2019-) PART NO: 2D.2701.1-NL 2D.2702.1-NL CAUTION! To reduce the risk of serious injury or damage, please read and understand all instructions and procedures before attempting to install or use this product.
-
Page 2: Front Bumper
* A winch with a pull capacity of up to 12000 lb can be installed with the RIVAL Bumper. It is not advisable to exceed this pulling capacity since damage, injury or death may occur where the 12000lb recommended capacity is exceeded. The Rival bumper provides standard 4 1/2"x10"... - Page 3 КОМПЛЕКТАЦИЯ PARTS LISTING Front bumper 2D.2701.1-NL Front stubby bumper 2D.2702.1-NL Qty 1 Aluminum bumper body . 2. Winch bracket....Qty 1 Qty 1 3. Left adapter..... 4. Right adapter....Qty 1 Qty 2 5. Tow hooks......Qty 1 6. Lightbar......
- Page 4 I. Flat washer 10 ......Qty 4 Qty 6 U. Cable tie........J. Washer 12......... Qty 16 Qty 5 V. Cable clips........ K. Nut М6........Qty 4 Installation manual 2D.2701.1-NL, 2D.2702.1-NL www.rival4x4.com Date: December 27, 2019 < Page 4 of 12 >...
- Page 5 3. Unscrew 2 bolts securing OE skid 4. Remove fascia plate trim clips. plate. Remove plastic push clips, using a 6. Disconnect the fog light wire harness. small feather edge screwdriver. Installation manual 2D.2701.1-NL, 2D.2702.1-NL www.rival4x4.com Date: December 27, 2019 < Page 5 of 12 >...
- Page 6 Fix it using bolts M12 washers 10 (pos.I). (pos.E), nuts M12 (pos. M) and two Do not tighten yet. washers 12 (pos. J). Do not tighten yet. Installation manual 2D.2701.1-NL, 2D.2702.1-NL www.rival4x4.com Date: December 27, 2019 < Page 6 of 12 >...
- Page 7 (pos.G) and nuts M6 (pos.K). Tighten hardware after that. 17. Install horn using OE bracket and bolts M10x20 (pos.F), washers M10 (pos.H) and nuts M10 (pos.L). Installation manual 2D.2701.1-NL, 2D.2702.1-NL www.rival4x4.com Date: December 27, 2019 < Page 7 of 12 >...
-
Page 8: Installation Procedure
(pos. O,P) to the winch plate bracket using screw M10 (pos. B), washers M10 (pos. H) and nut M10 (pos. L). Tighten hardware after that Installation manual 2D.2701.1-NL, 2D.2702.1-NL www.rival4x4.com Date: December 27, 2019 < Page 8 of 12 >... - Page 9 7 Fix it using screws M10 (pos.B), washers M10 (pos.H) and nuts M10 (pos.L). Tighten hardware after that. Installation manual 2D.2701.1-NL, 2D.2702.1-NL www.rival4x4.com Date: December 27, 2019 < Page 9 of 12 >...
- Page 10 Fix wire on the bumper, using cable tie (pos.U) and cable clips (pos.V). 30. For Jeep Wrangler JL: 31. Then follow the instructions supplied To install RIVAL lower skid plate with the skid plate. (part number 2333.2758.1.6) find 4 circle perforations on the bottom of the bumper and knock them out.
- Page 11 Инструкция по установке INSTALLATION PROCEDURE Before operating a vehicle fitted with RIVAL Bumper 2D.2701.1-NL or 2D.2702.1-NL: - make sure all fittings are tightened - check winch operation - check all electrical wiring attached to lights Installation manual 2D.2701.1-NL, 2D.2702.1-NL www.rival4x4.com Date: December 27, 2019 <...
- Page 12 Инструкция по установке INSTALLATION PROCEDURE Thank you for your choice! Sincerely, RIVAL 4x4 Team Installation manual 2D.2701.1-NL, 2D.2702.1-NL www.rival4x4.com Date: December 27, 2019 < Page 12 of 12 >...
