SET COMMUNICATION:
This section define the fundamental communication parameters of two buses, BACnet and SNMP.
By Pressing the "Set Communication" button from the main window for SW67170 (Fig. 2) the window
"Set Communication" appears (Fig. 3).
The window is divided in three sections, one for selecting the type of BACnet (in relation to the device
bought), one for the BACnet parameters and the other for the SNMP parameters.
In the section "BACnet Type" is possible to select the type of BACnet to use from:
BACnet/IP (uses ethernet);
BACnet MS/TP (uses RS485);
BACnet PTP (uses RS232).
If selected "BACnet/IP" the means of the fields for "BACnet" are:
In the fields "IP ADDRESS" insert the IP address that you want to give to the Converter;
In the fields "SUBNET
In the fields "GATEWAY" insert the default gateway that you want to use. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of the net;
In the field "Port" the port used for BACnet communication is defined. The default port used for
BACnet communication is 47808, but is possible to insert any value (except 10000 and 10001);
In the field "BACnet Device
In the field "Device Identifier" is possible to assign a number to the BACnet node (used for the
Device Identifier).
The means of the fields for "SNMP Manager" are:
In the field "IP ADDRESS" insert the IP address that you want to give to the SNMP side;
In the field "SUBNET Mask" insert the SubNet Mask of the SNMP side;
In the field "GATEWAY" insert the default gateway that you want to use. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of the net;
In the field "SNMP Name of
ADFweb.com Srl – IT31010 – Mareno – Treviso
Mask" insert the SubNet Mask;
Name" is possible to assign a name to the BACnet node;
Station" is possible to assign a name to the SNMP node.
User Manual BACnet Slave / SNMP Manager
Document code: MN67170_ENG Revision 1.000

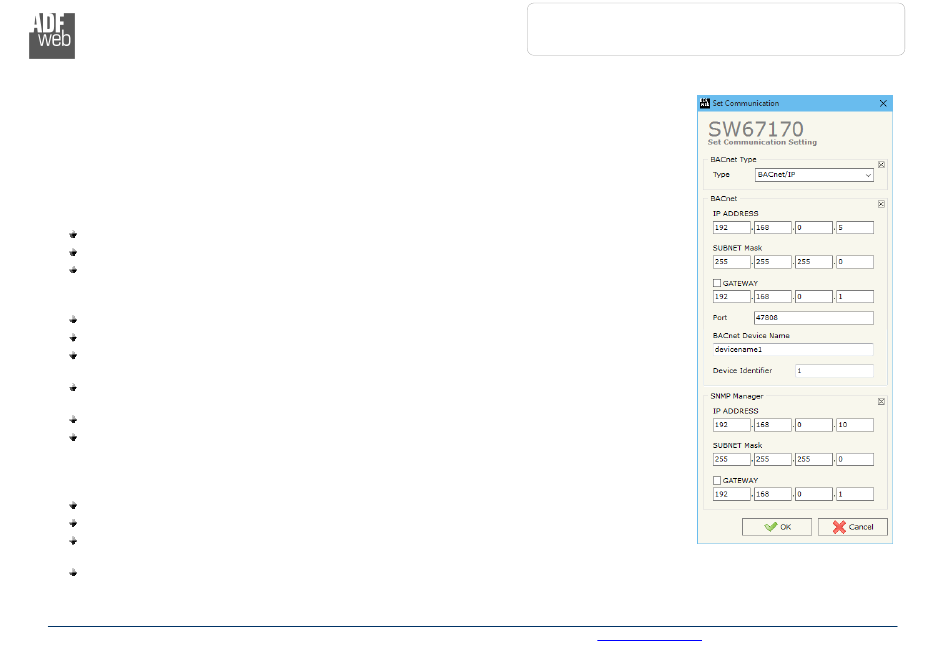

Figure 3: "Set Communication" window
