Summary of Contents for GVM GVM-800D-II

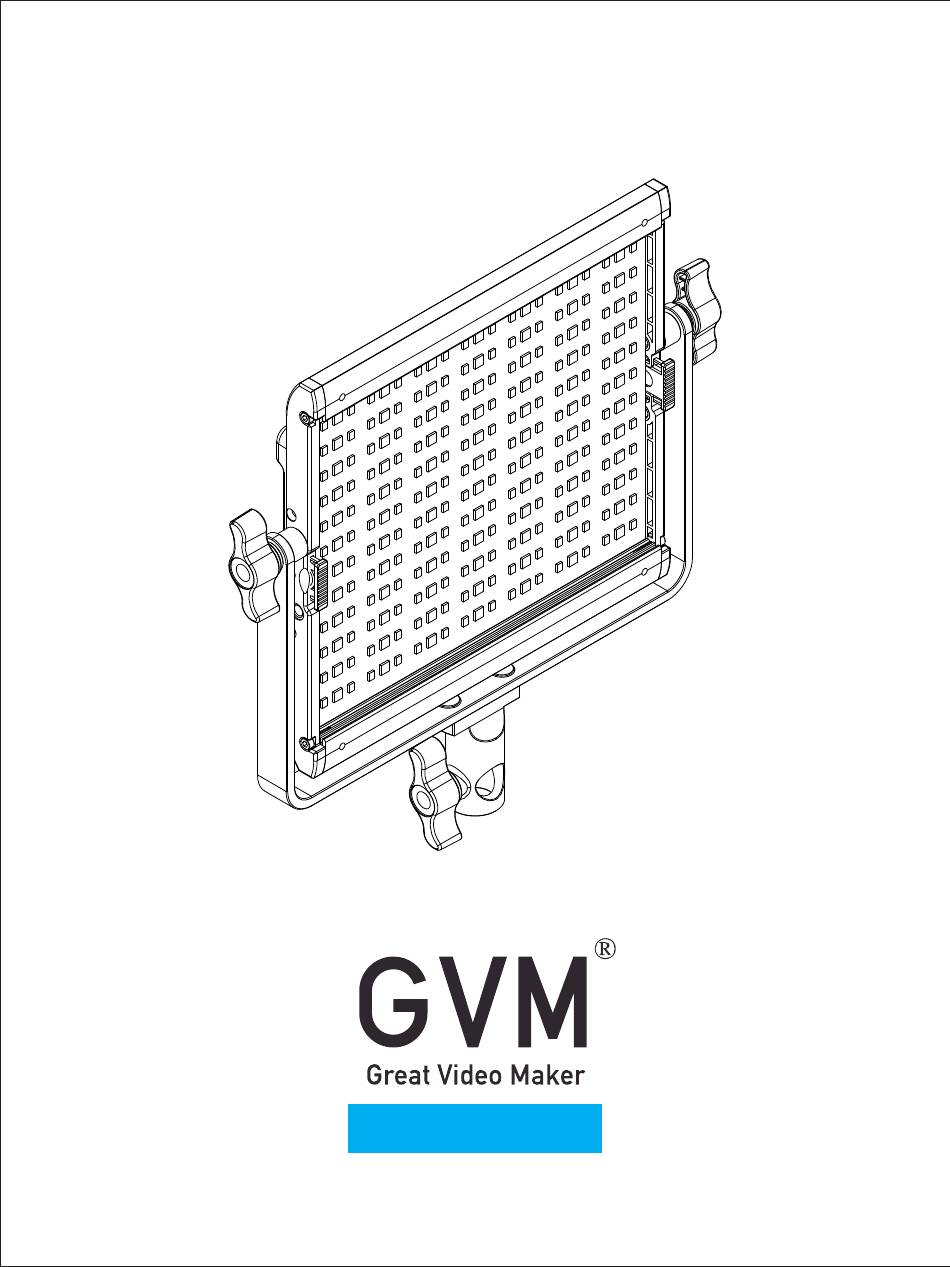

- Page 1 GVM-800D-II...
- Page 2 CONTENTS Important Safety Instructions ---------------------------------------------- Page 1~2 Warning ------------------------------------------------------------------------ Page 2 Product Introduction ---------------------------------------------------------- Page 3 Disclaimers -------------------------------------------------------------------- Page 3 Product Parameter ------------------------------------------------------------ Page 4 Product Structure Analysis ---------------------------------------------------- Page 5 Installation Method -------------------------------------------------------- Page 6~7 Accessories Installation Method ---------------------------------------------- Page 8 Description Of Product Control Keys ----------------------------------------- Page 9 Function Introduction &...
- Page 3 IMPORTANT SAFETY INSTRUCTIONS First and foremost: this product is a professional lighting and staging equipment and should be used by a professional lighting technician or under the guidance of a professional. When using this product, you must always follow the cautions below: 1．Read the product manual carefully before use.
- Page 4 17.For some products with long power cords, please place the power cords properly and avoid contact with overheated surfaces that may damage or trip personnel. Please use the original power cords of our manufactory. The damage caused by using non-original power cords is not covered by our repair service.
- Page 5 PRODUCT INTRODUCTION Thank you for purchasing our “GVM-800D-II”. This product is specially designed for senior photographers. The product usage scenarios are suitable for live broadcast / outdoor / studio photography, etc., and can also be used for YouTube video shooting.
- Page 6 PRODUCT PARAMETER ◆ Brand : GVM ◆ Product Model : GVM-800D-II ◆ Product Name : Photography Lights ◆ Product Type : Photography Fill Light ◆ Features : Multiple Lighting Modes, High CRI LED Beads ◆ Control Methods: Self Control (Rotate Mode), Bluetooth APP Control, Wireless Master-Slave Mode ◆...
- Page 7 PRODUCT STRUCTURE ANALYSIS External diffuser mounting screw hole Soft light spot locking mouth LED lamp beads Angle fixing knob U-frame Lamp holder fixing knob Lamp rack interface Lamp rack interface LCD display screen Cooling hole Change channel button Battery tank Mode button MODE Battery...
- Page 8 INSTALLATION METHOD The lamp can be installed and fixed on the bracket by rotating the knob clockwise, and unloaded by rotating in the counterclockwise direction. Insert the diffuser from the side of the light panel.
- Page 9 Loosen the adjustment knobs on both sides of the U-bracket, adjust the angle of the panel you need, and then tighten the adjustment knobs on both sides of the U-bracket. There are two power supply modes to choose from. 1. Connect the power cord and adapter for power supply. 2.
- Page 10 ACCESSORIES INSTALLATION METHOD Light control folding : Light control folding can control the Angle of light. Align the front mounting holes with the screw holes of the hinges and lock barn door with screws.
- Page 11 DESCRIPTION OF PRODUCT CONTROL KEYS S C : C H : Rotate Slave Master CCT : HUE : TIM : SAT : MODE Battery Adapter CCT / HUE / SAT / SCE DC15V power input interface Power switch Mode control button: Change mode control Change channel button: When is in master/slave mode, press this button to select the channel.
- Page 12 FUNCTION INSTRUCTION & INSTRUCTION FOR USE ① LCD screen ： The display screen shows the current brightness, control mode, lighting parameters, channel values, and battery level of the light. Channel numerical Battery power S C : C H : Scene number (lights only when the Rotate Control mode...
- Page 13 ③ Adjust brightness (BRG): • In Master mode / Rotate mode, turn the brightness adjustment knob to adjust the brightness. • In the APP mode, connect to APP and adjust brightness through APP. ④ Adjust color temperature (CCT): • In Master mode / Rotate mode, short press and hold the multifunctional knob to switch to CCT, and then rotate the multifunctional knob to adjust the color temperature.
- Page 14 ⑧ Adjust CH: • In Master mode/Slave mode, tap the plus/minus key to set the channel value. • In APP mode, connect to APP and set the channel value through APP. ⑨ APP control: Switch the photography light to the App mode, connect the photography light's Bluetooth with your phone, and you can use the App to control the brightness, color temperature, color, saturation, scene type, channel, and power on/off of the photography light.
- Page 15 2．Turn on the light, switch mode to APP mode, confirm that the phone Bluetooth and APP Bluetooth permission is open (Android needs to open GPS and APP positioning permission).Then open the "GVM LED" application, enter the Bluetooth search interface (Figure 1) , find the Bluetooth named "BT_LED"...
- Page 16 QUICK TROUBLESHOOTING Phenomenon Check the product Troubleshooting 1. Check the matching power adapter Make sure the adapter is well contacted with indicator light up or not. the power plug. The switch indicator does 2. When using lithium battery, make not light up. sure there's no "low power"...
- Page 17 USE AND PRESERVATION Do not place the product in a high humidity, strong electromagnetic fields, direct sunlight, or high-temperature environment. If the product will not be used for a long time, please disconnect it power and remove the battery. Clean: Before cleaning, disconnect the power plug. And use a damp cloth instead of any detergent or soluble liquids to avoid damaging the surface layer.
- Page 18 PRODUCT WARRANTY Dear user, this warranty card is important proof for applying for warranty service. Please cooperate with the salesperson to fill it out and keep it properly. Thank you! Model Number Product Barcode Product Information Name Contact Number User Information Mailing Address Name...
- Page 19 8．Other malfunctions or damages not caused by quality issues of the product itself. In such cases, you should seek solutions from the relevant responsible parties, and GVM will not be held liable. Malfunctions or damages caused by components, accessories, or software not covered by the warranty or beyond the warranty scope that renders the product unable to function properly are not covered by the warranty.
- Page 20 Download APP GVM Official website Facebook Huizhou Latu Film Equipment Co., Ltd. Web: www.gvmled.com B&H Email: bh@gvmled.com GVM Email: support@gvmled.com Amazon Email: amazonsupport@gvmled.com Warehouse Address: 12285 MCNULTY RD, STE 105 PHILADELPHIA, Pennsylvania 19154, USA...
