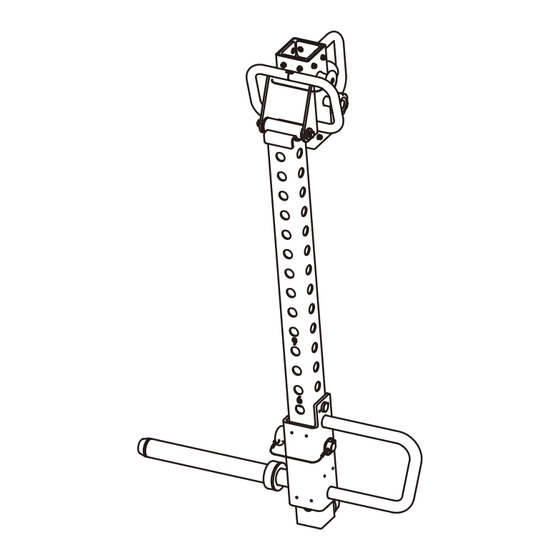

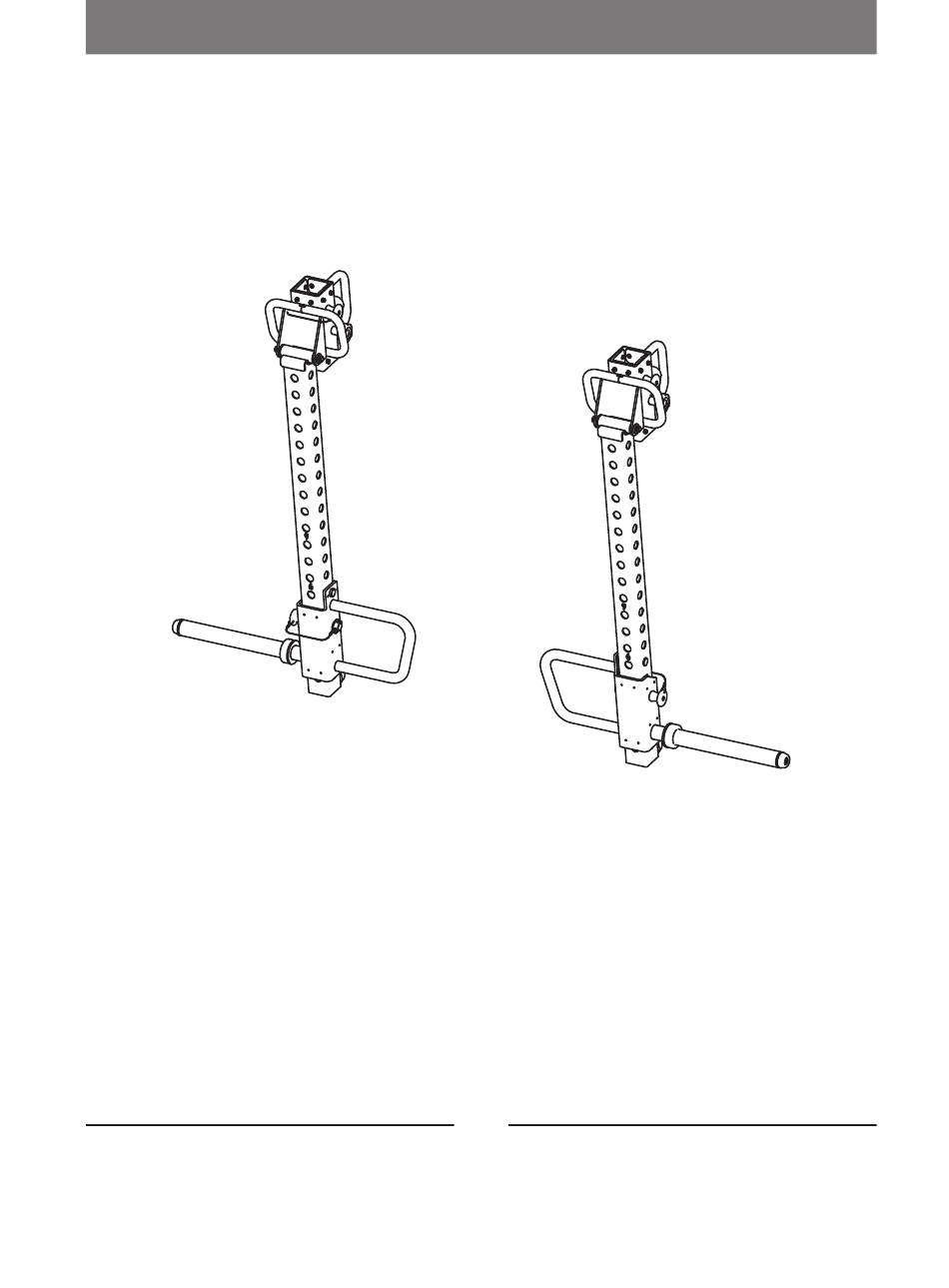

- Page 1 MS13 Jammer Arm OWNER'S MANUAL CAUTION! Read all precautions and instructions in this manual before using this equipment.
- Page 2 Table Of Contents CAUTION! Read all precautions and instructions in this manual before using this equipment. Important Safety Instructions----------------------------------------------------------- 3 Instructions-------------------------------------------------------------------------------- 5 Exploded View and Parts List------------------------------------------------------------ 6 Assembly and Adjust Instructions----------------------------------------------------- 11...
-
Page 3: Important Safety Instructions
Important Safety Instructions Before beginning any fitness program, you should obtain a complete physical examination from your physician. When using exercise equipment, basic precautions should always be taken, including the following: 1. Read all instructions before using the equipment. These instructions are written to ensure your safety and to protect the unit. 2. - Page 4 Important Safety Instructions Personal Safety During Assembly Read each step in the assembly instructions and follow the steps in sequence. Do not skip ahead. If you skip ahead, you may learn later that you have to disassemble components and that you may have damaged the equipment. Assemble and operate the equipment on a solid, level surface.
-
Page 5: Instructions
Instructions Before beginning assembly please take the time to read instructions thoroughly. Please use the various lists in this manual to make sure that all parts have been included in your shipment. When ordering, use part number and description from the lists. -
Page 6: Exploded View And Parts List
Exploded View and Parts List Overall Item No. Part No. Description MS1301ASSY Sliding Support ASSY MS1302ASSY Left Arm Frame ASSY MS1303ASSY Right Arm Frame ASSY MS1304ASSY Arm Frame ASSY MS130500 Pivot Shaft HSPCF4903ASSY Coarse Bolt IN-D21200504V1 Small Circular Plate GB9310DS12 Spring Washer Φ10 GB5781M10*25DS20 Hex Head Bolt M10*25... - Page 7 Exploded View and Parts List Sliding Support ASSY Grade No. Part No. Description MS130100 Sliding Support MS131100 Stripper Plate MS131200 Coarse Pin Shaft MS133100 Quick Bolt HSPCF490310 Coarse Bolt Head HSPCF70561100 Sliding Panel GB956DHS2 Flat Washer Φ6.6*Φ12*1.6 NM6DHS2 Nylon lock Nut M6 CNLM6*20DHS20NL Flat Head Cap Screw M6*20 1.10...
- Page 8 Exploded View and Parts List Left Arm Frame ASSY Grade No. Part No. Description MS130200 Left Arm Frame GB70M12*35*35DS20 Socket Head Cap Screw M12*35 PL1301600 Weight Horn Rubber Donut SL70012000 Weight Horn Plastic Cap HSP70522000 Long Weight Horn Sleeve Plastic Plate Ⅱ SE50011200 Plastic Plate Ⅰ...
- Page 9 Exploded View and Parts List Right Arm Frame ASSY Grade No. Part No. Description MS130300 Right Arm Frame GB70M12*35*35DS20 Socket Head Cap Screw M12*35 PL1301600 Weight Horn Rubber Donut SL70012000 Weight Horn Plastic Cap HSP70522000 Long Weight Horn Sleeve Plastic Plate Ⅱ SE50011200 Plastic Plate Ⅰ...
- Page 10 Exploded View and Parts List Arm Frame ASSY Grade No. Part No. Description MS130400 Arm Frame RS17000400 Square Cushion GB17880.5M10*19.5DCS17 Flat Head Hexagon Riveted Nuts GB70M10*30DS20 Socket Head Cap Screw M10*30 SL70441200 Copper Bearing...
-
Page 11: Assembly And Adjust Instructions
Assembly and Adjust Instructions Assembly Attach the MS13 JAMMER ARM to the MS02 POWER RACK. Note: JAMMER ARM can be connected to the MS00/MS01/MS02. Adjust Instructions 1. Pull the Pin and adjust the Sliding Frame to the appropriate use position with both hands.
