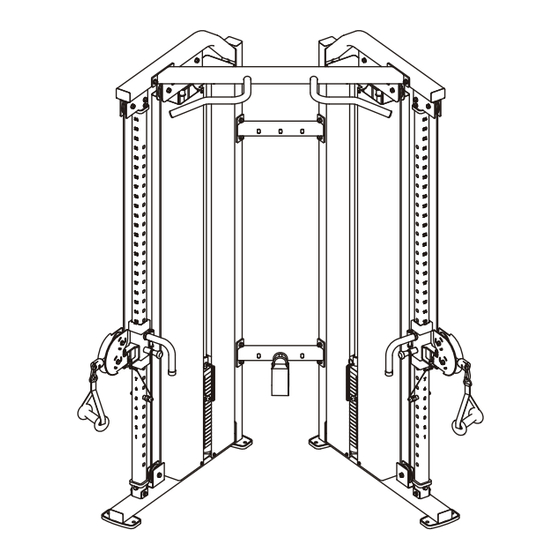

Impulse IF9330 Owner's Manual

Dual adjustable pulley
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IF9330
DUAL ADJUSTABLE PULLEY
OWNER'S MANUAL
22M
CAUTION! Read all precautions and instructions in this manual before
using this equipment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IF9330 and is the answer not in the manual?

Questions and answers

Related Manuals for Impulse IF9330

Summary of Contents for Impulse IF9330

  • Page 1 IF9330 DUAL ADJUSTABLE PULLEY OWNER'S MANUAL CAUTION! Read all precautions and instructions in this manual before using this equipment.

  • Page 2: Table Of Contents

    Table Of Contents CAUTION! Read all precautions and instructions in this manual before using this equipment. Important Safety Instructions----------------------------------------------------------- 3 Instructions-------------------------------------------------------------------------------- 5 Exploded View and Parts List------------------------------------------------------------ 6 Measurement Guide--------------------------------------------------------------------- 16 Assembly Instructions------------------------------------------------------------------ 17 Assembly--------------------------------------------------------------------------------- 18 Adjust Instructions and Exercise Instructions---------------------------------------- 27 Maintenance Schedule------------------------------------------------------------------ 30 General Maintenance Information----------------------------------------------------- 31 Weight Training Tips-------------------------------------------------------------------- 32...

  • Page 3: Important Safety Instructions

    Important Safety Instructions Before beginning any fitness program, you should obtain a complete physical examination from your physician. When using exercise equipment, basic precautions should always be taken, including the following: 1. Read all instructions before using the equipment. These instructions are written to ensure your safety and to protect the unit. 2.
  • Page 4 Important Safety Instructions Personal Safety During Assembly Read each step in the assembly instructions and follow the steps in sequence. Do not skip ahead. If you skip ahead, you may learn later that you have to disassemble components and that you may have damaged the equipment. Assemble and operate the equipment on a solid, level surface.

  • Page 5: Instructions

    Instructions Before beginning assembly please take the time to read instructions thoroughly. Please use the various lists in this manual to make sure that all parts have been included in your shipment. When ordering, use part number and description from the lists.

  • Page 6: Exploded View And Parts List

    Exploded View and Parts List Overall Item No. Part No. Description IF933001ASSY Chin-up Frame ASSY IF933002ASSY Upright Frame ASSY IF933003ASSY Top Connecting Frame ASSY IF933004ASSY Bottom Connection Frame ASSY IF933005ASSY Right Adjustment Frame ASSY IF933006ASSY Left Adjustment Frame ASSY IF933007ASSY Rear Connection Frame ASSY IF93305600 Cable ASSY...
  • Page 7 Exploded View and Parts List Overall...
  • Page 8 Exploded View and Parts List Full Shroud Half Shroud...
  • Page 9 Exploded View and Parts List Chin-Up Frame ASSY Upright Frame ASSY Grade No. Part No. Description Item No. IF93300100 Chin-up Frame BNH0573 Plug Φ32 Grade No. Part No. Description Item No. IF93300200 Upright Frame BS81223100 Foot Plate Plug □50.8*76.2 KPSFID2800 GB17880.5M8*16.5DCS17 Rivet Nut M8...
  • Page 10 Exploded View and Parts List Top Connecting Frame ASSY Cover Holder ASSY Grade No. Part No. Description Item No. IF93300300 Top Connecting Frame M01004800V3 Pulleyφ89 Plug □50.8*76.2 KPSFID2800 GB5780M10*45DS20 Hex Head Bolt M10*45 GB9510DS20 Flat Washer Φ11*Φ20*2 NM10DS2 Nylon Lock Nut M10 GB5780M10*50DS20 Hex Head Bolt M10*50 Grade No.
  • Page 11 Exploded View and Parts List Bottom Connection Frame ASSY Support Plate ASSY Grade No. Part No. Description Item No. IF93300400 Bottom Connection Frame M01004800V3 PulleyΦ89 Plug □50.8*76.2 KPSFID2800 BS81223100 Foot Plate GB5780M10*45DS20 Hex Head Bolt M10*45 GB9510DS20 Flat Washer Φ11*Φ20*2 NM10DS2 Nylon Lock Nut M10 GB17880.5M8*16.5DCS17...
  • Page 12 Exploded View and Parts List Right Adjustment Left Adjustment Frame ASSY Frame ASSY Grade No. Part No. Description Item No. IF93300500 Slip Tube ES70300800ASSY Slip Frame 1 Sub ASSY IT952520V1ASSY Double Pulley Frame ASSY IF93272200ASSY Safe Pin GB5780M8*90DS20 Hex Head Bolt M8*90 GB958DS20 Flat Washer Φ9*Φ16*1.6 NM8DS2...
  • Page 13 Exploded View and Parts List Slip Frame 1 Sub ASSY Grade No. Part No. Description Item No. 5.2.1 ES70300800 Slip Frame 1 5.2.2 IT95251600 Spring Pin 5.2.3 KPSOB2100V1 Wear Sleeve 5.2.4 V39500 Collar Φ25.4,AL 5.2.5 C011PL2500 Grip 5.2.6 V39600 End Cap Φ25.4,AL 5.2.7 YZGB7710-32*3.2N19 Set Screw 10-32*3.2...
  • Page 14 Exploded View and Parts List Double Pulley Frame ASSY Double Pulley Frame Sub ASSY Grade No. Part No. Description Item No. 5.3.1 IT95252000ASSY Double Pulley Frame Sub ASSY 5.3.2 M01004800V3 Pulley Φ89 5.3.3 GB9510DS20 Flat Washer Φ11*Φ20*2 5.3.4 NM10DS2 Nylon Lock Nut M10 5.3.5 GB5780M10*45DS20 Hex Head Bolt M10*45...
  • Page 15 Exploded View and Parts List Slip Frame 2 Sub ASSY Grade No. Part No. Description Item No. 6.2.1 ES70300800 Slip Frame 2 6.2.2 IT95251600 Spring Pin 6.2.3 KPSOB2100V1 Wear Sleeve 6.2.4 V39500 Collar Φ25.4,AL 6.2.5 C011PL2500 Grip 6.2.6 V39600 End Cap Φ25.4,AL 6.2.7 YZGB7710-32*3.2N19 Set Screw 10-32*3.2...
  • Page 16 Exploded View and Parts List Rear Connection Pulley Bracket ASSY Frame ASSY Grade No. Part No. Description Item No. IF93300700 Rear Connection Frame V311400 Rubber Sleeve Grade No. Part No. Description Item No. ES20001800 Pulley Bracket M01004800V7 Pulley Φ89 HF900-03A1002 Hex Flange Nut GB5780M10*45DS20 Hex Head Bolt M10*45...

  • Page 17: Measurement Guide

    Measurement Guide BHCS = Button Head Cap Screw SHCS = Socket Head Cap Screw FHCS = Flat Head Cap Screw HHB = Hex Head Bolt CRPHS = Cross Recessed Pan Head Screw Millimeters Inches Diameter of bolt M6(1/4") M8(5/16") M10(3/8") M12(1/2") M16(5/8") (mm/inch)

  • Page 18: Assembly Instructions

    Assembly Instructions Assembly of the equipment takes professional installers about 2 hours. If this is the first time you have assembled this type of equipment, plan to spend more time. It is strongly recommended to assemble the equipment by professional installers. You may find it quicker, safer, easier to assemble this equipment with the help of a friend, as some of components may be large, heavy or awkward to handle alone.

  • Page 19: Assembly

    Assembly STEP 1 1. Attach two Bottom Connection Frame ASSY (#4) to two Upright Frame ASSY (#2) using: four M10*75 HHB (#20) six Φ11*Φ20*2 Flat Washer (#23) two M10 Nylon Lock Nut (#24) 2. Attach two Rear Connection Frame ASSY (#7) to two Upright Frame ASSY (#2) using: eight M10*100 HHB (#22) sixteen Φ11*Φ20*2 Flat Washer (#23) eight M10 Nylon Lock Nut (#24)
  • Page 20 Assembly STEP 2 1. Attach the Right Adjustment Frame ASSY (#5) and the Leftt Adjustment Frame ASSY (#6) to the Bottom Connection Frame ASSY (#4) using: two 70*70*15 Stop Rubber Bumper (#13) two M10*70 HHB (#21) two M10*75 HHB (#20) eight Φ11*Φ20*2 Flat Washer (#23) four M10 Nylon Lock Nut (#24) 2.
  • Page 21 Assembly STEP 3 1. Attach the Weight Plates to the Bottom Connection Frame ASSY (#4) using: four Guide Rod Φ19*2030 (#10) four Weight Rubber Bumper Φ76*60 (#12) two Top Plate (#11) four Guide Rod Fixing Sleeve Φ25*Φ19*45 (#17) four Spring (#18) 2.
  • Page 22 Assembly 160LBS Grade No. Part No. Description FE97193100 10LBS Weight Plate FEWS01ASSY Weight Stack Space 200LBS Grade No. Part No. Description FE97193100 10LBS Weight Plate 235LBS Grade No. Part No. Description FE97193200 15LBS Weight Plate FEWS01ASSY Weight Stack Space 295LBS Grade No.
  • Page 23 Assembly All weight plate sticker paste schematic diagram...
  • Page 24 Assembly STEP 4 1. Attach the Cable ASSY (#8) according to the view. 2. Attach the D-Strap (#14) to the Cable ASSY (#8) using the Gear Hook (#19). 3. Attach the Leg EXT/Curl Strap (#15) to the hanger for later use. Note: 1.
  • Page 25 Assembly Full Shroud STEP 5 1. Attach 4 Cover Holder ASSY (#26)to Top Connecting Frame ASSY (#3) and Bottom Connection Frame ASSY (#4) using: eight M8*25 BHCS (#31) eight Φ9*Φ16*1.6 Flat Washer (#34) 2. Attach 4 Full Shroud (#25) to Cover Holder ASSY (#26) using: sixteen M6*20 BHCS (#32) Note: 1.
  • Page 26 Assembly Half Shroud STEP 5 1. Attach 2 Cover Holder ASSY (#26) and 2 Support Plate ASSY (#30) to the Bottom Connection Frame ASSY (#4) and Upright Frame ASSY (#2) using: eight M8*25 BHCS (#31) four Φ9*Φ16*1.6 Flat Washer (#34) 2.

  • Page 27: Adjust Instructions And Exercise Instructions

    Adjust Instructions and Exercise Instructions Two Slip Frame Adjustment 1. Adjust the Left or Right Slip Frame to the desired position. 2. Make sure the pin gets into the hole completely. The use of Selector Pin 1. Select an appropriate Weight and put the Selector Pin into the hole on it. 2.
  • Page 28 Adjust Instructions and Exercise Instructions Exercise Instructions...
  • Page 29 Adjust Instructions and Exercise Instructions Exercise Instructions...

  • Page 30: Maintenance Schedule

    Maintenance Schedule COMMERCIAL HOME LATEST DATE ENTRY ROUTINE MAINTENANCE MAINTENANCE Inspect; Links, Pull Pins, Snap Locks, DAILY WEEKLY Swivels, Weight Stack Pins Clean; DAILY WEEKLY Upholstery Inspect; DAILY WEEKLY Cables or Belts and their tension Inspect; WEEKLY 3 MONTHS Accessory Bars, and Handles Inspect;...

  • Page 31: General Maintenance Information

    General Maintenance Information Links, Pull-Pins, Snap Hooks, Swivels, Weight Stack Pins: * Check all pieces for signs of visible wear or damage. * Check springs in snap hooks and pull-pins for proper tension and alignment. * If the spring sticks or has lost its rigidity, replace it immediately. Upholstery: * To ensure prolonged upholstery life and proper hygiene, all upholstered pads should be wiped down with a damp cloth after every workout.

  • Page 32: Weight Training Tips

    Weight Training Tips Use this manual to guide you through the basic exercises you can perform on your equipment. To gain maximum results and avoid possible injury, consult a fitness professional to develop your complete exercise program. Always consult your physician before starting any exercise program. To be successful in your exercise program, it is important to develop an understanding of the basic principles of strength training.
