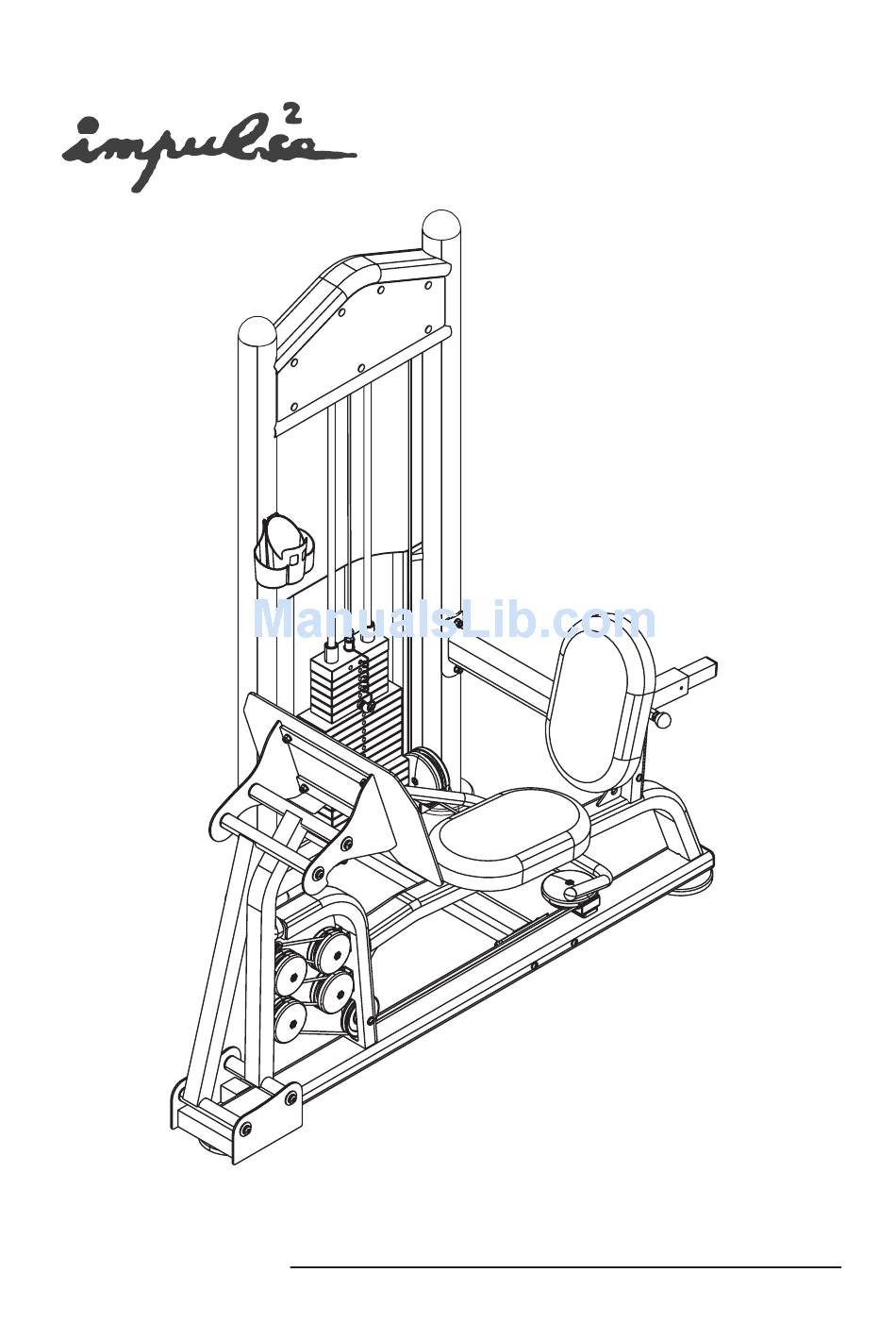

- Page 1 T8010 Leg Press Assembly Instructions...
-
Page 2: Table Of Contents
Table of contents Important Safety Instructions--------------------------------- 1 Exploded View Diagram------------------------------------------ 2 Hardware List-------------------------------------------------- ------ Parts List----------------------------------------------------- ---------- Assembly instructions------------------------------------------... -
Page 3: Important Safety Instructions
Important Safety Instructions Before beginning any fitness program, you should obtain a complete physical examination from your physician. When using exercise equip- ment, basic precautions should always be taken, including the following: * Read all instructions before using the Leg Press These instructions are written to ensure your safety and to protect the unit. -
Page 4: Exploded View Diagram
I 80 Leg Press Exploded View Diagram... -
Page 5: Hardware List
Hardware List 1 10 14 0 Millimeters Inches... -
Page 6: Parts List
Parts List Item No. Description QTY Item No. Description Main Upright Plug Side Upright Yj110 50 Plug Front rocker Guide Sleeve Φ 25 Plug Back rocker Dividing Bushing Connect Frame Plastic Cap Left Handle Right Handle Button Back Pad Support Screw Upper Cross Plastic Washer... -
Page 7: Assembly Instructions
Assembly instructions Assembly of the Leg Press takes professional installers about hours. If this is the first time you have assembled this type of equipment, plan to spend more time. It is strongly recom men ded to assemble the equipment by professional installers. You may find it quicker, safer, easier to assemble this equipment with the help of a friend, as some of components may be large, heavy or awkward to handle alone. - Page 8 Step1 Install The Adj.Foot Plates Align the Adj. Foot Plates(#11) to the Main Upright(#1) and the Side Upright(#2),then secure them by hands.
- Page 9 Step2 Assemble The Frame 1)Attach the Upper Cross(#9)and the Low Cross(#10)to the Main Upright(#1)using: two Allen Bolts(#59) M10×115 two Allen Bolts(#60) M10×120 four Nylon Locknuts(#66) M10 eight Washers(#65) Φ 11× 20×2 Φ 2)Attach the Side Upright(#2)to the the Upper Cross(#9) and the Low Cross(#10)using: two Allen Bolts(#57) M10×95 two Allen Bolts(#61) M10×130...
-
Page 10: Left Handle(
Step3 Assemble The Handles Align the Right Handle(#7)and the Left Handle(#6) to the Side Upright(#2)secure it using: two Allen Bolts(#58) M10×105 four Washers(#65) 11× 20×2 Φ Φ two Nylon Locknuts(#66) M10... - Page 11 Step4 Assemble The Weight Plates 1)Insert both the Guide Rods(#31) into the Main Upright (#1). 2)Slide the Weight Rubber Bumper(#25) down onto each the Guide Rod(#31). 3)Carefully begin sliding the Weight Plate one by one in sequence: #38,#37,#36,#35 4)Align both top ends of the Guide Rods(#31) to the Main Upright(#1)and secure them using: two Allen Bolts(#56) M10×75 two Washers(#65)
-
Page 12: Axostyle 2
Step5 Assemble The Front Rocker and The Back Rocker 1)Insert the Back Rocker(#4)into the Side Upright(#2) and secure it into place using: one Axostyle(#12) two Washer Pads(#28) 11× 38×2 Φ Φ two Spring Washers(#64) Φ two Allen Bolts(#52) M10×25 2)The assembly of the Front Rocker(#3) is the same as the Back Rocker. -
Page 13: Axostyle 2
Step6 Assemble The Connect Frame and The Footplate 1)Insert the Connect Frame (#5) into the Front Rocker (#3) and secure it into place using: one Axostyle(#13) two Washer Pads(#28) 11× 38×2 Φ Φ two Spring Washers(#64) Φ two Allen Bolts(#52) M10×25 2)Insert the Connect Frame (#5) into the Back Rocker (#4) and secure it into place using: one Axostyle(#13) - Page 14 Step7 Route The Weight Cable 1)Put the clip tied on the weight pin leash onto the Top Plate(#35) as shown below,next connect the Weight Cable (#39) to the Top Plate (#35). 2)Route the Weight Cable (#39) up and over the two Pul- leies A (#21), next, secure them to the Main Upright (#1) using: two Allen Bolts (#55) M10×45...
- Page 15 Clip Top plate Jam nut For step 7...
- Page 16 Step8 Assemble The Pads 1)Attach the Seat Pad A(#24) to the Back Pad Support( #8) using: two Washers(#65) Φ 11× 20×2 Φ two Allen Bolt(#53) M10×30 2)Insert the Seat Pad Sopport(#8) into the Guide Slee- ves (#43) and secure it intoplace with the Long Pop Pin(#27).
-
Page 17: Weight Shroud 1
Step9 Assemble The Decal Plates 1)Attach the two Decal Plates(#15,#16) to the Main Up- right (#1) using: fourteen Butttons(#47) 2)Attach the Weight Shroud (#17)to the Main Upright(#1) using: four Bolt Covers(#50) four Plastic Washers(#49) four Chamfer Bolts (#48) M5×10 3)Attach the Plastic Cap(#46) to the Main Upright(#1) using: two Allen Bolts(#51) The Front Decal Plate(#15) with the exercise instr-...
