Installation Instructions
REV 3 04/15/20
Hardware
M6 Bolt
M8 Bolt
M10 Bolt
M12 Bolt
Torque Specifications
3 ft-lbs.
7 ft-lbs.
16 ft-lbs.
28 ft-lbs.
ATTENTION: Use correct torque settings to avoid
damaging the running boards and or mounting
brackets. Failure to do so will void your warranty.
If you have any questions please contact our technical
team at 1-866-717-6645
Part No.
3125

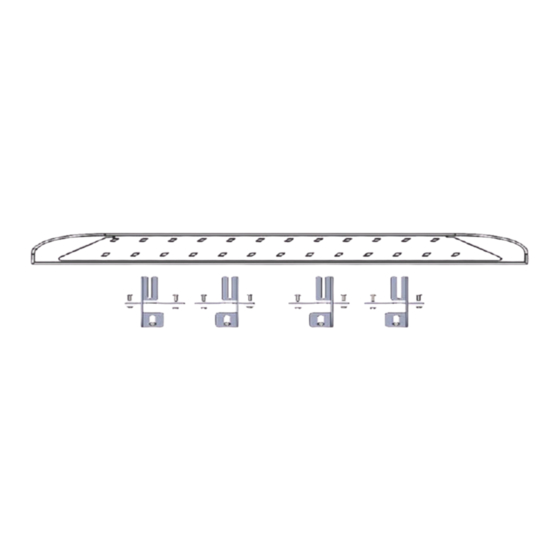

Product: Running Boards
Application:
Mitsubishi
Outlander 2007+
Outlander Sport 2011+
Level of Difficulty:
1
2 3 4 5
Installation Time: 60 min
Advertisement
Related Manuals for Romik 3125
Summary of Contents for Romik 3125
- Page 1 Part No. 3125 Product: Running Boards Application: Mitsubishi Outlander 2007+ Installation Instructions Outlander Sport 2011+ Level of Difficulty: 2 3 4 5 Installation Time: 60 min REV 3 04/15/20 Hardware Torque Specifications ATTENTION: Use correct torque settings to avoid M6 Bolt 3 ft-lbs.
- Page 2 Video Installation Installation Instructions 3125 Bracket Kit Instruction: NOTE: Depending on the model and trim you may have to either remove or trim a plastic cover in the rear section mounting area. Step 1: Locate front mounting locations and hardware as per 1 page of this installation manual Step 2: Install provided HTC 230 as shown on Figure 1.
- Page 3 Running Board Installation Instructions 1) Flip your Romik running boards onto a flat surface, make sure to place the running boards on a towel or cardboard in order to protect the surface Figure 1. 2) Loosen the M8 bolts on back of your running boards Figure 2. Depending on your model there Will be either 6 or 8 bolts installed per side.
