REV 3 01/08/2020

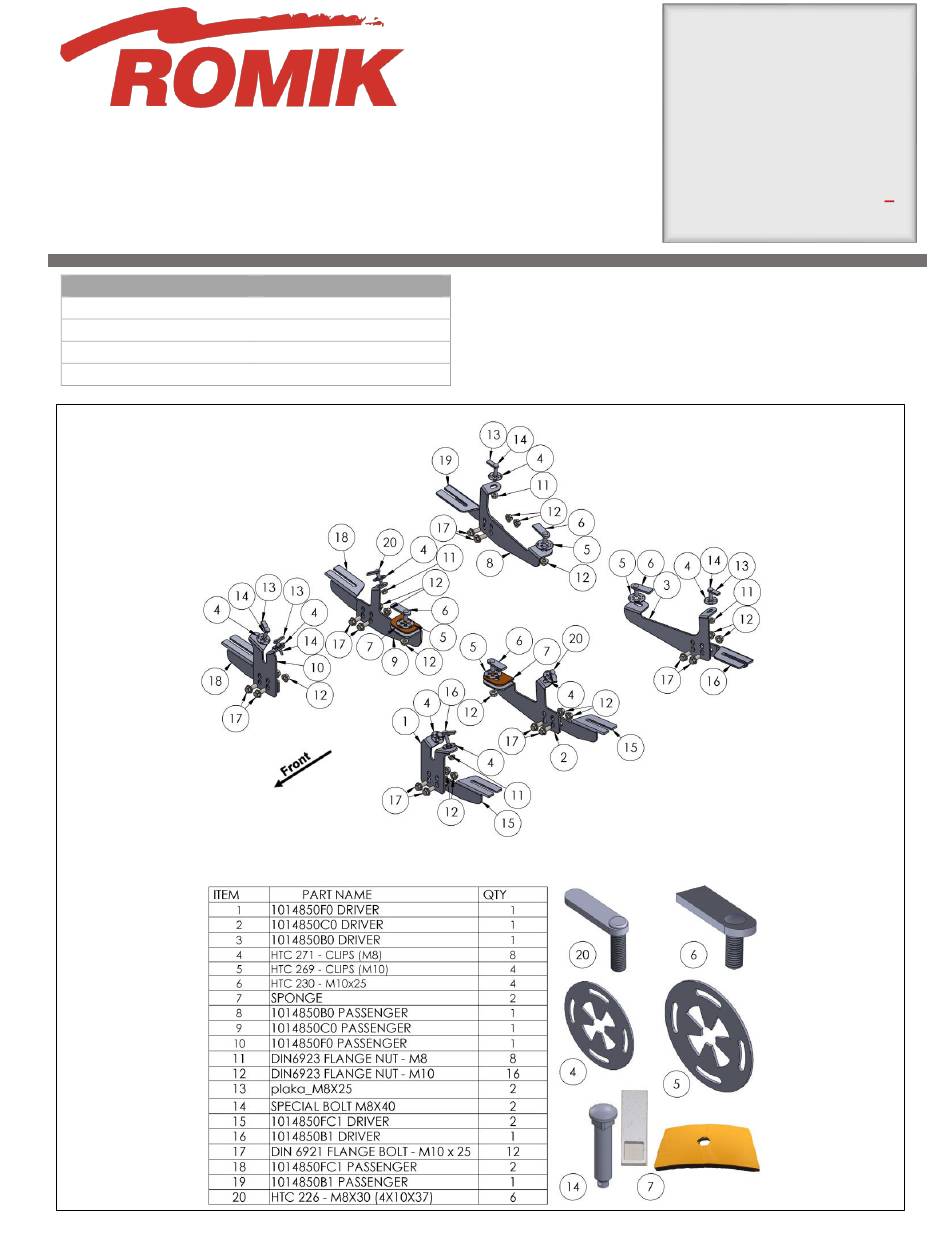

Hardware
M6 Bolt
M8 Bolt
M10 Bolt
M12 Bolt
Torque Specifications
3 ft-lbs.
7 ft-lbs.
16 ft-lbs.
28 ft-lbs.
ATTENTION: Use correct torque settings to avoid
damaging the running boards and or mounting
brackets. Failure to do so will void your warranty.
If you have any questions please contact our technical
team at 1-866-717-6645
Part No.
1014
Product: Running Boards
Application:
Audi Q7 2017+
Audi Q8 2019+
Bentley Bentayga 2017+
Level of Difficulty:1 2 3 4
Installation Time: 180 Min
5
Advertisement
Table of Contents
Related Manuals for Romik 1014
Summary of Contents for Romik 1014
- Page 1 Part No. 1014 Product: Running Boards Application: Audi Q7 2017+ Audi Q8 2019+ Installation Instructions Bentley Bentayga 2017+ Level of Difficulty:1 2 3 4 Installation Time: 180 Min REV 3 01/08/2020 Hardware Torque Specifications ATTENTION: Use correct torque settings to avoid M6 Bolt 3 ft-lbs.
- Page 2 Installation Instructions 1014 Bracket Video Installation Instruction: Step 1: Remove plastic panels under vehicle, do not discard hardware as it will be re-used. Step 2: Locate front passenger mounting locations and hardware as per 1 page of this installation manual Note: Q7 and Bentayga use different bracket position than Q8 this will be explained in manual.
- Page 3 Installation Instructions 1014 Bracket Step 6: Install running board base onto bracket using supplied M10 hwardware Figure 5. Do not tighten. Figure 5 Q7 and Bentayga Step 7: Locate middle bracket location and hardware Step 8: Remove factory plugs as shown on Figure 6 Figure 6 Step 9: Install HTC 230 on larger hole and HTC 226 on smaller hole Figure 7 apply supplied foam pad.
- Page 4 Installation Instructions 1014 Bracket Step 10: Install bracket as shown on Figure 8 Do not tighten. Install running board base onto bracket using supplied M10 hardware Figure 9. Do not tighten Figure 8 Figure 9 Q7 and Bentayga Step 11: Locate rear bracket location and hardware Remove rubber plug NOTE Please pay attention to outer hole insert location.
- Page 5 Installation Instructions 1014 Bracket Step 13: Install rear bracket as shown on figure 12. Do not tighten Step 14: Install running board base onto bracket using supplied M10 hardware Figure 13. Do not tighten Figure 13 Q7 and Bentayga This mount has a slight bend Step 15: Locate Driver’s side front bracket, remove rubbler plugs as shown on Figure 14...
- Page 6 Step 19: Proceed to last page of this manual for running board install instructions and torque values Step 20: After securing running boards proceed to trim plastic panels as needed. For Technical support please call our team at 1-866-717-6645 and one of our experts will assist you with this installation Thank you for choosing Romik.
- Page 7 Running Board Installation Instructions 1) Flip your Romik running boards onto a flat surface, make sure to place the running boards on a towel or cardboard in order to protect the surface Figure 1. 2) Loosen the M8 bolts on back of your running boards Figure 2. Depending on your model there Will be either 6 or 8 bolts installed per side.
