Installation Instructions
REV 3 01/23/20
Hardware
M6 Bolt
M8 Bolt
M10 Bolt
M12 Bolt
Torque Specifications
3 ft-lbs.
7 ft-lbs.
16 ft-lbs.
28 ft-lbs.
Part No.

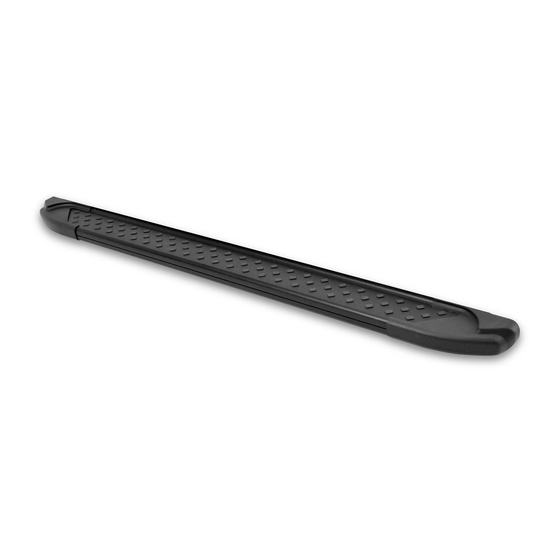

Product: Running Boards
Application:
Jeep GC 2011 – 2020 all
Dodge Durango 2011+
Level of Difficulty: 1
Installation Time: 60 Min
ATTENTION: Use correct torque settings to avoid
damaging the running boards and or mounting
brackets. Failure to do so will void your warranty.
If you have any questions please contact our technical
team at 1-866-717-6645
2614
Except Summit
2
3 4 5
Advertisement
Table of Contents
Related Manuals for Romik RAL
Summary of Contents for Romik RAL
- Page 1 Part No. 2614 Product: Running Boards Application: Jeep GC 2011 – 2020 all Except Summit Installation Instructions Dodge Durango 2011+ Level of Difficulty: 1 3 4 5 Installation Time: 60 Min REV 3 01/23/20 Hardware Torque Specifications ATTENTION: Use correct torque settings to avoid M6 Bolt 3 ft-lbs.
- Page 2 Part No. 2614 Product: Running Boards Application: Jeep GC 2011 – 2020 Summit Installation Instructions Level of Difficulty: 1 3 4 5 Installation Time: 60 Min REV 3 01/23/20 Hardware Torque Specifications ATTENTION: Use correct torque settings to avoid M6 Bolt 3 ft-lbs.
- Page 3 Instruction: NOTE: Jeep Grand Cherokee models visible gap due to body shape of the vehicle, if not sure stop before installing and visit www.Romik.com to review images Step 1: Locate front mounting locations and hardware as per 1 page of this installation manual Dodge Durango models and all Jeep GC models.
- Page 4 Video Installation Installation Instructions 2614 Bracket Kit Instruction: Step 6: Locate middle bracket install are and remove rubber plug #3 Figure 5. Step 7: Install supplied HTC 230 as shown Figure 6. Figure 6 Figure 5 HTC 230 Step 8: Install bracket top part using supplied M6 hardware Figure 7. Step 9: Install bracket lower portion using supplied M10 hardware Figure 8.
- Page 5 NOTE: We recommend that you place a level on top of the running boards to assist you before finalizing the installation. For Technical support please call our team at 1-866-717-6645 and one of our experts will assist you with this installation. Thank you for choosing Romik.
- Page 6 Running Board Installation Instructions 1) Flip your Romik running boards onto a flat surface, make sure to place the running boards on a towel or cardboard in order to protect the surface Figure 1. 2) Loosen the M8 bolts on back of your running boards Figure 2. Depending on your model there Will be either 6 or 8 bolts installed per side.
