1. Installation
Installation Guide
1.5 Installation Procedure

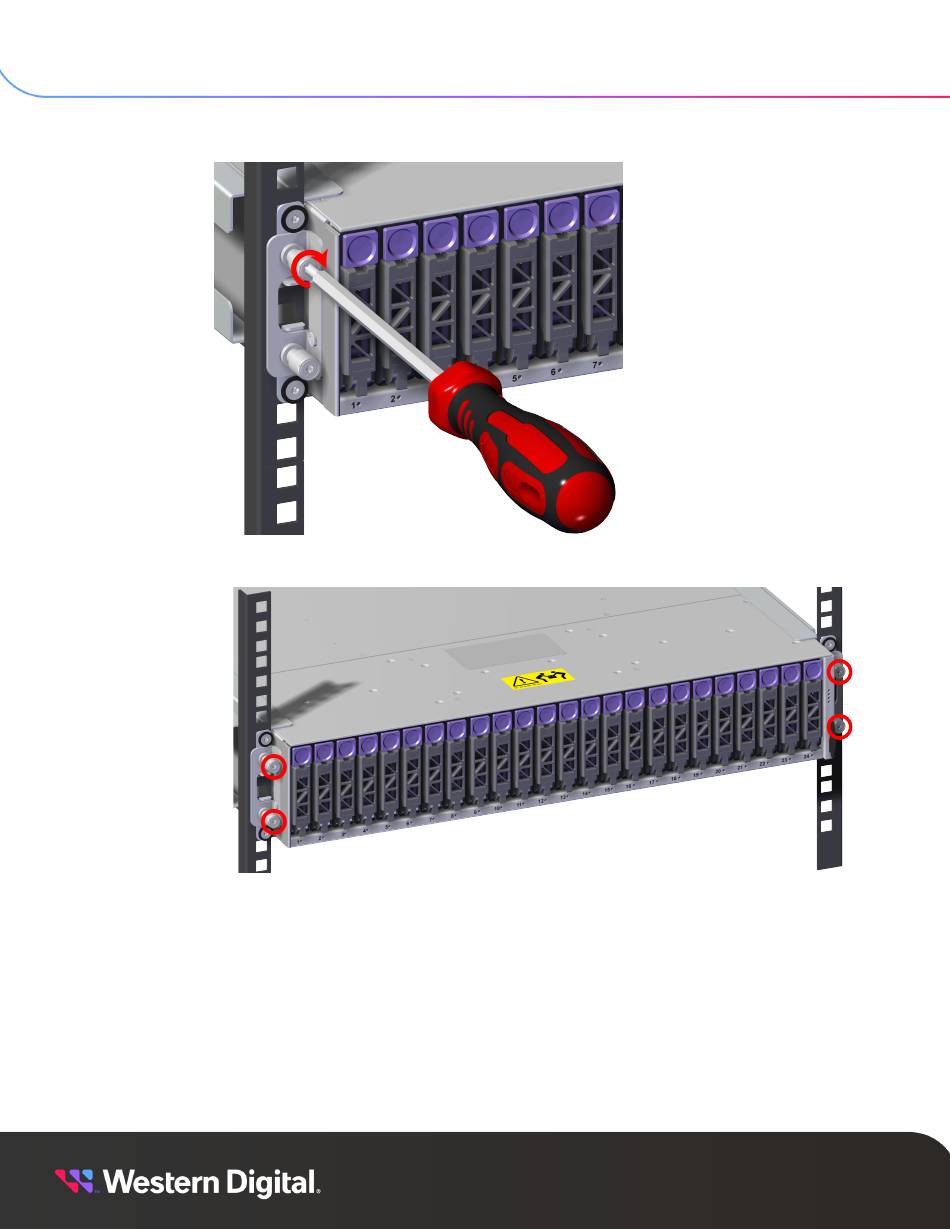

Figure 14: Captive Screw Tighten
Figure 15: Captive Screw Location
Step 5 :
Connect the Ethernet cable into the Ethernet Management port on the IOM.
13
