Western Digital OpenFlex Data24 4000 Series Installation Manual page 16

Installation Guide

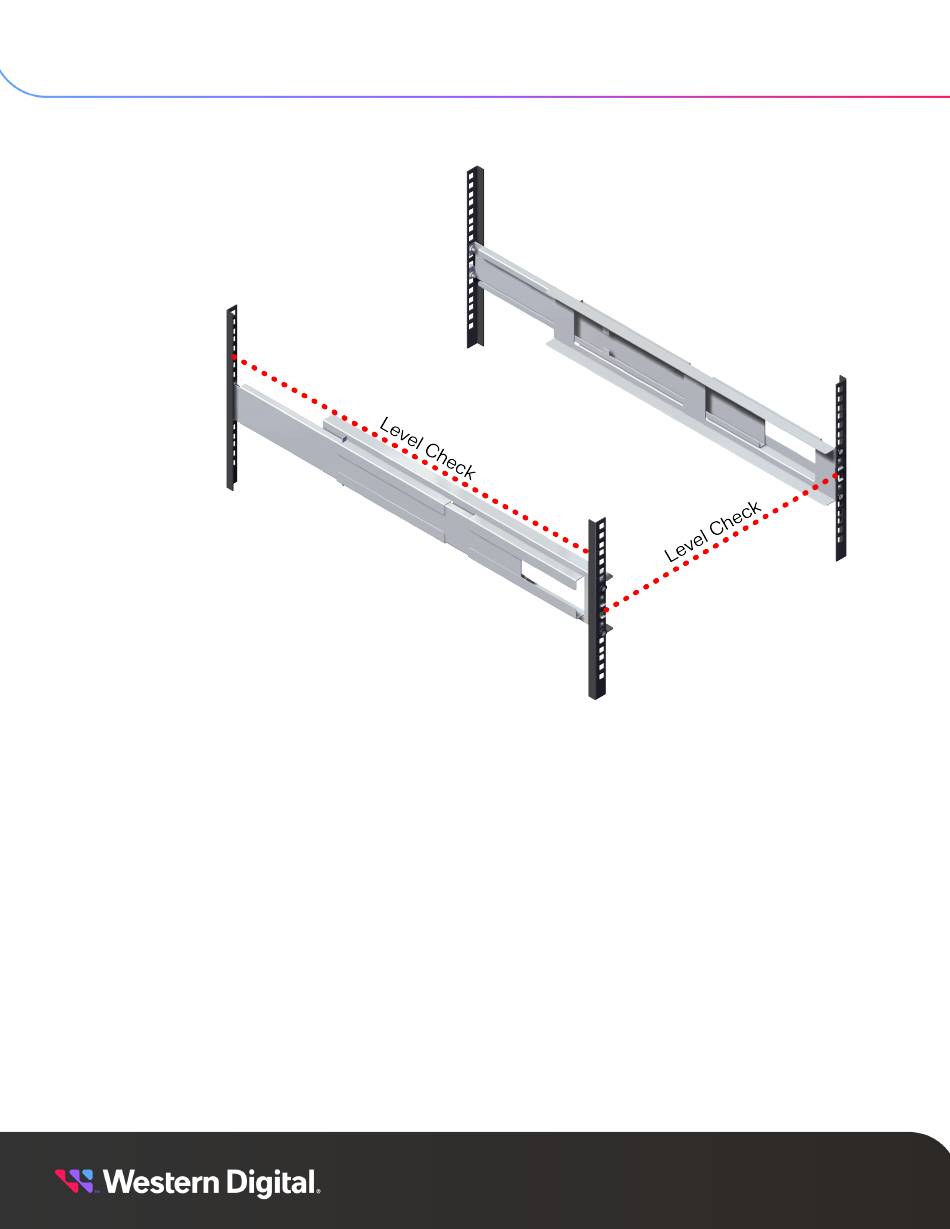

Figure 12: Rail Level Check
Step 3 : Install the remaining Rail Assembly in the same way the first was installed.
Install the Chassis onto the rack mounted rails.
Step 4 :
a. Carefully slide the Chassis onto the rails until the rack mounts are flush with the mounts on
the rails.
1. Installation
1.5 Installation Procedure
11
