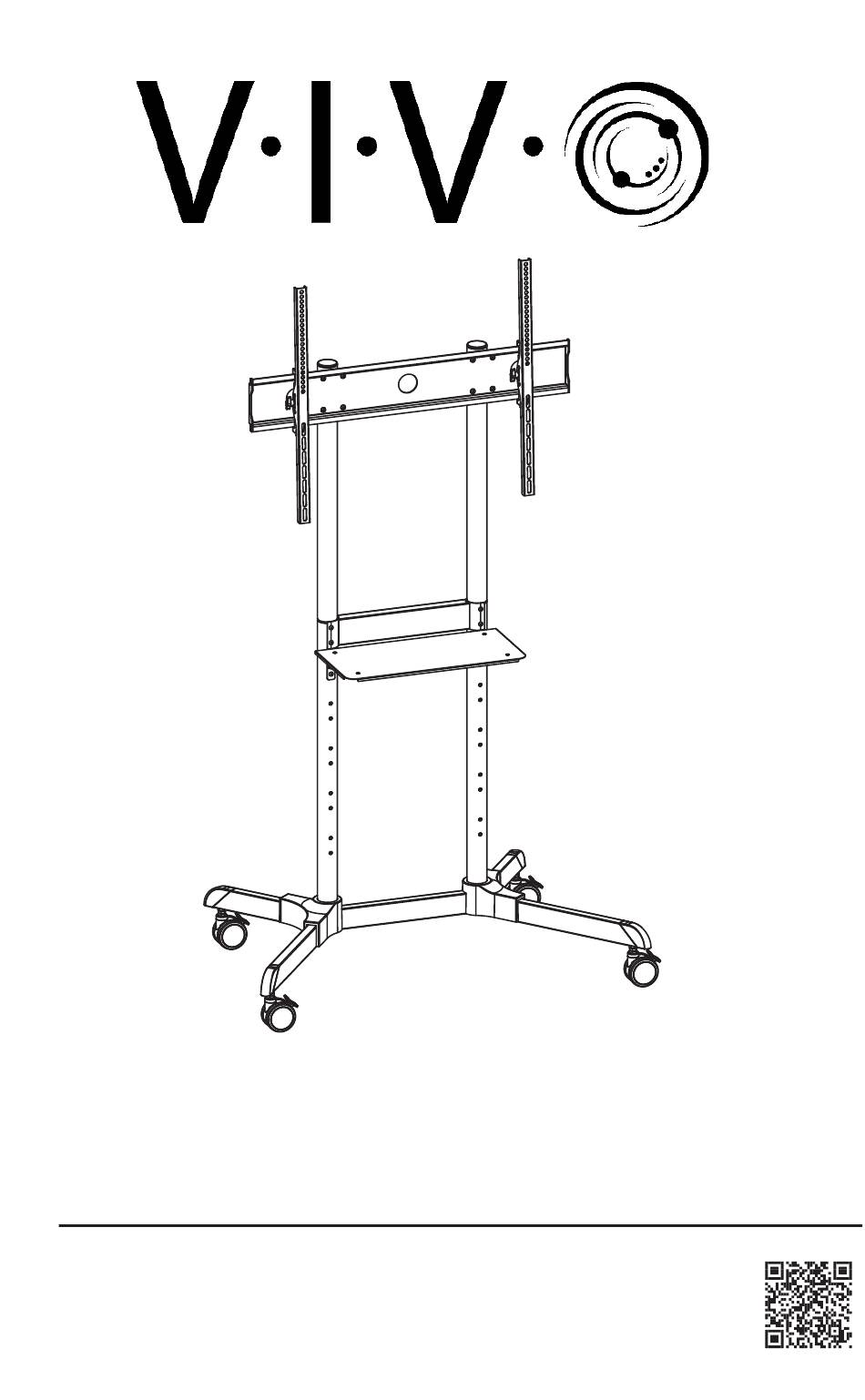

Mobile Large Screen TV Cart
SKU: STAND-TV100E
Instruction Manual
Assembly Video & Product Info
www.vivo-us.com/products/stand-tv100e

Advertisement

loading
Need help?

Need help?

Do you have a question about the STAND-TV100E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vivo STAND-TV100E

  • Page 1 Mobile Large Screen TV Cart SKU: STAND-TV100E Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/stand-tv100e...
  • Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3 Package Contents A (x2) B (x2) C (x1) D (x4) Long Feet Short Feet Base Cable Clip F (x2) E (x2) Upper Pole Lower Pole G (x1) H (x2) I (x2) J (x1) Crossbar Pole Bracket Pole Bracket Pad Mounting Plate K (x1) L (x1) Right VESA...
  • Page 4 Included Hardware & Tools S-A (x28) S-B (x4) S-C (x4) S-D (x4) S-E (x8) M6x10mm M8x20mm M8x14mm M4x6mm Screw Screw Set Screw Screw Washer M-A (x4) M-B (x4) M-C (x4) M-D (x4) M-E (x4) M4x12mm M4x30mm M6x20mm M6x35mm M8x20mm Screw Screw Screw Screw...
  • Page 5 ASSEMBLY STEPS STEP 1 Thread Casters (M) into Feet (A,B). Tighten using Wrench (T-A). Leveling Casters If the caster can’t touch the ground, loosen the lower nut as shown to adjust the caster to proper position, then tighten the upper nut. STEP 2 Separate Left and Right Cover (C1, C2) from Base (C) and place them aside.
  • Page 6 STEP 2 - cont’d Attach Long Feet (A) and Short Feet (B) to Base (C) using M6x10mm Screws (S-A) and 4mm Allen Wrench (T-B). Long Feet (A) and Short Feet (B) should be installed to opposite sides of Base (C). Long Feet side will be the “Front,” Short Feet side will be the “Back.”...
  • Page 7 STEP 3 Slide Lower Poles (E) into Base (C). Secure using M8x20mm Screws (S-B) and 5mm Allen Wrench (T-C). Opening Lowers Poles (E) must be installed with Openings facing towards Short Feet (B).
  • Page 8 STEP 4 Slide Covers (C1,C2) down Lower Poles (E) and onto Base (C). Insert Upper Poles (F) into Lower Poles (E). Attach Crossbar (G) to the top two holes on Lower Poles using M6x10mm Screws (S-A) and 4mm Allen Wrench (T-B). Opening on Upper Poles should face the Back of assembled stand.
  • Page 9 STEP 5 Hold Pole Bracket Pads (I) onto Pole Brackets (H) and slide the assembly down Upper Poles (F) until you reach the desired height of your TV. Secure Pole Brackets in place using M8x14mm Set Screws (S-C) and 4mm Allen Wrench (T-B).
  • Page 10 STEP 6 Attach Mounting Plate (J) to Pole Brackets (H) using M6x10mm Screws (S-A), M6 Washers (S-E), and 4mm Allen Wrench (T-B). Attach Level (T-D) onto Mounting Plate. Plate Not Level? Loosen the M8x14mm Set Screws (S-C) on the Pole Brackets and adjust as neeeded.
  • Page 11 STEP 7 Attach VESA Brackets (K,L) to your TV using appropriate Screws (M-A thru M-G), Washers (M-H thru M-J), and Spacers (M-K thru M-M). M-A thru M-G M-H thru M-J Locking Screws M-K thru M-M Locking Screws on VESA Brackets (K,L) must be facing downwards.
  • Page 12 STEP 8 Hang your TV onto the Mounting Plate (J). Tighten both Locking Screws using the Phillips end on 5mm Allen Wrench (T-C). Locking Screw...
  • Page 13 STEP 9 Attach Shelf Brackets (O) to Lower Poles (E) by partially installing M6x10mm Screws (S-A) using the 4mm Allen Wrench (T-B). Do not fully tighten these screws yet. PLEASE READ Do not fully tighten M6x10mm Screws yet. Attach Shelf (N) to Shelf Brackets using M4x6mm Screws (S-D) and the Phillips end on 5mm Allen Wrench (T-C).
  • Page 14 STEP 10 Insert Cable Clips (D) into the openings in Poles (E,F). Route Cables through the Cable Clips.
  • Page 15 [ THIS PAGE INTENTIONALLY LEFT BLANK ]...
  • Page 16 LAST UPDATED: 7/30/24 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
