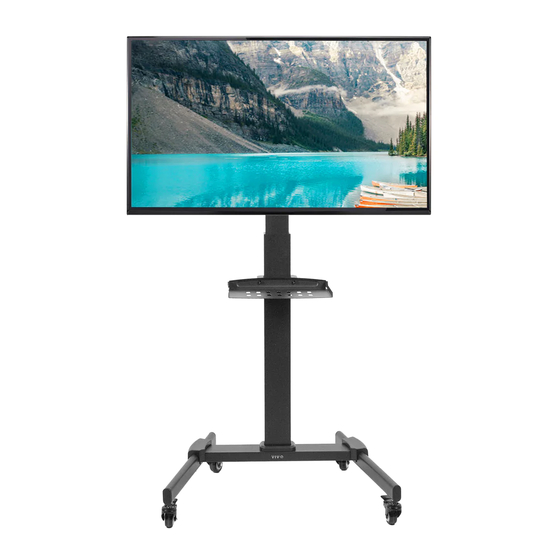

Black Mobile TV Cart
Instruction Manual
SKU: STAND-TV05L
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-tv05l
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo STAND-TV05L
Summary of Contents for Vivo STAND-TV05L
- Page 1 Black Mobile TV Cart Instruction Manual SKU: STAND-TV05L Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-tv05l GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 77lbs 11lbs Failure to do so may result in serious injury. (35kg) (5kg) CART SHELF Phillips Screwdriver ASSEMBLY STEPS STEP 1 Attach legs (B) to center base (C) using M6x35 bolts (O) through the sides and M6x16 bolts (P) through the top, and tighten bolts with the Allen wrench (S).
- Page 4 STEP 3 Install cable grommets (M) and top cover (R) to the column. Tighten an M6x16 bolt (P) into the back as shown. The bolt will function as a stopper to prevent the column from lowering too far. STEP 4 Attach TV plate (D) to column using M6x16 bolts (P) with washers (Q) and tighten with the Allen wrench (S).
- Page 5 STEP 6 OPTION A: Flat Back TV Install VESA brackets (E, F) on the back of the TV using 14mm bolts (M-A or M-B) with square washers (M-F). OPTION B: Curved or Recessed Back TV Install VESA brackets (E, F) on the back of the TV using 30mm or 50mm bolts (M-C, M-D or M-E) with square washers (M-F) and spacers (M-G, M-H).
- Page 6 STEP 7 Hang TV with VESA brackets onto TV plate as shown, and tighten security bolts using a Phillips screwdriver.
- Page 7 STEP 8 Organize cables using cable grommets and the cable clip on the back of the shelf support. STEP 9 Loosen the knobs on the VESA brackets to adjust TV tilt, then retighten.
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
