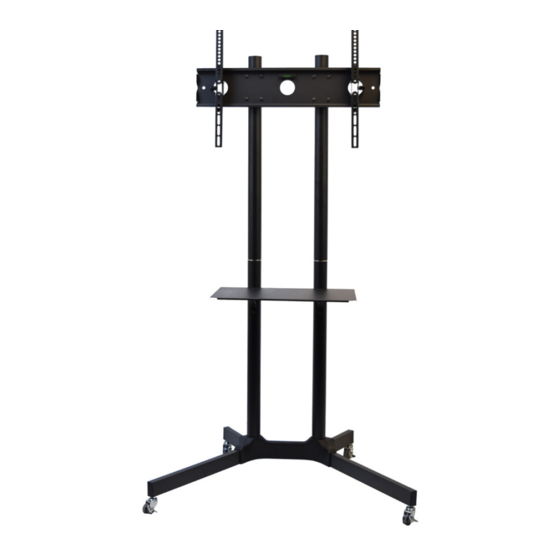

Black Mobile TV Cart
Instruction Manual
SKU: STAND-TV03E
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-tv03e
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-TV03E
Summary of Contents for Vivo STAND-TV03E
- Page 1 Black Mobile TV Cart Instruction Manual SKU: STAND-TV03E Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-tv03e GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Tools Needed
TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 110 lbs 10 lbs Failure to do so may result in serious injury. (49.9 kg) (4.54 kg) CART SHELF Phillips Screwdriver WARNING: CHOKING HAZARD SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED. ASSEMBLY STEPS STEP 1 Attach wheels (9) to the long and short square... - Page 4 STEP 3 Attach the base poles (5) to the tube connector (3) using M6x10 bolts (13) in the back. Attach the pole connectors (7) to the tops of each base pole (5). Carefully thread the pole connector in perfectly straight to avoid cross-threading. If you feel resistance, back the connector out and restart.
- Page 5 STEP 5 5a: Slide the square plate connectors and rubber 5b: Attach the square plate (19) to the square plate pads (10) over the top of the poles (6) and connectors (10) with 8 6x10 Allen head bolts (13) tighten the grub screw using tool kit (15). and 8 M6 washers (25) using tool kit (15).
- Page 6 STEP 7 Attach the TV arm set (20) to the square plate (19). Tighten the safety bolts on the bottom of the TV arm set (20) to secure the television to the stand. STEP 8 8a: If additional leveling and height adjustment 8b: For wire management, cables can be run is required after television is attached, repeat through the tops of the pole covers (8) and down...
- Page 7 STEP 9 To attach the shelf (16), first attach the shelf supports (17) to the bottom poles (5) using 4 M6x10 Allen head bolts (13). Once secured, attach the shelf (16) to the supports (17) using 4 M4x6 countersink bolts (18). Lift the tube connector cover (4) and attach M5x6 set screw (14) to the inside holes of the tube connector.
- Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
