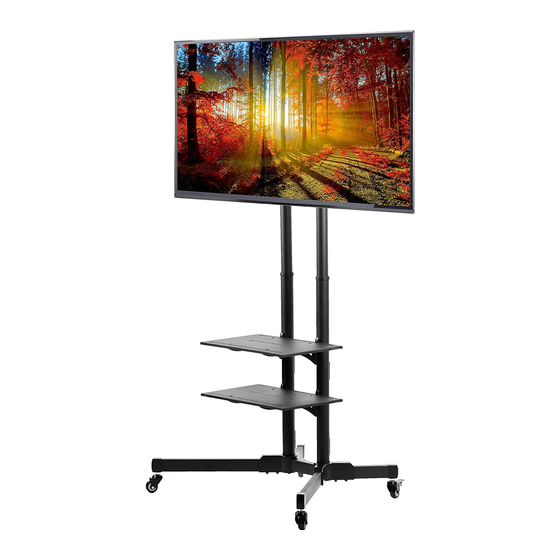

Black Mobile TV Cart
Instruction Manual
SKU: STAND-TV01B
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-tv01b
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo STAND-TV01B
Summary of Contents for Vivo STAND-TV01B
- Page 1 Black Mobile TV Cart Instruction Manual SKU: STAND-TV01B Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-tv01b GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 110lbs Failure to do so may result in serious injury. (49.9kg) WARNING: CHOKING HAZARD Phillips SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT Screwdriver SUPERVISION IS REQUIRED. ASSEMBLY STEPS STEP 1 Remove plastic covers from base (C).
- Page 4 STEP 2 Press button on bottom half of poles (G) to extend the two halves. Slide button into top hole to secure pole length. Insert rubber cable grommets (H) into holes as shown in diagram. Insert poles into base (C) and secure using bolts (P-C) and washers (P-D). Tighten using 8mm allen wrench (P-I).
- Page 5 STEP 3 Attach plate (I) to poles using bolts (P-B) washers (P-E) and nuts (P-F) at the desired height. Tighten using 5mm allen wrench (P-H) and wrench (P-G). STEP 4 Slide shelf brackets (L,K) into shelves (J). Mount shelves to poles by hanging the hooks in the slots at the desired heights as shown in the diagram.
- Page 6 STEP 5 Attach TV brackets (N,M) to back of television using bolts (M-A,M-B) and metal spacers (M-F) using Phillips head screwdriver. Attach TV brackets (N,M) to back of television using bolts (M-C, M-D, M-E) and metal spacers (M-F) using Phillips head screwdriver. If bolts are too long, spacers (M-G, M-H) may be required.
- Page 7 STEP 6 Hang TV brackets onto plate (I) and tighten security bolt on the bottom of brackets using Phillips head screwdriver to secure television in place. STEP 7 To adjust TV tilt angle, loosen knobs on TV brackets, then re-tighten when TV is at the desired position. Manage cables.
- Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
