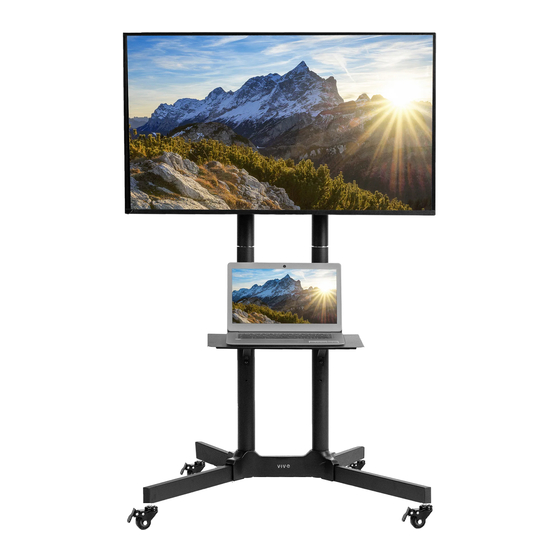

Mobile TV Cart
Instruction Manual
SKU: STAND-TV03E/W
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-tv03e
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-TV03E/W
Summary of Contents for Vivo STAND-TV03E/W
- Page 1 Mobile TV Cart Instruction Manual SKU: STAND-TV03E/W Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-tv03e GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303...
-
Page 2: Tools Needed
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Package Contents
PACKAGE CONTENTS A (x2) B (x2) C (x1) D (x2) E (x2) Long Leg Short Leg Base w/Cover Rubber Sleeves Lower Pole F (x2) G (x2) H (x4) I (x4) J (x2) Upper Pole Pole Pole Cap Caster Plastic Pad Connector K (x2) L (x4) -
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Attach Casters (I) to Long and Short Legs (A, B) using Wrench (T-D). STEP 2 Separate Base w/Cover (C) into Base (C1) and Cover (C2). Attach Long and Short Legs (A, B) to Base (C1) using M6x60mm Screws (S-A), Threaded Plates (L), and 5mm Allen Wrench (T-C). - Page 5 STEP 3 Thread Pole Connecters (G) onto Lower Poles (E). Insert Lower Poles (E) into Base (C) and secure using M6x10mm Screws (S-B) and 4mm Allen Wrench (T-B).
- Page 6 STEP 4 Slide Cover (C2) over Lower Poles (E) and onto Base (C). To ensure a correct fit, make sure side with logo is facing the front. Place Rubber Sleeves (D) into the holes on the backside Lower Poles (E). Front Back Thread Upper Poles (F) into Pole Connectors (G).
- Page 7 STEP 5 Hold Plastic Pad (J) inside of Adapter Bracket (K) and slide onto Upper Pole (F). Tighten the set screw on Adapter Bracket (K) to secure using 4mm Allen Wrench (T-B). When positioning, ensure that the set screw is facing the back and that the mounting holes are facing the front of the assembled cart.
- Page 8 STEP 6 Clip Level (T-E) onto Mounting Plate (O). STEP 7 Secure VESA Bracket Set (P) to back of TV using appropriate Screws (M-A thru M-G) with Washers (M-H thru M-J), and Spacers (M-K thru M-M). M-A thru M-G M-H thru M-J M-K thru M-M...
- Page 9 STEP 8 Make adjustments as necessary to Adapter Brackets (K) to level out Mounting Plate (O). Tighten set screws on Adapter Brackets (K) using 4mm Allen Wrench (T-B). Hang TV with VESA Brackets (P) onto Mounting Plate (O). Tighten locking screws on VESA Brackets (P) using the Phillips end on 5mm Allen Wrench (T-C).
- Page 10 STEP 9 Attach Shelf Supports (N) to Lower Poles (E) using M6x10mm Screws (S-B) and 4mm Allen Wrench (T-B). Do not fully tighten screws yet. Attach Shelf (M) to Shelf Supports (N) using M4x6mm Screws (S-D) and the Phillips end on 5mm Allen Wrench (T-C). Fully tighten M6x10mm Screws (S-B) with 4mm Allen Wrench (T-B).
-
Page 11: Cable Management
CABLE MANAGEMENT Cable manage through the top of Upper Poles (F), the slots on Lower Poles (E), and through the bottom of Base w/Cover (C). - Page 12 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
