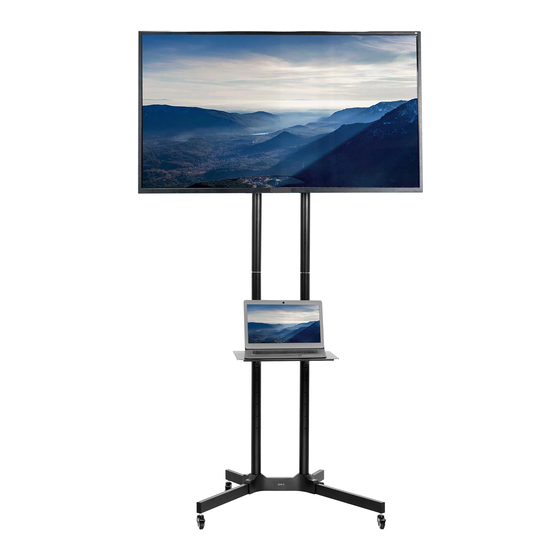

Large Mobile TV Cart
SKU: STAND-TV13E
Instruction Manual
Assembly Video & Product Info
www.vivo-us.com/products/stand-tv13e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAND-TV13E and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo STAND-TV13E

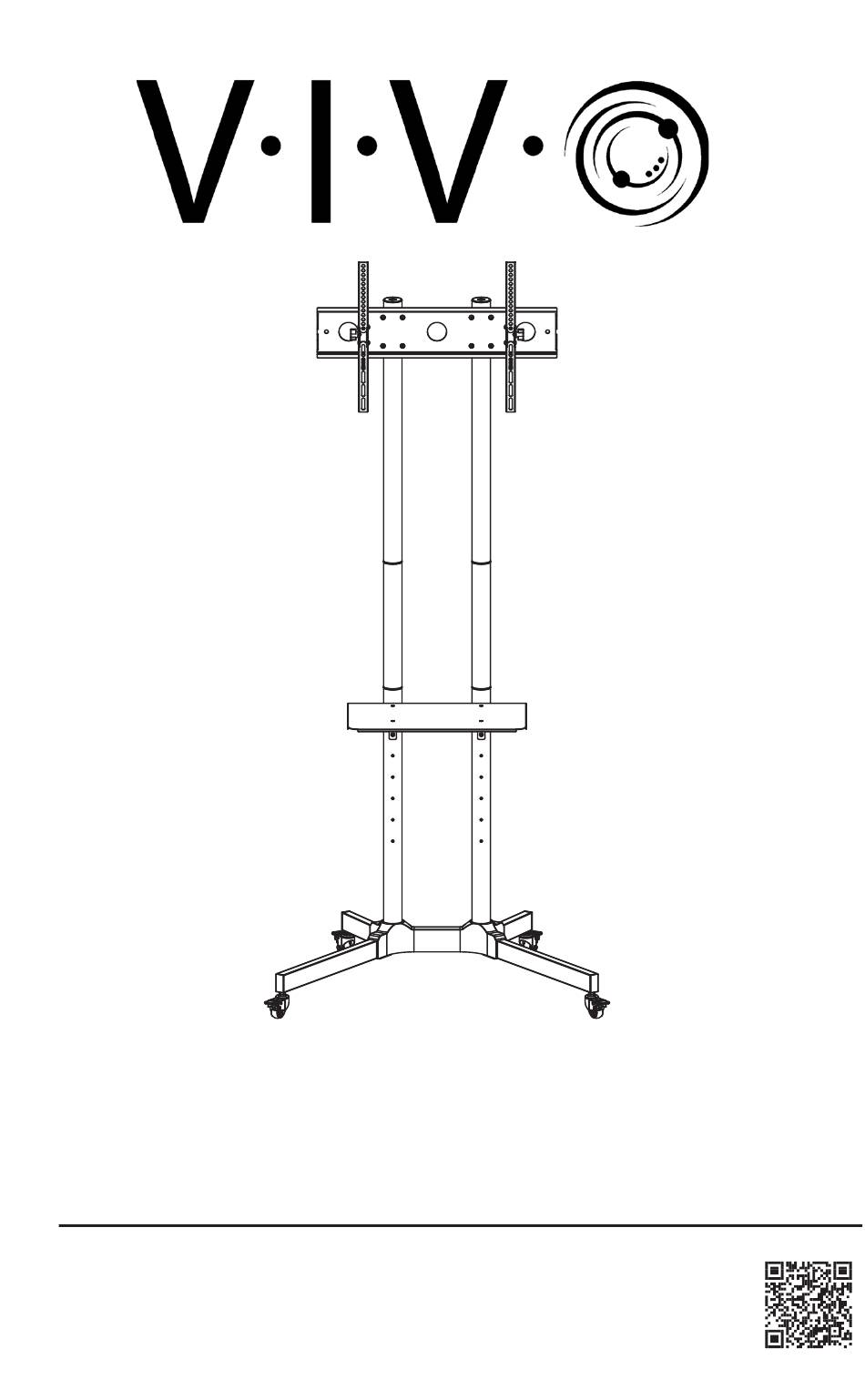

  • Page 1 Large Mobile TV Cart SKU: STAND-TV13E Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/stand-tv13e...
  • Page 2: We're Here For You

    If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3: Package Contents

    Package Contents A (x2) B (x2) C (x1) D (x2) Long Feet Short Feet Base Rubber Ring E (x2) F (x2) G (x2) Lower Pole Upper Pole Pole Connector H (x4) I (x4) J (x2) K (x2) Pole Cap Casters Pole Bracket Pad Pole Bracket L (x4)
  • Page 4: Included Hardware & Tools

    Included Hardware & Tools S-A (x8) S-B (x8) S-C (x14) S-D (x2) S-E (x4) M6 Large Washer M6x60mm Screw M6x10mm Screw M5x6mm Set Screw M4x6mm Screw M-A (x4) M-B (x4) M-C (x4) M-D (x4) M-E (x4) M4x12mm Screw M4x30mm Screw M6x20mm Screw M6x35mm Screw M8x20mm Screw...
  • Page 5: Assembly Steps

    ASSEMBLY STEPS STEP 1 Thread Casters (I) into Long and Short Feet (A,B) using Wrench (T-D). STEP 2 Separate Base (C) into Base (C1) and Cover (C2).
  • Page 6 STEP 3 Secure Long & Short Feet (A,B) to underside of Base (C1) using M6x60mm Screws (S-B), M6 Large Washers (S-A), Foot Brackets (L), and 5mm Allen Wrench (T-C). Assembly Note: Short Feet (B) should be installed on the back of Base (C1), which is labeled to indicate the back side.
  • Page 7 STEP 4 Carefully thread Pole Connectors (G) into the top of Lower Poles (E), ensuring they thread in straight. Tighten to fully secure. WARNING: Pole Connector threads may be sharp. When connecting, grip the Pole Connector with a cloth or towel to achieve sufficient force when threading into the poles.
  • Page 8 Slide Cover (C2) down Lower Poles (E) and onto Base (C1). Cover (C1) should be installed with VIVO logo facing forward. Gently push Rubber Rings (D) into the Cable Slots on Lower Poles (E).
  • Page 9 STEP 5 Carefully thread Center Poles (Q) onto Lower Poles (E), then thread Upper Poles (F) onto Center Poles. Only tighten poles when you are certain they are threading in straight. Connect Pole Caps (H) together to create two caps, and insert into the tops of Upper Poles.
  • Page 10 STEP 6 Hold Pole Bracket Pads (J) onto Pole Brackets (K), and slide together onto Upper Poles (F) at the desired height of your TV. Secure in place using 4mm Allen Wrench (T-B). Ensure Pole Bracket Set Screws are facing the back of assembled stand. Set Screws Push Bracket Pads (J) into Pole Brackets (K) and hold...
  • Page 11 STEP 8 Secure VESA Bracket Set (P) to the back of your TV using appropriate Screws (M-A through M-G) with Washers (M-H through M-J), and Spacers (M-K through M-M) and Phillips end of 5mm Allen Wrench (T-C). Locking Screws should be facing down towards the bottom of the TV...
  • Page 12 STEP 9 Adjusting TV Plate Positioning Before mounting your TV, ensure the TV Plate (O) is level using Level (T-E). If Plate needs adjusted for levelness or height, loosen Set Screws on Pole Brackets (K) using 4mm Allen Wrench (T-B) and adjust as needed.
  • Page 13 STEP 10 Attach Shelf Supports (N) to Lower Poles (E) using M6x10mm Screws (S-C) and 4mm Allen Wrench (T-B). Do not fully tighten screws yet. 1. Attach Shelf (M) to Shelf Supports (N) using M4x6mm Screws (S-E) and the Phillips end on 5mm Allen Wrench (T-C).
  • Page 14 STEP 11 Lift up Base Cover (C2) and install M5x6mm Set Screws (S-D) using 2.5mm Allen Wrench (T-A).
  • Page 15: Cable Management Options

    Cable Management Options: Route and manage cables using any combination of provided slots. 1. Top of Upper Pole 2. Back of Lower Poles 3. Bottom of Base...
  • Page 16: Last Updated

    LAST UPDATED: 5/6/24 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
