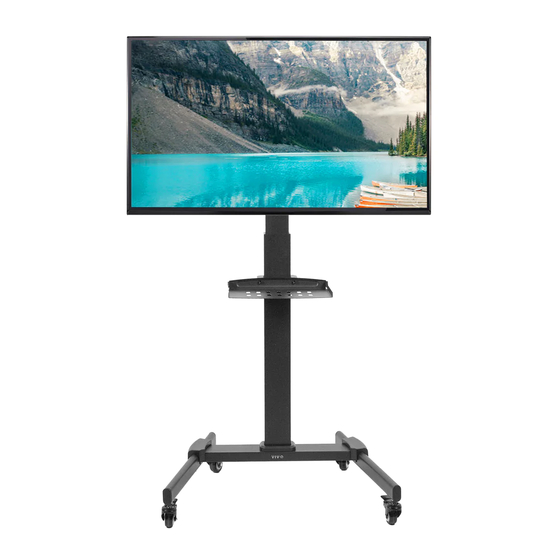

Black Mobile TV Cart
Instruction Manual
SKU: STAND-TV05L
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-tv05l
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-TV05L
Summary of Contents for Vivo STAND-TV05L
- Page 1 Black Mobile TV Cart Instruction Manual SKU: STAND-TV05L Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-tv05l GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 77lbs 11lbs Failure to do so may result in serious injury. (35kg) (5kg) CART SHELF Phillips Screwdriver ASSEMBLY STEPS STEP 1 Attach Legs (B) to Center Base (C) using M6x35 Screw (S-B) through the sides and M6x16 Screws (S-A) through the top, and tighten screws with 5mm Allen Wrench (T-A).
- Page 4 STEP 3 Install Cable Grommets (M) and Top Cover (N) to the column. Insert M6x16 Screw (S-A) into the back as shown and tighten using 5mm Allen Wrench (T-A). The screw will function as a stopper to STEP 4 Attach TV Plate (D) to Column (A) using M6x16 Screws (S-A) with D6 Washers (S-D) and tighten with 5mm Allen Wrench (T-A).
- Page 5 STEP 6 OPTION A: Flat Back TV Install Left VESA Bracket (E) and Right VESA Bracket (F) on the back of the TV using Screws (M-A or M-B) with Square Washers (M-F). OPTION B: Curved or Recessed Back TV IInstall Left VESA Bracket (E) and Right VESA Bracket (F) on the back of the TV using Screws (M-C, M-D or M-E) with Square Washers (M-F) and Spacers (M-G, M-H).
- Page 6 STEP 7 Hang TV with VESA brackets onto TV plate as shown, and tighten security bolts using a Phillips screwdriver.
- Page 7 STEP 8 Organize cables using cable grommets and the cable clip on the back of the shelf support. STEP 9 Loosen the knobs on the VESA brackets to adjust TV tilt, then retighten.
- Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
