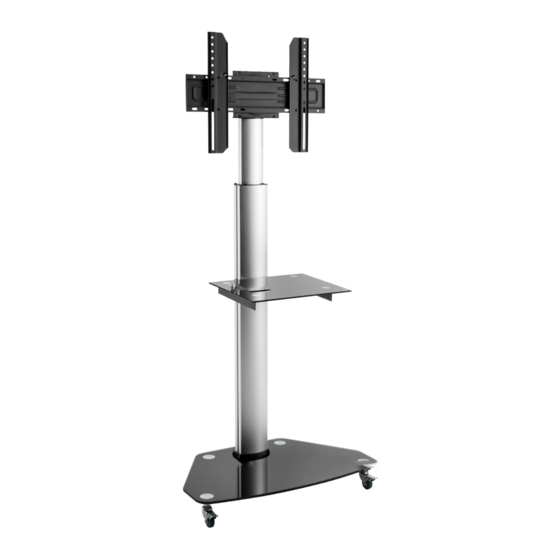

- Page 1 Silver Mobile TV Cart Instruction Manual SKU: STAND-TV02D Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-tv02d help@vivo-us.com www.vivo-us.com 309-278-5303...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED Phillips Level Wrench Screwdriver DO NOT EXCEED WEIGHT CAPACITY. 88lbs 11 lbs Failure to do so may result in serious injury. (40 kg) (5 kg) DVD SHELF ASSEMBLY STEPS STEP 1 Install casters (O) and locking casters (P) to base (M) by screwing into mounts. Adjust casters to sit level when placed on the floor, then secure by tightening nuts against base with a wrench (P-I).
- Page 4 STEP 3 Slide the support arms (B,C) into column rails to desired height. Make sure both support arms are at the same level and tighten all screws with Allen wrench (P-I). √ STEP 4 Insert inner column (K) into the outer column (L). Thread the knob (N) into the column to secure. Attach plastic cover (J) to the outer column using M6x10 bolts (P-A) and tighten with Allen wrench (P-I).
- Page 5 STEP 5 Insert plastic sleeve (I) into opening in TV plate (D). Place TV plate onto column, making sure the column is inserted through the plastic sleeve, and secure with M6x16 bolts (P-C) using Allen wrench (P-I). STEP 6 Attach glass shelf (A) to the installed support arms using M6x8 bolts (P-D), M6x6 bolts (P-E) and D6 washers (P-F).
- Page 6 STEP 7 OPTION A: Flat Back TV Attach VESA brackets (E, F) to back of TV using screws (M-A or M-B) and square washers (M-F). For TV with 200mm VESA pattern, secure brackets with holes facing inward. For TV with 300mm or larger pattern, secure brackets with holes facing out.
- Page 7 STEP 8B To rotate TV to portrait view, remove 2 screws from the back of the TV plate as shown. Rotate the TV, then secure using previously removed screws. 90° STEP 9 Route the cables along the back of the column. Attach the cable covers (G) to the column to hold the cables in place.
- Page 8 - 83% within < 2hr - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
