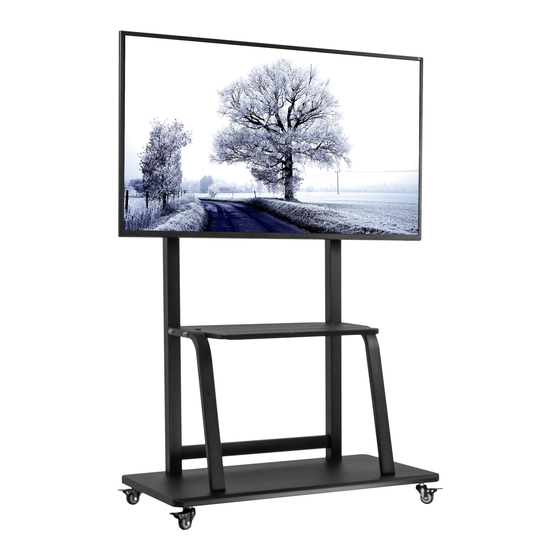

Black Heavy Duty Mobile TV Cart
Instruction Manual
SKU: STAND-TV100C
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-tv100C
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo STAND-TV100C
Summary of Contents for Vivo STAND-TV100C
- Page 1 Black Heavy Duty Mobile TV Cart Instruction Manual SKU: STAND-TV100C Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-tv100C GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 Thread Casters (G) to Base (B) using Wrench (T-B). Casters (G) can be be locked into place by pressing down on the locking levers. STEP 2 Assemble Shelf Supports (D) to Main Support (A) using M8x65mm Screws (S-C), M8 Washers (S-D), and 6mm Allen Wrench (T-A). - Page 4 STEP 3 Secure frame assembly to Base (B) using M8x40mm Screws (S-B), M8 Washers (S-D), and 6mm Allen Wrench (T-A). STEP 4 Assemble Shelf (C) to Shelf Supports (D) using M8x65mm Screws (S-C), M8 Washers (S-D) and M8 Nuts (S-A). Tighten using Wrench (T-B) and 6mm Allen Wrench (T-A).
- Page 5 STEP 5 Attach TV Plate (E) to Main Support (A) using M8x65mm Screws (S-C), M8 Washers (S-D), M8 Nuts (S-A), 6mm Allen Wrench (T-A), and Wrench (T-B). Plate can be mounted in one of five heights, shown below. TV Plate Mounting Options...
- Page 6 STEP 6 Attach VESA Brackets (F) to TV using Screws (M-A through M-D), M8 Washers (M-E), Spacers (M-F, M-G), and 6mm Allen Wrench (T-A). Loosen the security screws on VESA Brackets (F) using 6mm Allen Wrench (T-A).
- Page 7 STEP 7 Place TV with VESA Brackets (F) onto TV Plate (E). Tighten security screws on VESA Brackets (F) with 6mm Allen Wrench (T-A) to secure in place.
- Page 8 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
