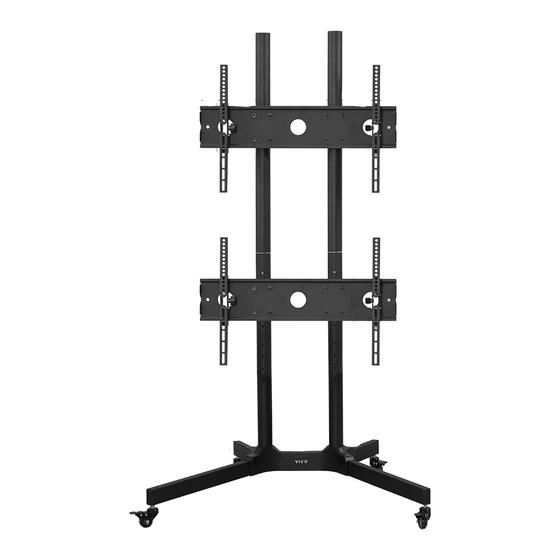

Dual Screen Mobile TV Cart
Instruction Manual
SKU: STAND-TV03E2
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-tv03e2
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-TV03E2
Summary of Contents for Vivo STAND-TV03E2
- Page 1 Dual Screen Mobile TV Cart Instruction Manual SKU: STAND-TV03E2 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-tv03e2 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Assembly Steps
TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 70 lbs Failure to do so may result in serious injury. (31.75 kg) EACH MOUNT Phillips Screwdriver WARNING: CHOKING HAZARD SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED. ASSEMBLY STEPS STEP 1 Attach Casters (I) to Long Feet (A) and Short... - Page 4 STEP 3 Thread Pole Connectors (G) onto bottom Poles (E). Carefully thread the pole connector in perfectly straight to avoid cross-threading. If you feel resistance, back the connector out and restart. Once you are certain the connector is going in straight, use additional force to tighten. Assemble Bottom Poles (E) to Base (C) using M6x10mm Screws (S-C) in the back.
- Page 5 STEP 6 STEP 7 Assemble Universal Plates (L) to Universal Plate Slide Universal Plate Connectors (J) and Plastic Connectors (J) with M6x10mm Screws (S-C) and Spacers (K) onto Top Poles (F) and tighten the M6 Washers (M-I). Tighten using 4mm Allen Wrench set screw using 2.5mm Allen Wrench (T-A).
- Page 6 STEP 10 Assemble VESA Brackets (M, N) to Universal Plate (L). Tighten the security screws on the bottom of VESA Brackets (M, N) to secure the television to the stand. Security Screws STEP 11 If additional leveling and height adjustment is required after television is attached, repeat step 8.
- Page 7 STEP 12 For wire management, cables can be run through the tops of the Pole Covers (H) and through the cables management slots in the back of Bottom Poles (E) down through Base (C). STEP 13 Lift Base Cover (D) off of Base (C) and insert M5x6mm Set Screws (S-D) into the inside holes of Base (C).
