Features
Dimensions (Front and Side View)
Camera
Keypad
Call Button
Terminal Block Connections
Alternate Power Input:
1 = +8 to +12VDC @ 1000mA Regulated Power Supply*
2 = Power Ground*
3
4
Relay Contact:
(1 A at 30 VDC for continuous loads)
3 = Relay Common
4 = Relay Normally Open Contact
5 = Sense Input
6 = Sense Ground
7 = Remote Switch "A"
8 = Remote Switch "B"
*Contacts 1 and 2 on the terminal block are only for
powering the device from a non-PoE 12VDC power
source as an alternative to Network PoE power. Use of
these contacts for any other purpose will damage the
device and void the product warranty.
RTFM Button
RTFM button (SW1)
© 2024, CyberData Corporation, ALL RIGHTS RESERVED
7.480 [190.00]
Dimensions are in Inches [Millimeter]
Use a 3.17 mm (1/8-inch) flat blade
screwdriver for the terminal block screws
Wire (IN)
Tin Leads
Approx. 1/4" or
6mm
8
Terminal Block
can accept 16 AWG wire
When the device is operational and linked to a network,
you can use the Reset Test Function Management
(RTFM) button (SW1 [see picture]) to announce the
device's IP address or restore the device to the factory
default settings.
To announce the device's current IP address:
•
Press and release the RTFM button within a five
second window.
Note
The device will use DHCP to obtain the new IP
address (DHCP-assigned address or default to
10.10.10.10 if a DHCP server is not present).
To restore the device to factory default settings:
•
Press and hold the RTFM button for longer than five
seconds until you hear the device announce that it is
restoring the factory default settings.
931336C
Dimensions (Rear View and Mounting Holes)
2.386 [60.59]

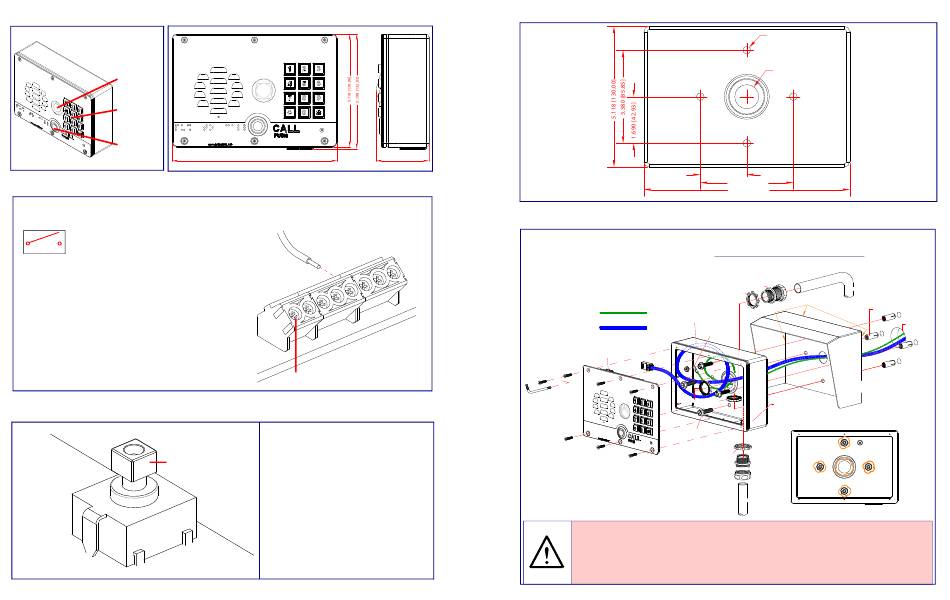

Wall Mounting and Conduit Mounting with Ground Cable and Network Cable Installation
Note: To mount the device, use methods
compliant with local electrical codes.
Note: More installation and mounting information
1
is illustrated in the Operations Guide.
Torx Key
GENERAL ALERT
Quick Reference
Quick Reference
1.690 [42.93]
3.380 [85.85]
7.480 [190.00]
Dimensions are in Inches [Millimeters]
Note: For flush mount installations, purchase the 011442 Flush
Mount Kit, 2x (sold separately). For more information, go to:
https://www.cyberdata.net/products/011442
1/2" Compression Connector
Sealing Lock Nut
Ground Cable
Cables to Create
Service Loop
Network Cable
Ground Cable to
Ground Stud
J1
Network Cable to J1
Compression Connector Nut
1/4" Anchor Screw
Faceplate Mounting Screws
Faceplate
Sealing Lock Nut
Phillips / Security Torx Drive
Assembly
1/2" Compression Connector
1/2" Conduit
Caution
Equipment Hazard: Do not use an electric or power screwdriver to fasten the face plate and PCB assembly to
the gang box. To prevent over-torque damage to the gasket, do not apply more than 10 inch-pounds force.
Over-torquing will cause the gasket to tear, risk moisture intrusion, and effectively void the manufacturer's
warranty.
931336C
Ø0.280 [Ø7.11]
(4 Places)
Ø0.876 [Ø22.25]
1/2" Conduit
Apply RTV Silicone Sealant Around Mounting Holes and
Backside Perimeter of the Back Box or Weather Shroud
1/4" Concrete Wall Anchor
Hole in Wall
Weather Shroud
Part Number: 011188A
(Sold Separately)
Hole Plug Assembly
Apply RTV Silicone Sealant Around Mounting Holes and
Backside Perimeter of the Back Box or Weather Shroud
*
© 2024, CyberData Corporation, ALL RIGHTS RESERVED
