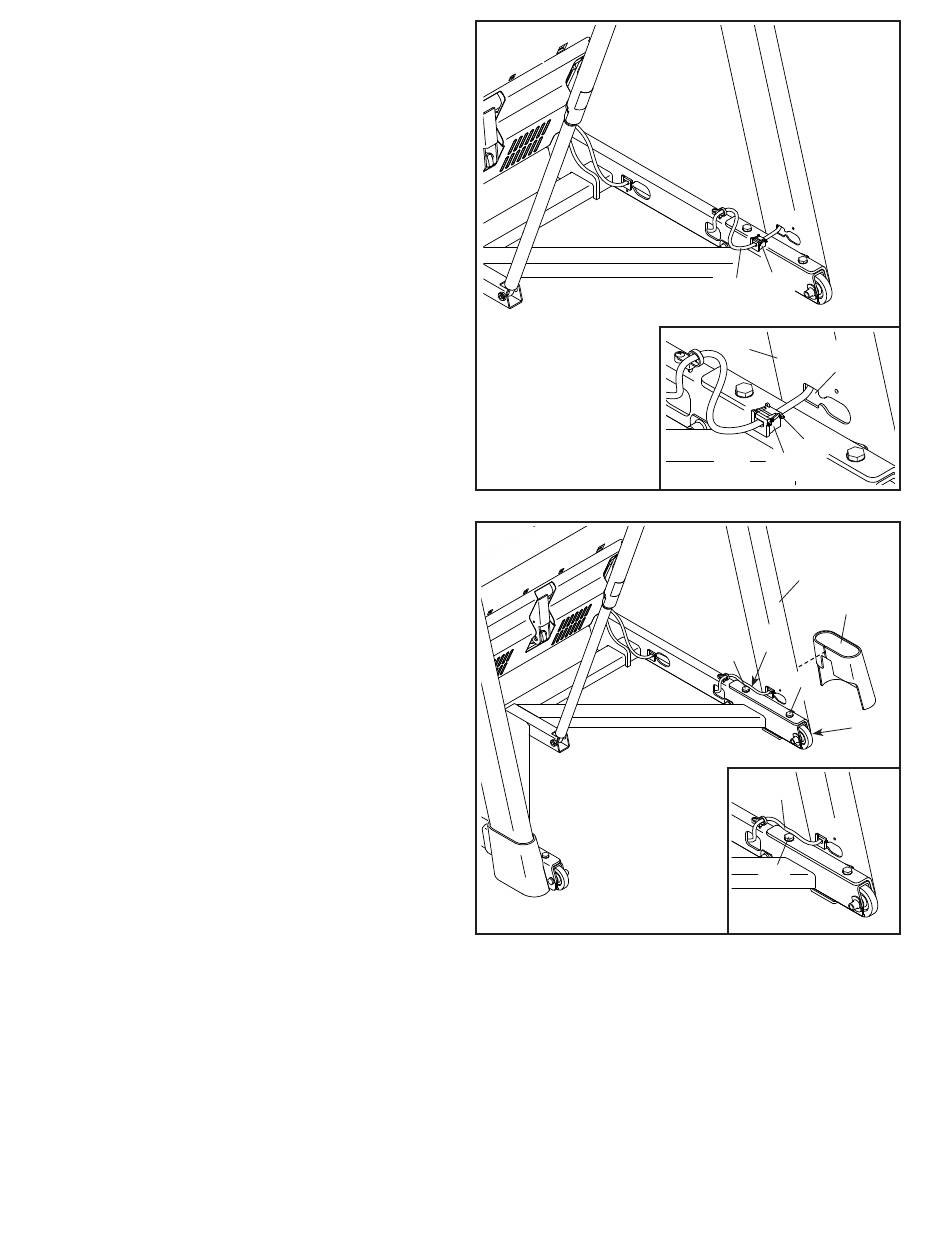

16. Locate the Square Grommet (68) on the Upright
Wire (74).
See the inset drawing. Insert the small ear (U)
on the Square Grommet (68) into the square
hole (V) in the Right Upright (73), and then press
the Square Grommet into the square hole.
See step 11. Pull the two Plastic Ties (45) tight,
and carefully cut off the ends.
17. Firmly tighten the four indicated Screws (4, 33).
See the inset drawing. Make sure that the
Upright Wire (74) is on the indicated side of the
3/8" x 2 3/8" Screw (4).
Next, pull the Right Upright Cover (77) open
slightly, slide it around the Right Upright (73),
and then slide it down to the floor.
Repeat this step on the left side of the tread-
mill. Note: There is not a wire on the left side.
Then, lower the treadmill (see page 26).
18. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill. To
avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included tools in a secure
place; one or more of the tools may be needed to make adjustments to the treadmill in the future. Note: Extra
hardware may be included.
16
17
14
68
74
73
V
U
68
73
77
33
4
4
33
74
4
