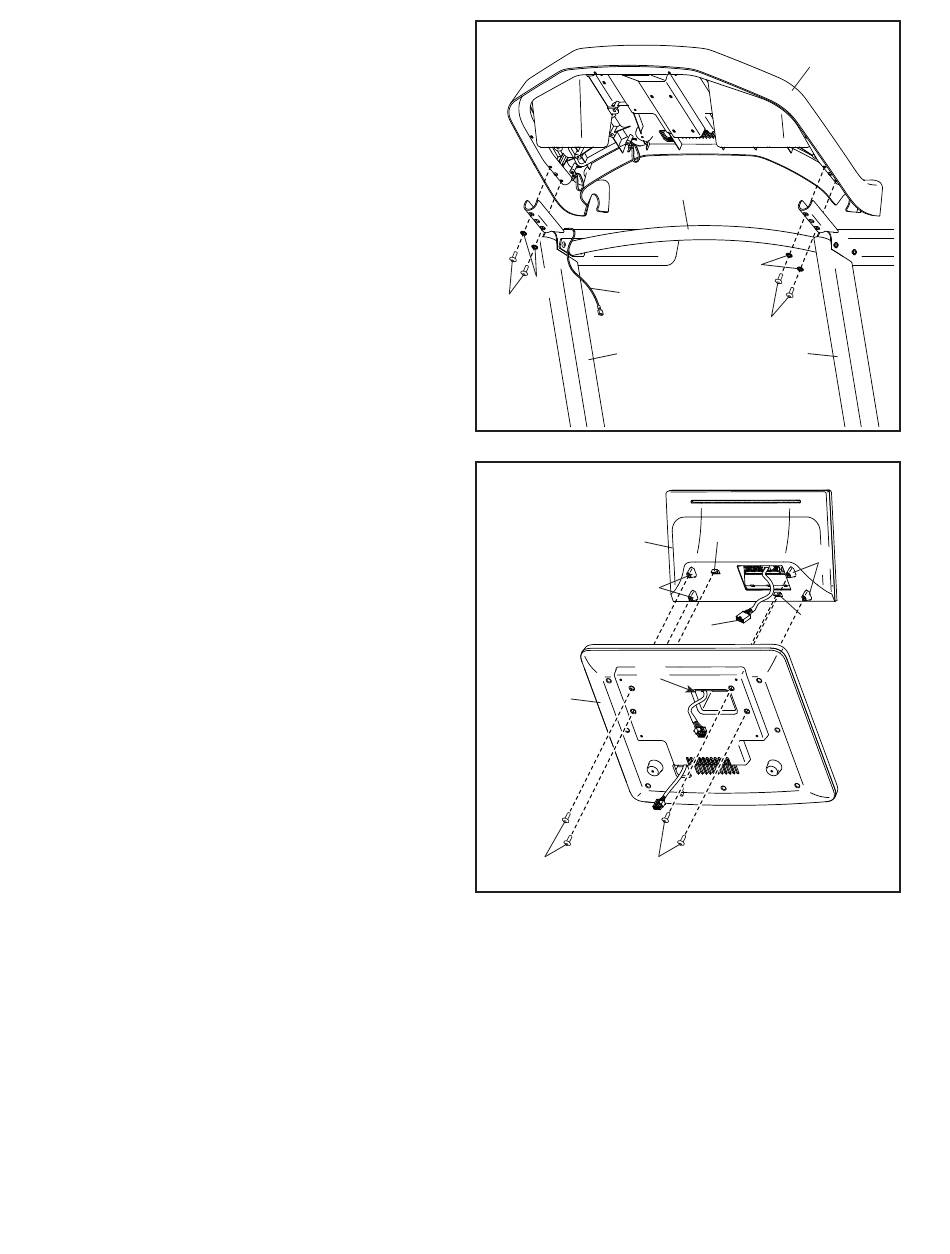

7. Make sure that the Ground Wire (31) is in front
of the Crossbar (69) as shown. Do not pinch
the Ground Wire during this step.
Set the Console Base (84) on the Uprights
(72, 73).
Attach the Console Base (84) with the four
5/16" x 3/4" Screws (2) that you removed in
step 6 and four 5/16" Star Washers (6); start all
four Screws, and then tighten them.
8. Orient the Display (90) and the Console (83) as
shown, and insert the display wire (G) into the
opening (H) in the Console.
Then, insert the four posts (I) and the two tabs
(J) on the Display (90) into the matching open-
ings in the Console (83), and attach the Display
with four #8 x 3/4" Screws (7); start all four
Screws, and then tighten them.
