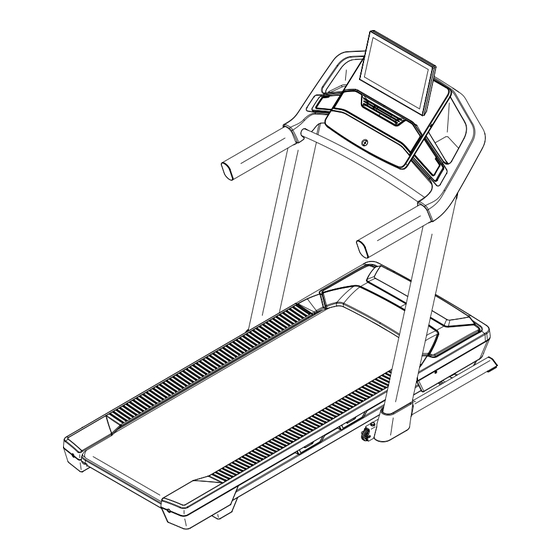

iFIT PRO-FORM CARBON PRO 9000 User Manual

Hide thumbs

page of 36

/ 36
Bookmarks

Quick Links

Download this manual

proform.com

Model No. PFTL16925.1

Serial No.

Write the serial number in the space

above for reference.

Serial Number

Decal

MEMBER CARE

For service at any time, go to

my.iFIT.com or scan the QR

code below. PLEASE DO NOT

CONTACT THE STORE.

CAUTION

Read all precautions and

instructions in this manual before

using this equipment. Keep this

manual for future reference.

USER'S MANUAL

Need help?

Do you have a question about the PRO-FORM CARBON PRO 9000 and is the answer not in the manual?

Questions and answers

Summary of Contents for iFIT PRO-FORM CARBON PRO 9000

Page 1 Write the serial number in the space above for reference. Serial Number Decal MEMBER CARE For service at any time, go to my.iFIT.com or scan the QR code below. PLEASE DO NOT CONTACT THE STORE. CAUTION Read all precautions and instructions in this manual before using this equipment.
Page 2 Apply the decal in the location shown. Note: The decals may not be shown at actual size. PROFORM and IFIT are registered trademarks of iFIT Inc. The Bluetooth word mark and logos are registered ® trademarks of Bluetooth SIG, Inc. and are used under license. Google Maps is a trademark of Google LLC. Wi-Fi...
Page 3 To reduce the risk of burns, fire, electric shock, or injury to persons, read all important precautions and instructions in this manual and all warnings on your treadmill before using your treadmill. iFIT assumes no responsibility for personal injury or property damage sus- tained by or through the use of this product.
Page 4 19. Read, understand, and test the emergency 26. When folding or moving the treadmill, make stop procedure before using the treadmill sure that the storage latch is holding the (see HOW TO TURN ON THE CONSOLE on frame securely in the storage position. Do page 17).
Page 5 BEFORE YOU BEGIN Thank you for selecting the new PROFORM CARBON reading this manual, please see the front cover of this ® PRO 9000 treadmill. The CARBON PRO 9000 tread- manual. To help us assist you, note the product model mill provides an impressive selection of features number and serial number before contacting us (see designed to make your workouts at home more effec-...
Page 6 PART IDENTIFICATION CHART Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw- ing is the key number of the part, from the PART LIST near the end of this manual. The number after the key number is the quantity used for assembly.
Page 7 ASSEMBLY • Assembly requires two persons. • To identify small parts, see page 6. • Place all parts in a cleared area and remove the • Left parts are marked “L” or “Left” and right parts packing materials. Do not dispose of the packing are marked “R”...
Page 8 3. Locate the Upright Wire (74) on the right side of the Base (81). Remove the wire tie (not shown) securing the Upright Wire. Next, identify the Right Upright (73), and have a second person hold it near the Base (81). See the inset drawing.
Page 9 5. Do not pinch the Ground Wire (31) during this step. Locate the small tab (E) on the Crossbar (69). Hold the Crossbar between the Uprights (72, 73), with the tab in the slot (F) in the Left Upright. Attach the Crossbar (69) with four 5/16" x 3/4" Screws (2) and four 5/16"...
Page 10 7. Make sure that the Ground Wire (31) is in front of the Crossbar (69) as shown. Do not pinch the Ground Wire during this step. Set the Console Base (84) on the Uprights (72, 73). Attach the Console Base (84) with the four 5/16"...
Page 11 9. Connect the display wire (G) to the upper console wire (L). IMPORTANT: The wire con- nectors should slide together easily and snap into place with an audible click. You must connect the wires properly for your treadmill to function properly. Then, carefully push the wires (G, L) upward into the opening (H) in the Console (83).
Page 12 11. Route the Upright Wire (74) and the Ground Wire (31) through the two Plastic Ties (45). Next, connect the Upright Wire (74) to the lower console wire (M). IMPORTANT: The wire con- nectors should slide together easily and snap into place with an audible click.
Page 13 14. Remove the 5/16" Nut (23), the two 3/8" Thrust Washers (16), and the 5/16" x 1 3/4" Bolt (19) from the Base (81). Note: If either of the 5/16" Bushings (3) comes out, reinsert it. Next, orient the Storage Latch (71) as shown and attach it to the bracket on the Base (81) with the 5/16"...
Page 14 16. Locate the Square Grommet (68) on the Upright Wire (74). See the inset drawing. Insert the small ear (U) on the Square Grommet (68) into the square hole (V) in the Right Upright (73), and then press the Square Grommet into the square hole. See step 11.
Page 15 HOW TO PLUG IN THE POWER CORD USE A SURGE SUPPRESSOR overloading the circuit, do not plug other electrical devices, except for low-power devices such as cell Your treadmill, like other electronic equipment, can be phone chargers, into the surge suppressor or into damaged by sudden voltage changes in your home’s an outlet on the same circuit.
Page 16 HOW TO USE THE TREADMILL and incline of the treadmill as iFIT trainers guide you FEATURES OF THE CONSOLE through immersive exercise sessions. The advanced console offers a selection of features designed to make your workouts more effective and With an iFIT subscription, you can access a library exciting.
Page 17 HOW TO TURN ON THE CONSOLE HOW TO TURN OFF THE CONSOLE When you finish using the treadmill, remove the key IMPORTANT: If the treadmill has been exposed from the console and put it in a secure place. Then, to cold temperatures, allow it to warm to room press the power switch into the off position and unplug temperature before you turn on the console.
Page 18 4. Create or log in to your iFIT account. Follow the prompts on the screen to create an iFIT Numbered speed buttons on the screen—Each account or to log in to your iFIT account. Available time you touch a button, the walking belt will gradu- subscription options will be shown.
Page 19 (heart symbol). You must ETPF16925 pause icon or press the Stop button on the con- be logged in to your iFIT account to save a fea- sole. To continue the workout, touch the start icon tured workout (see step 2 on page 21).
Page 20 To use a draw-your-own-map workout, you must be Touch the buttons on the screen to select the logged in to your iFIT account and the console must be desired map options. connected to a wireless network.
Page 21 HOW TO USE AN IFIT WORKOUT Touch Save New Workout. If desired, enter a title To use an iFIT workout, you must be logged in to your and description for the workout. iFIT account and the console must be connected to a wireless network.
Page 22 To exit a menu, touch the back button (arrow symbol). You may be able to view and change settings in the following settings 5. Create a list of favorite iFIT workouts if desired. menus: To mark an iFIT workout as a favorite, simply view...
Page 23 4. Customize the unit of measurement and other IMPORTANT: Keep pets, feet, and other objects settings. away from the treadmill while the incline sys- tem is calibrating. In an emergency, remove The console can display speed and distance in the key from the console to stop the incline either standard or metric units of measurement.
Page 24 If you are having problems connecting to an encrypted network, make sure that your password is correct. If you have questions after following HOW TO USE AN OPTIONAL HEART RATE these instructions, go to my.iFIT.com for MONITOR assistance. Whether your goal is to burn fat or to strengthen your car- 3.
Page 25 FCC INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Page 26 HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL HOW TO MOVE THE TREADMILL Before moving the treadmill, fold it as described at the Before folding the treadmill, adjust the incline of left. CAUTION: Make sure that the storage latch is in the treadmill to 0% to avoid damaging the treadmill.
Page 27 Make sure that the settings for your wireless net- tion above to purchase an arc filter. work are correct. b. After the power cord has been plugged in, make c. If you still have questions, go to my.iFIT.com. sure that the key is inserted into the console.
Page 28 SYMPTOM: The walking belt slows when walked on SYMPTOM: The walking belt is off-center a. Use only a surge suppressor that meets all of the a. First, remove the key and UNPLUG THE POWER specifications described on page 15. CORD. If the walking belt has shifted to the left, use the hex key to turn the left idler roller screw b.
Page 29 SYMPTOM: The displays of the console do not function properly a. If the console does not boot up properly, or if the console freezes and does not respond, reset the console to the factory default settings. IMPORTANT: Doing this will erase all of the custom settings that you have made to the console.
Page 30 EXERCISE GUIDELINES Aerobic Exercise—If your goal is to strengthen your WARNING: cardiovascular system, you must perform aerobic Before beginning this exercise, which is activity that requires large amounts or any exercise program, consult your physi- of oxygen for prolonged periods of time. For aerobic cian.
Page 31 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch —never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.
Page 32 PART LIST Model No. PFTL16925.1 R0824A Key No. Qty. Description Key No. Qty. Description Key/Clip Drive Roller/Pulley 5/16" x 3/4" Screw Frame 5/16" Bushing Right Rear Foot 3/8" x 3/4" Screw Left Rear Foot 3/8" Star Washer Idler Roller 5/16" Star Washer Motor Hood #8 x 3/4"...
Page 33 EXPLODED DRAWING A Model No. PFTL16925.1 R0824A...
Page 34 EXPLODED DRAWING B Model No. PFTL16925.1 R0824A...
Page 35 EXPLODED DRAWING C Model No. PFTL16925.1 R0824A...
Page 36 (5) if the product is modified to alter functionality or capability without the written permission of iFIT, or (6) if the product is used for commercial or rental purposes. No other warranty beyond that specifically set forth above is authorized by iFIT.
