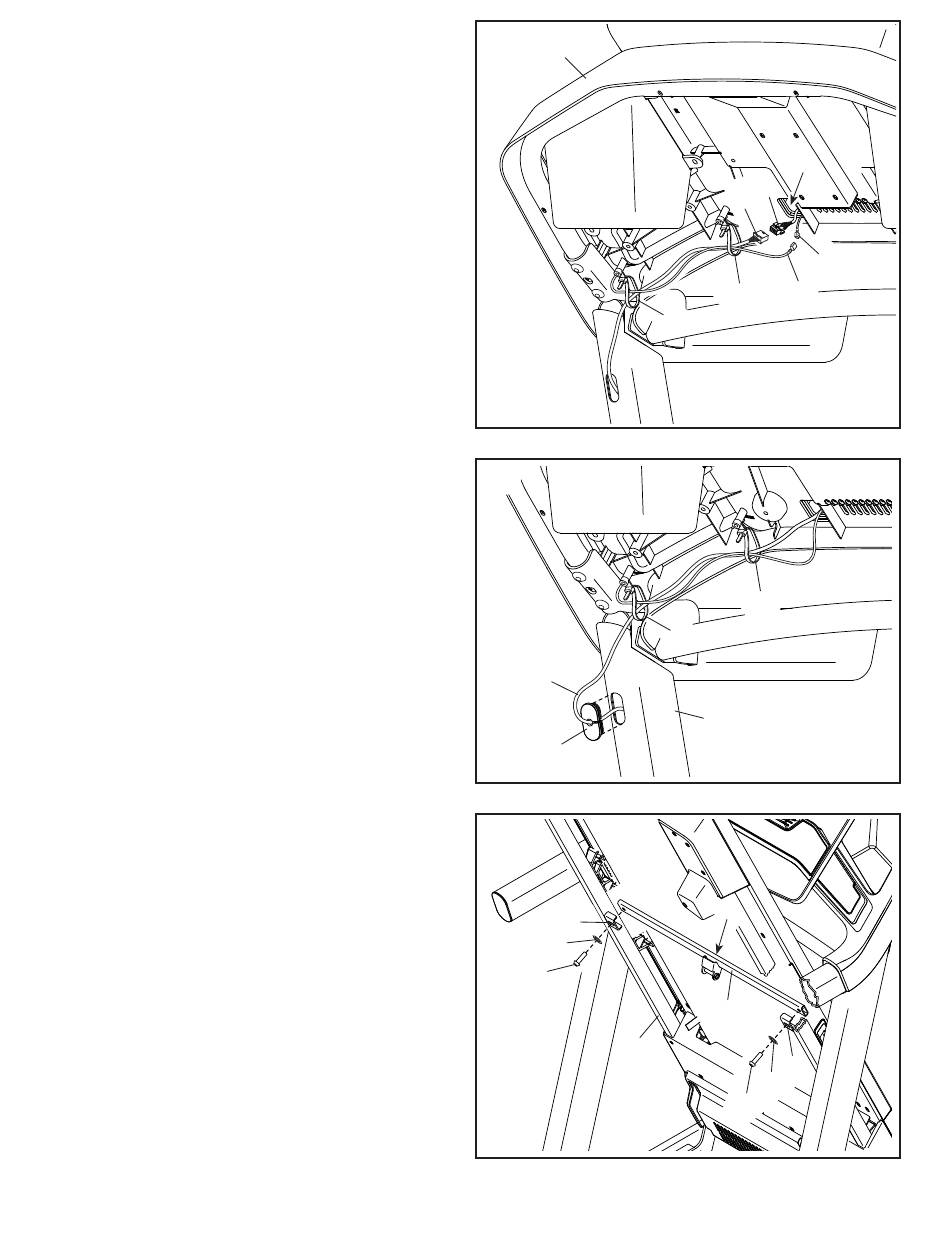

11. Route the Upright Wire (74) and the Ground
Wire (31) through the two Plastic Ties (45).
Next, connect the Upright Wire (74) to the lower
console wire (M). IMPORTANT: The wire con-
nectors should slide together easily and snap
into place with an audible click. You must
connect the wires properly for your treadmill
to function properly.
Next, connect the Ground Wire (31) to the
console ground wire (P).
Then, insert the wire connectors (74, M, 31, P)
into the opening (N) in the Console Base (84).
12. Do not pinch the Upright Wire (74) during this
step.
Slide the Oval Grommet (75) onto the Upright
Wire (74). Next, insert one side of the Oval
Grommet into the Right Upright (73). Then, press
the other side of the Oval Grommet into the
Right Upright.
13. Raise the treadmill to the position shown.
IMPORTANT: Have a second person hold the
Frame (48) until step 13 is completed.
Next, remove the two 5/16" x 3/4" Screws (2)
from the Latch Crossbar (87).
Then, orient the Latch Crossbar (87) as shown;
make sure that the "This side toward belt"
sticker (Q) is facing the treadmill. Attach the
Latch Crossbar to the brackets (R) on the Frame
(48) with the two 5/16" x 3/4" Screws (2) that you
just removed and two 5/16" Star Washers (6).
11
84
12
74
75
13
R
6
2
48
12
N
M
74
P
31
45
45
45
45
73
Q
87
R
6
2
