Landscape Forms Moment Installation Manual

Moment
wall mount Light
Installation Guide

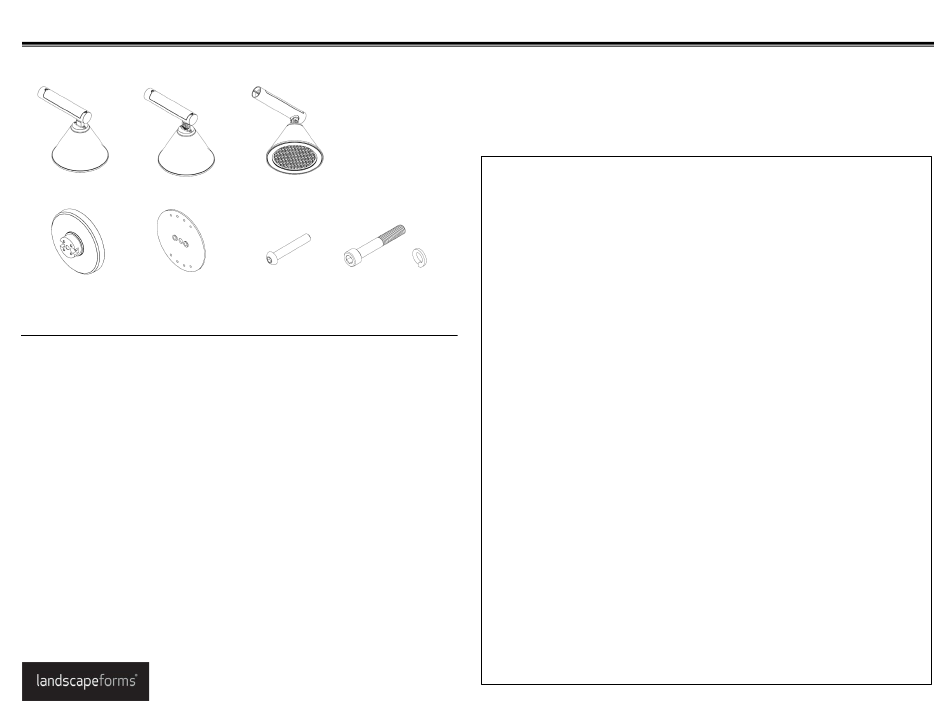

Included components:
Area light
Accent light
Wall mount
Wall mount
casting
plate with
gaskets
Tools Required for installation:
•
Safety glasses
• Level
•
(4) wall mount anchors, max Ø1/4", with max head height (bolt and washer) of
7/16".
• flat head screwdriver
• Hex keys/drivers:
4mm for arm cover plate
5mm for arm to clamp attachment
6mm for adjusting tilt rotation on Accent luminaire
8mm for wall mount casting install
• Wiring tools and connectors
• Dimming control, if required
• Standard single gang junction box, installed (not included)
•
Silicone sealer
Accent light
with louvre
M10 x 65mm socket
M8 x 50mm
hd cap screw with
button hd
lock washer – 2X
screws – 4X
WARNING! Installer must provide strain relief to line-in wires where they connect to light
fixture wires. Failure to do so may cause electrical failure and will void warranty.
WARNING!: LED cartridge and driver are not rated for connection or disconnection while
energized. Doing so may damage LEDs and will void the warranty. Disconnect incoming
power before making or breaking any electrical connections.
INSTALLATION PROCEDURE:
Note: The wall mount plate is designed to work with a standard single gang junction box, supplied
by installer. The outside face of the box should be flush or slightly recessed with the wall.
1. Run line-in voltage wiring and optional dimming wires to junction box (not included).
2. Place wall mount plate in position over junction box and mark hole locations. Plate should
be anchored using at least two holes at the top and at least two holes at the bottom.
Anchors are the responsibility of the installer. Wall mount plate has (8) Ø9/32 holes for
anchoring. Plate is 0.18" thick, with trim ring gasket installed on front side and rectangular
gasket installed on back side, see Fig. 1.
3. Move wall mount plate and drill holes per anchor manufacturer's recommendations.
4. Apply a bead of silicone to back of bracket plate as shown in Fig. 1A as needed to ensure
the plate seals to the single-gang box and the wall.
5. Attach plate to wall with anchors. Plate should be installed so rivet nuts extend inside
junction box. Pull line-in voltage wiring and optional dimming wires through access hole in
wall mount plate. Height of anchor head and washer should not exceed 7/16" to allow for
fit of wall mount casting.
6. Pull line-in voltage wiring and optional dimming wires through access hole in casting. Attach
wall mount casting to wall mount plate, see Fig. 2.
7. Remove luminaire arm cover plate, see Fig. 3. Set hardware aside. Driver components are
attached to cover plate, leave installed.
8. Attach luminaire arm to the wall mount casting, see Fig. 4.
9. Connect line-in voltage wiring to wago block, see Fig. 5.
10. Make optional dimming wire connections inside luminaire arm. Wiring connectors are not
included.
To adjust twist rotation: Note, luminaire ships installed with front of light distribution at 0deg.
Leave Front sticker on luminaire hood until assembly is complete.
1. With arm cover plate removed, disconnect lanyard and wiring to wago block at the
luminaire hood, see Fig. 6, to allow access for socket to fit over nut.
2. Loosen the nut enough to allow rotation of the luminaire hood. Do not remove nut.
Indicators on arm, see Fig. 7, are shown in 15deg increments for reference. Rotate
luminaire to desired location and tighten nut to 75 ft-lbs when in position.
3. Reconnect lanyard and wiring to wago block from luminaire.
4. Reinstall luminaire arm cover plate.
To adjust tilt rotation: (for accent lights only)
1. Loosen bolt, see Fig. 8, until gears are free to rotate. Do not remove bolt. Rotate as needed.
Gears are set at 10deg increments. Once luminaire is in correct position, tighten bolt.
