Landscape Forms FGP Path Light Installation Manual

Advertisement

Quick Links

FGP
Path Light
Installation Guide
Surface Mount
Included hardware
1x – shim
3x – concrete
1x – path light
1x – base
1x – bolt
frame
Plate/driver
Tools Required
• Safety glasses
• Screwdrivers
• Wiring tools and connectors
• 1/2" wrench or socket
• Hammer drill, with 1/2" dia bit
• 8mm hex key or , with min 10" extension
• 1.5mm hex key
• Epoxy anchoring system for concrete
LIGHTING LAYOUT RECOMMENDATIONS:
Light pole spacing is the responsibility of others. Refer to the FGP Path Light Product Data
Sheet, available on www.landscapeforms.com, for light distribution options.
ASSEMBLE WITH CARE! Pangard II Polyester Powdercoat is a strong, long‐lasting finish.  To protect this
finish during assembly, place unwrapped powdercoated parts on packaging foam or other non‐marring
surface.  Do not place or slide powdercoated parts on concrete or other hard or textured surface – this
will damage the finish causing rust to occur.  Use touch‐up paint on any gouges in the finish caused by
assembly tools.
3x – 5/16
washer
3x – 5/16‐18 x
1‐1/4" hex hd bolt
anchor
1x – M10 x 1.5
x 45mm SHCS
1x – sealing
1x – anchor
cover
template
washer
[57mm]
2 1/4" MAX
[44mm]
1 3/4" MAX

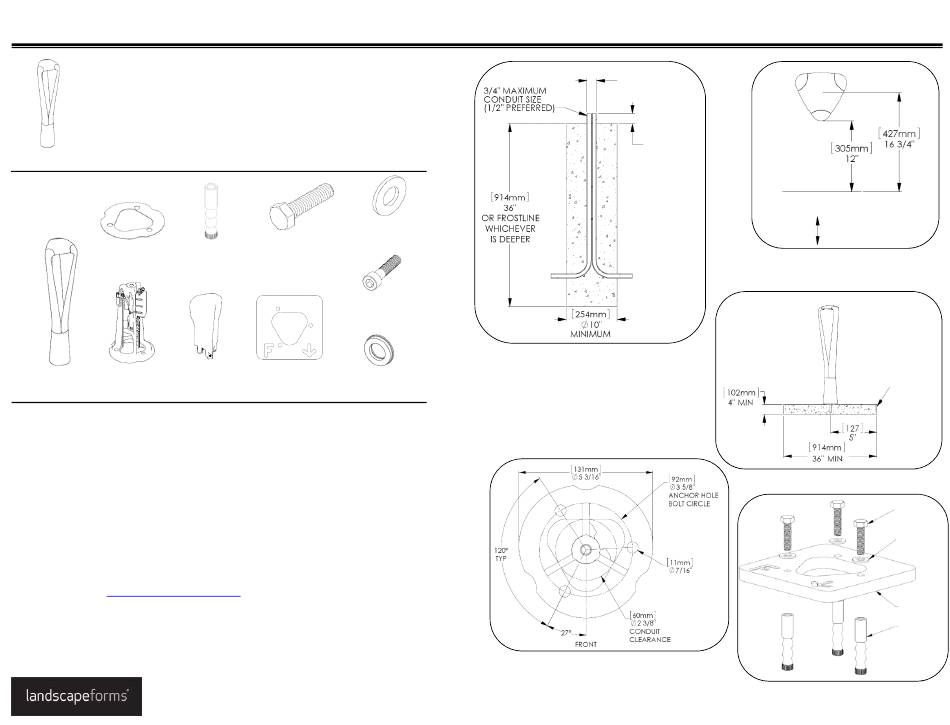

Fig. 1 – Minimum footing recommendation
Fig. 4 – Base plate detail
Date: March 28, 2018
www.landscapeforms.com
Ph: 800.521.2546
SIDEWALK
Fig. 2 – Recommended setback
from sidewalk
Fig. 3 – Minimum concrete slab size
Fig. 5 – Assembly template and anchors
EDGE OR
EXPANSION
JOINT
5/16" HEX
BOLT
5/16"
WASHER
TEMPLATE
CONCRETE
ANCHOR
Page 1 of 2
