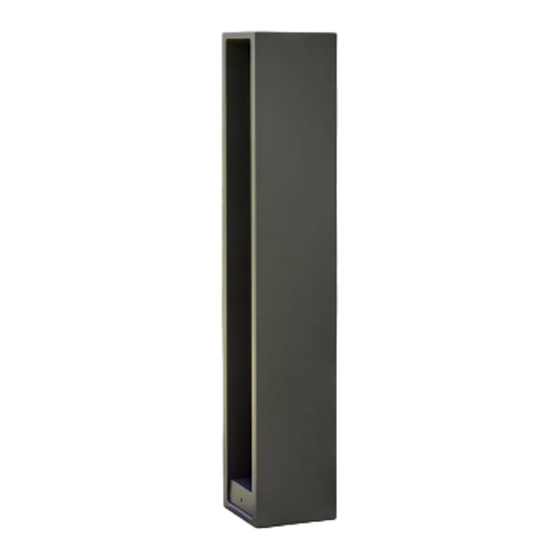

Landscape Forms Profile BW103-2 Quick Start Manual

Profile
unlit perimeter bollard, wayfinding bollard, performance bollard
Installation Guide
BW103-3 BW102-2
BW103-2

Included hardware

5/16 washer
5/16-18 x
Concrete
1-1/4" hex hd bolt
Anchor
-4X
-4X
footcover bracket
2X – unlit bollard
footcover casting
1X – lit bollard
2X – unlit bollard
1X – lit bollard

Tools Required

• Safety glasses
• Screwdrivers
• Wiring tools and connectors, for performance or wayfinding bollard
• 1/2" wrench or socket
• Hammer drill, with 1/2" dia bit
• 5/64 hex key, 5mm hex key
• Epoxy anchoring system for concrete
BW101-T4
BW102-3 BW101-T5
-4X
Anchor
Template
-1X
#8-32 Set screw for
footcover casting
2X – unlit bollard
1X – lit bollard
Installed in casting
ASSEMBLE WITH CARE! Pangard II Polyester Powdercoat is a strong, long-lasting finish. To protect this finish
during assembly, place unwrapped powdercoated parts on packaging foam or other non-marring surface. Do not
place or slide powdercoated parts on concrete or other hard or textured surface – this will damage the finish
causing rust to occur. Use touch-up paint on any gouges in the finish caused by assembly tools.

LIGHTING LAYOUT RECOMMENDATIONS:

Profile bollard spacing is the responsibility of others. Refer to the Product Data Sheet,
available on www.landscapeforms.com, for light distribution options.
SIDEWALK
Fig. 1 – Recommended setback
from sidewalk
[57mm]
2 1/4" MAX
[50mm]
2" MIN
Fig. 3 – Minimum footing recommendation
Date: May 20, 2022
www.landscapeforms.com Ph: 800.521.2546
Fig. 2 – Minimum concrete slab size
Fig. 4 – Base plate detail
EDGE OR
EXPANSION
JOINT
Page 1 of 3
