Landscape Forms Moment Installation Manual

Moment
aluminum pole anchor kit
Installation Guide
Included components
1x – wooden drill template
Included: hardware is galvanized
For 5in straight poles (12ft/14ft/16ft/20ft):
• (4) anchor bolts, 3/4"-10 x 17" x 3" hook ,
• (8) heavy hex nuts, 3/4" x 10, (8) flat washers, .81 ID" x 1.5" OD x 0.13" thick
For 5in/6in stepped poles (25ft):
• (4) anchor bolts, 3/4"-10 x 17" x 3" hook ,
•
(8) heavy hex nuts, 3/4" x 10, (8) flat washers, .81 ID" x 2" OD x 0.13" thick
Tools Required for anchor installation:
• Safety glasses
• Wrenches, 1-1/4"
• Level
LIGHTING LAYOUT RECOMMENDATIONS:
Refer to the product data sheet available at
recommendations for light pole spacing.
Landscape Forms is not responsible for site preparation and footings. Refer to pole
drawings for pole calculations required for footing design.
WARNING! Pole mounted luminaires must be attached either before or immediately
after pole installation. Failure to do so may cause vibration damage to the pole and
will void the pole warranty.
ASSEMBLE WITH CARE! Pangard II Polyester Powdercoat is a strong, long-lasting finish. To
protect this finish during assembly, place unwrapped powdercoated parts on packaging foam or
other non-marring surface. Do not place or slide powdercoated parts on concrete or other hard or
textured surface – this will damage the finish causing rust to occur. Use touch-up paint on any
gouges in the finish caused by assembly tools.
Anchor kit
www.landscapeforms.com for
INSTALLATION PROCEDURE FOR ANCHOR BOLTS:
1. Prepare footing as required by local codes.
2. Install anchor hooks, hex nuts, washers and wooden template as shown in Fig 1. Level
template in all directions.
3. After footing has properly cured, remove wooden template. Do not remove lower
hex nuts or washers.
[19mm]
3/4"
MAX

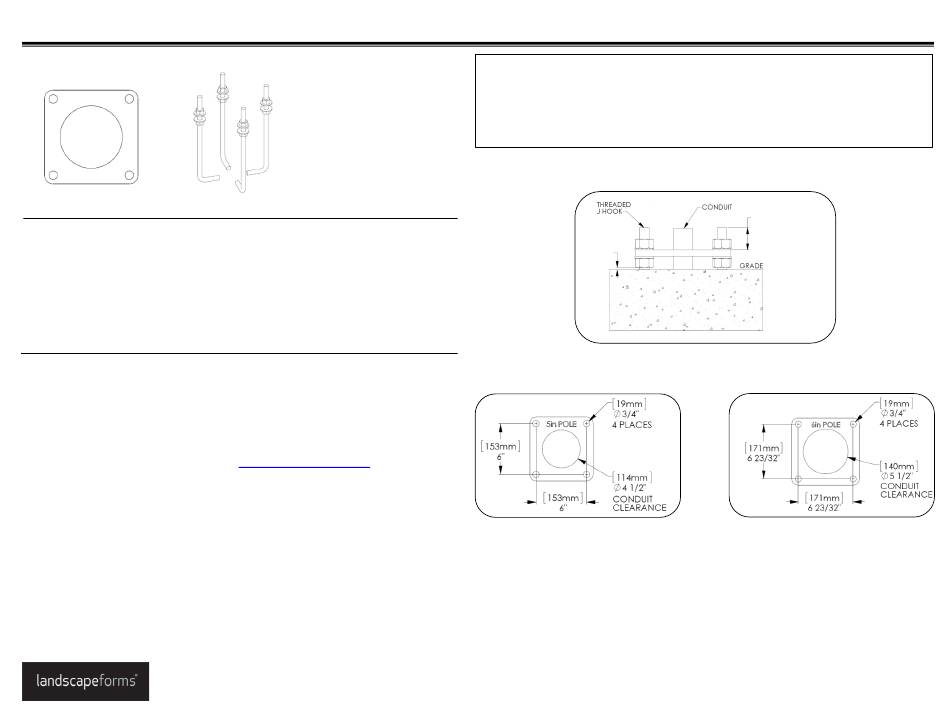

FIG. 1 – ANCHOR INSTALL DETAIL
5" diameter pole
Date: September 30, 2024
www.landscapeforms.com Ph: 800.521.2546
[44mm] 1-3/4" MAX
[30mm] 1-3/16" MIN
6" diameter pole
Page 1 of 7
