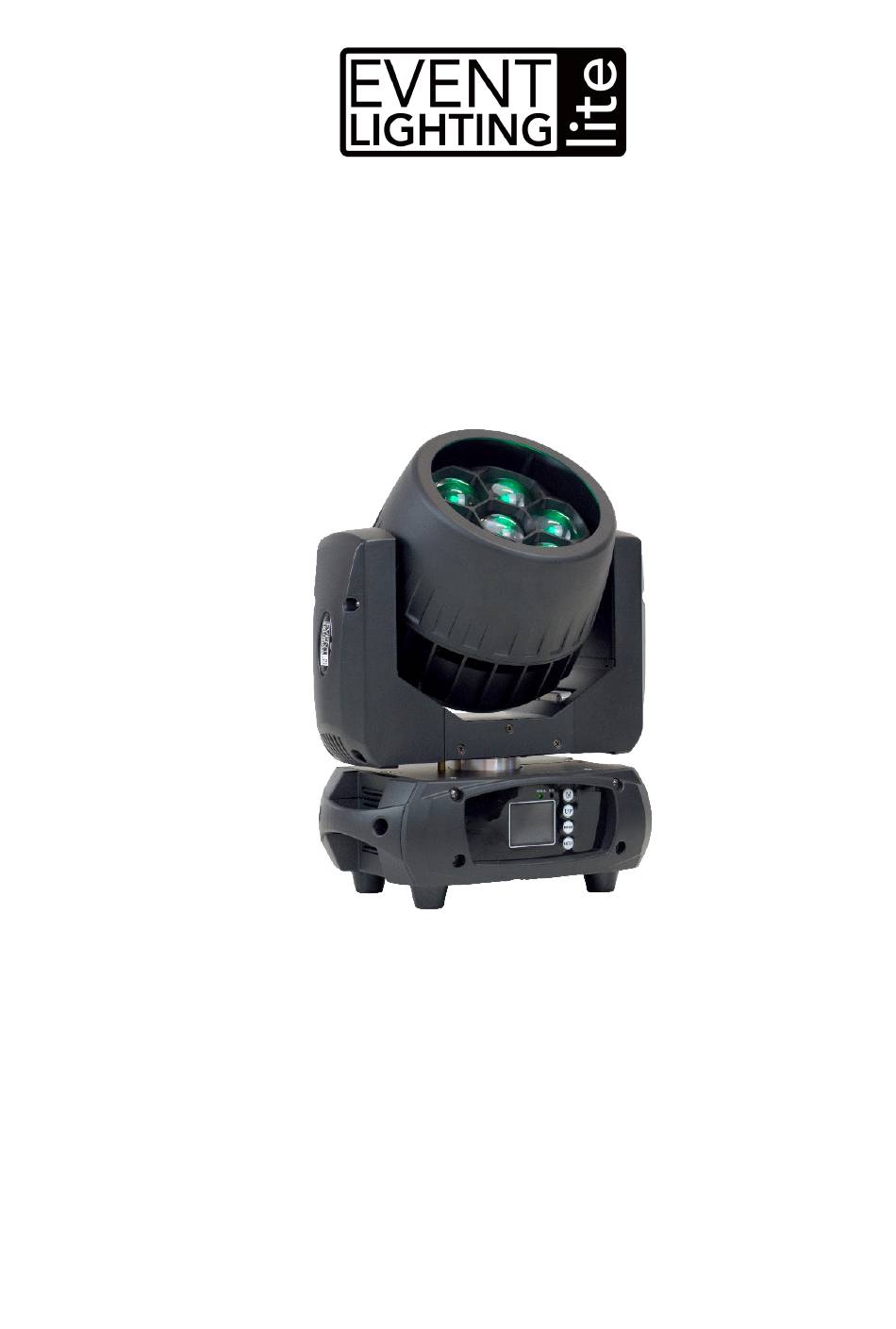

LM7X30

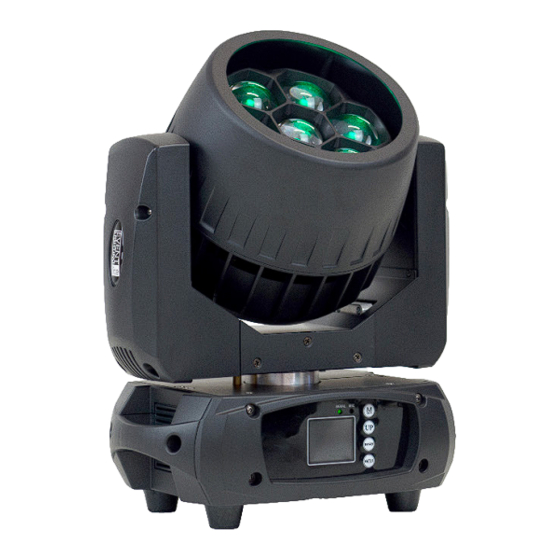

7X30W LED WASH ZOOM HEAD
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are
subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
Please consult Event Lighting for any clarification or information regarding this item.
www.event-lighting.com.au
V1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting Lite LM7X30
Summary of Contents for Event Lighting Lite LM7X30
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
-
Page 2: Safety Instructions
Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 3: Product Installation
Product Installation This device can be mounted in many orientations provided each individual device is secured by the use of correct mounting bracket. Use a safety chain when mounting this device overhead. www.event-lighting.com.au... -
Page 4: Lux Chart
Dimensions Lux Chart Lux Chart @ 6° Ø0.11 Ø0.31 Ø0.52 22,800 3,280 1,310 25,300 3,940 1,150 39,900 6,050 2,280 43,000 6,700 2,590 FULL 115,000 19,130 7,230 Lux Chart @ 60° Ø1.16 Ø3.46 Ø5.77 2,060 2,690 4,260 4,670 FULL 13,200 1,760 www.event-lighting.com.au... -
Page 5: Menu Operation
Menu operation Menu – Move up a level. Up – Move selection up one item. Down – Move selection down one item. Enter – Select / Move down a level. Menu MENU DESCRIPTION Dmx Address A001~AXXX DMX Address Setting CH13 13 Channel Mode Channel Mode CH15... -
Page 6: Dmx Chart
DMX Chart Mode/Channel Value Function Dimmer 0..255 Dimmer 0%...100% Shutter 0..31 Shutter closed 32..63 Shutter open 64..95 Strobe effect slow to fast 96..127 Shutter open 128..159 Pulse effect, slow to fast 160..191 Shutter open 192..223 Random strobe effect, slow to fast 224..255 Shutter open 0..255... - Page 7 64..79 White 80..95 Red+Green 96..111 Red+Blue 112..127 Red+White 128..143 Green+Blue 144..159 Green+White 160..175 Blue+White 176..191 R+G+B 192..207 R+G+B+W 208..223 Jump effect 224..239 Fading effect 240..255 Pulse effect Macro Speed 0..255 Macro speed from slow to fast Colour Temp 0..15 16..45 Below 3200K 46..75 3200K - 3500K...
- Page 8 160..169 Internal program 7 170..179 Internal program 8 180..189 Internal sound program 1 190..199 Internal sound program 2 200..209 Internal sound program 3 210..219 Internal sound program 4 220..229 Internal sound program 5 230..239 Internal sound program 6 240..249 Internal sound program 7 250..255 Internal sound program 8 The device is controlled by universal DMX 512 protocol, DMX address is the start channel used to...
-
Page 9: More Functions
More Functions Software upgrade function via DMX cable. If there is any new firmware for this device, it can be upgraded simply via a software upgrade box, without the need to change any mechanical parts. The upgrade box is not included in the package, if you need any further assistance please contact your authorized dealer. -
Page 10: Warranty
Materials: Metal & flame retardant ABS • Finishing: Matte black • IP rating: IP20 • Cooling: Fan • Net Weight: 6kg • Rigging: 1pc omega brackets with 1/4- turn quick locks WARRANTY Please refer to your local dealer or contact Event Lighting Pty Ltd. www.event-lighting.com.au...
