- Page 1 Installation Guides SCREENS AND GABLES Section: Date: Sep 2024 Page No: 1 of 8 Description: SINGLE SIDED NAVIGATE WIRE CHANNEL HABN_223f Rev. No: 0 Navigate Wire Channel, Single Sided (HNBFCNS)

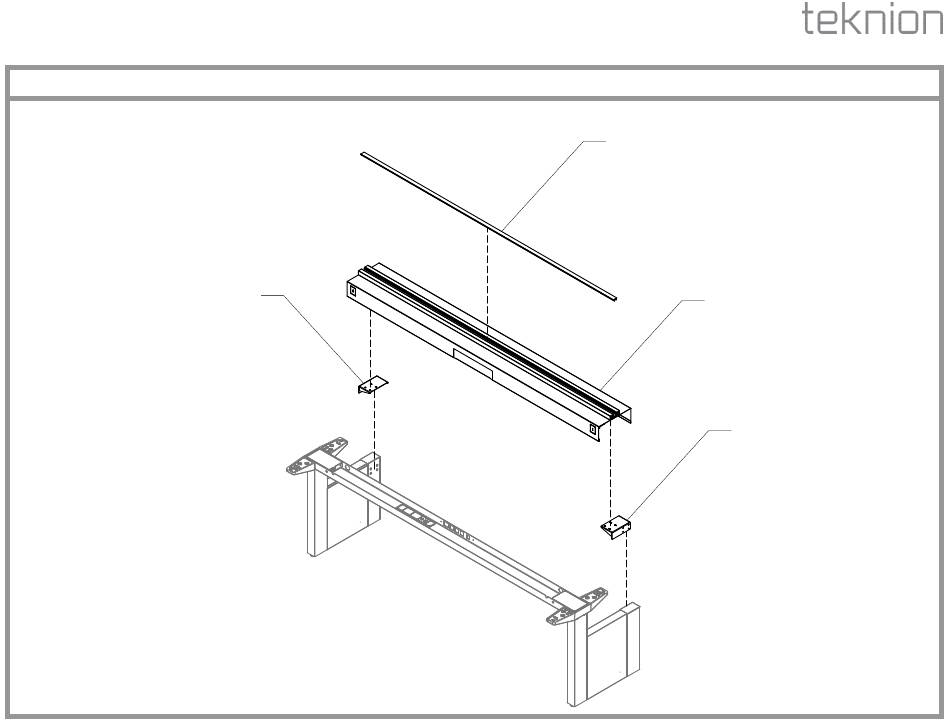

- Page 2 height-adjustable bench Installation Guides SCREENS AND GABLES Section: Date: Sep 2024 Page No: 2 of 8 Description: SINGLE SIDED NAVIGATE WIRE CHANNEL HABN_223f Rev. No: 0 Part and Product Identification E - Support Bracket - Screen Rail, A - Wire Channel, Single Sided Single Sided (N09-8570) x1 (A16-7245L) x1...
- Page 3 height-adjustable bench Installation Guides Section: SCREENS AND GABLES Date: Sep 2024 Page No: 3 of 8 Description: SINGLE SIDED NAVIGATE WIRE CHANNEL HABN_223f REMOVE SUPPORT BRACKETS STEP 1: Remove Support Brackets. Make sure the bolts do not come out of the assembly.
- Page 4 height-adjustable bench Installation Guides Section: SCREENS AND GABLES Date: Sep 2024 Page No: 4 of 8 Description: SINGLE SIDED NAVIGATE WIRE CHANNEL HABN_223f SECURE SUPPORT BRACKETS TO FRAME NOTE: Ensure that the Support Brackets are installed in the correct orientation as shown.
- Page 5 height-adjustable bench Installation Guides Section: SCREENS AND GABLES Date: Sep 2024 Page No: 5 of 8 Description: SINGLE SIDED NAVIGATE WIRE CHANNEL HABN_223f CABLE CHANNEL ASSEMBLY NOTE: Electrics components to be installed on Cable Channel before connecting to Support Brackets. Please refer to Installation Guide 321a, 321b, 322a, or 322b for corresponding Electrics installation.
- Page 6 height-adjustable bench Installation Guides Section: SCREENS AND GABLES Date: Sep 2024 Page No: 6 of 8 Description: SINGLE SIDED NAVIGATE WIRE CHANNEL HABN_223f ATTACH WIRE CHANNEL STEP 3: Align holes on Support Brackets and Wire Channel, Insert Bolts inside Center Rail Extrusion through Wire Channel and Brackets as shown.
- Page 7 height-adjustable bench Installation Guides Section: SCREENS AND GABLES Date: Sep 2024 Page No: 7 of 8 Description: SINGLE SIDED NAVIGATE WIRE CHANNEL HABN_223f SECURE WIRE CHANNEL Underside view STEP 4: Secure Wire Channel in place with Nuts.
- Page 8 height-adjustable bench Installation Guides Section: SCREENS AND GABLES Date: Sep 2024 Page No: 8 of 8 Description: SINGLE SIDED NAVIGATE WIRE CHANNEL HABN_223f CENTER RAIL EXTRUSION CAP STEP 5: Insert Center Rail Extrusion Caps onto Center Rail Extrusion as shown.
