height-adjustable bench

Section:

HEIGHT ADJUSTABLE BENCH

Description:

120 FRAME HAB

120 Worksurface w/ Square Corners (HWBWBT), 120 Worksurface w/ Radius Corners(HWBWJT), 120 Frame (HWBFYT),

Installation Guides

Date:

Sept 2022

HABH_120

A1 or A2

C1 or C2

C12

Page No:

1 of 29

Rev. No: 0

Need help?

Do you have a question about the HWBWBT and is the answer not in the manual?

Questions and answers

Summary of Contents for Teknion HWBWBT

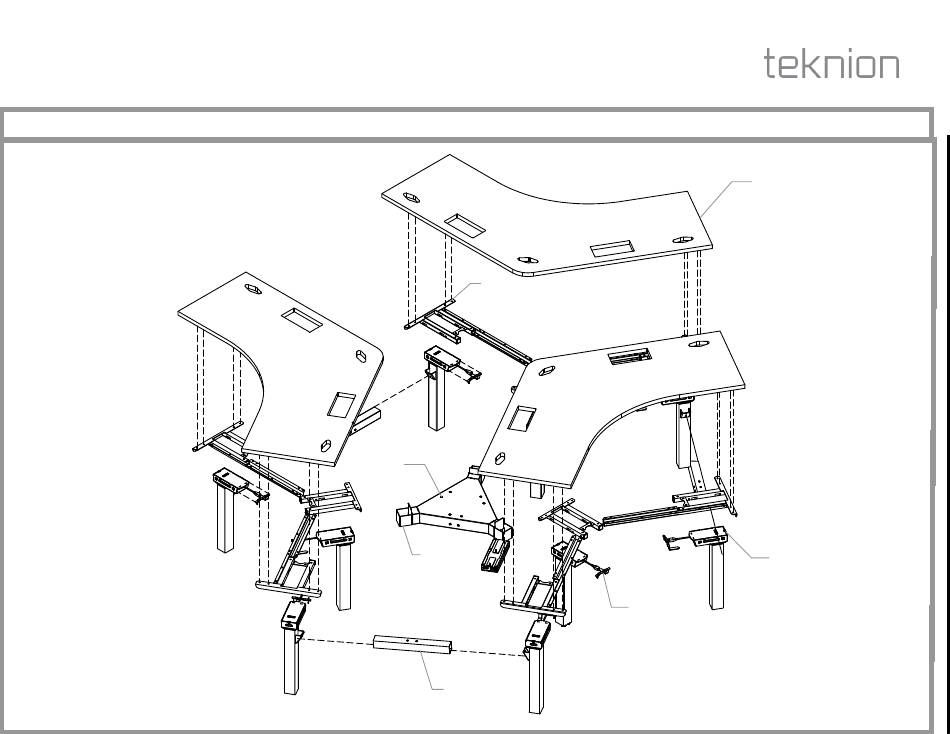

Page 1 Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 1 of 29 Description: 120 FRAME HAB HABH_120 Rev. No: 0 120 Worksurface w/ Square Corners (HWBWBT), 120 Worksurface w/ Radius Corners(HWBWJT), 120 Frame (HWBFYT), A1 or A2 C1 or C2...
Page 2 PT Stiffner Bracket Short w/ Square Corners Screw, Round Corners Weldment (A16-11207X) x 2 (N01-4900) x 1 (HWBWBT) x 1 (E07-0077)x85 (HWBWJT) x 1 (N09-9873) x 2 120 Frame (HWBFYT) C9 -5x25mm C5 - Keypad, C8 - Cable Clamp C7 -Hi-Space...
Page 3 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 3 of 29 Description: FRAME 120 HAB HABH_120 PLACE AND ALIGN WORKSURFACES NOTE: Worksurfaces upside down A1 or A2 STEP 1: Place all the 3 worksurfaces upside down on the ground with the pilot holes facing up and align with each other as shown...
Page 4 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 4 of 29 Description: FRAME 120 HAB HABH_120 ATTACH LEG MOUNT BRACKET WELDMENT ATTACH 3 PT STIFFNER NOTE: Have Shown only one NOTE: Have Shown only one Worksurface, follow the same step Worksurface, follow the same step for remaining 2 worksurfaces...
Page 5 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 5 of 29 Description: FRAME 120 HAB HABH_120 ATTACH LEGS TO BRACKET SECURE LEGS-C1 NOTE: Have Shown only one NOTE: Have Shown only one Worksurface, follow the same step Worksurface, follow the same step NOTE: C1 Leg (N01-7983) is for for remaining 2 worksurfaces...
Page 6 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 6 of 29 Description: FRAME 120 HAB HABH_120 ATTACH LEGS TO BRACKET SECURE LEGS- C2 NOTE: Have Shown only one NOTE: C2 Leg (N01-7764) is for NOTE: Have Shown only one Worksurface, follow the same step Fixed bench (HWBFYT2F) Worksurface, follow the same step...
Page 7 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 7 of 29 Description: FRAME 120 HAB HABH_120 INSTALL CAM HANDLE SECURE CAM HANDLE NOTE: Have Shown only one Worksurface, follow the same step for remaining 2 worksurfaces STEP 6: Install Cam Handles into Brackets and turn towards Leg to lock.
Page 8 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 8 of 29 Description: FRAME 120 HAB HABH_120 ATTACH LEVELERS TO LEGS NOTE: Have Shown only one Worksurface, follow the same step for remaining 2 worksurfaces STEP 8: Attach Levelers to Legs as shown. Fasten by rotating clockwise.
Page 9 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 9 of 29 Description: FRAME 120 HAB HABH_120 PLACE AND ALIGN CLAMPING PLATE ATTACH CLAMPING SLEEVE ASSY Clamping Plate & Clamping Sleeve Assy Flange NOTE: Clamping plate is used as reference for assembling the Clamping Sleeve Assy (N01-8288) Clamping...
Page 10 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 10 of 29 Description: FRAME 120 HAB HABH_120 SECURE CLAMPING SLEEVE ASSY PLACE AND ALIGN ALIGNMENT PLATE NOTE: Have Shown only one NOTE: Have Shown only one Worksurface, follow the same step Worksurface, follow the same step for remaining 2 worksurfaces...
Page 11 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 11 of 29 Description: FRAME 120 HAB HABH_120 PLACE AND ALIGN CLAMPING PLATE ATTACH CLAMPING SLEEVE ASSEMBLY Clamping Plate & Clamping Sleeve Assy Flange NOTE: flange in the Clamping Sleeve Assy (N01-8288) &...
Page 12 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 12 of 29 Description: FRAME 120 HAB HABH_120 SECURE CLAMPING SLEEVE ASSY ATTACH CONTROL BOX TO WORKSURFACE NOTE: Do not over tighten NOTE: Have Shown only one NOTE: Have Shown only one Worksurface, follow the same step Worksurface, follow the same step...
Page 13 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 13 of 29 Description: FRAME 120 HAB HABH_120 ATTACH CONNECTOR NOTE: Middle Leg is hidden for the sake of illustration. NOTE: Have Shown only one Worksurface, follow the same step for remaining 2 worksurfaces STEP 13: Attach the Control Box to the Legs using Hi-Space Motor Cable as shown NOTE: Don't have to attach Control Box Fixed Height(HWBFYT2F)
Page 14 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 14 of 29 Description: FRAME 120 HAB HABH_120 ATTACH SWITCH AND POWER CORD NOTE: Middle Leg is hidden for the sake of illustration. NOTE: Have Shown only one Worksurface, follow the same step for remaining 2 worksurfaces NOTE: Don't have to Attach...
Page 15 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 15 of 29 Description: FRAME 120 HAB HABH_120 ATTACH SWITCH AND POWER CORD NOTE: Middle Leg is hidden for the sake of illustration. NOTE: Have Shown only one Worksurface, follow the same step for remaining 2 worksurfaces NOTE: Don't have to Attach...
Page 16 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 16 of 29 Description: FRAME 120 HAB HABH_120 SECURE LOOSE WIRE NOTE: Middle Leg is hidden for the sake of illustration. NOTE: Have Shown only one Worksurface, follow the same step for remaining 2 worksurfaces NOTE: Do not over tighten STEP 15: Secure loose wire to Worksurface using Cable clamps...
Page 17 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 17 of 29 Description: FRAME 120 HAB HABH_120 ATTACH AND SECURE CONNECTING TUBES STEP 16A: Attach and Secure Connecting tube to one side of the Leg...
Page 18 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 18 of 29 Description: FRAME 120 HAB HABH_120 FLIP OVER TABLE NOTE: Please make sure to have at least two people for this step. NOTE: Have Shown only one Worksurface, follow the same step for remaining 2 worksurfaces STEP 16B: Flip over the Table...
Page 19 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 19 of 29 Description: FRAME 120 HAB HABH_120 ALIGN ALL 3 WORKSURFACE -1 STEP 17: Bring all the 3 work surface together.
Page 20 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 20 of 29 Description: FRAME 120 HAB HABH_120 ATTACH FRAME CONNECTING TUBES STEP 18: Attach frame connecting tube...
Page 21 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 21 of 29 Description: FRAME 120 HAB HABH_120 INSERT ALIGNMENT KIT STEP 19A: Place the Alignment brackets as shown...
Page 22 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 22 of 29 Description: FRAME 120 HAB HABH_120 ALIGN WORKSURFACES NOTE: Make sure the distance between Worksurfaces is equal on both ends. NOTE:Sides of the Worksurface should be aligned 3"...
Page 23 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 23 of 29 Description: FRAME 120 HAB HABH_120 SECURE FRAME CONNECTING TUBES NOTE: Have shown the iunverted view for illustration STEP 20: Secure Frame Connecting Tubes.
Page 24 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 24 of 29 Description: FRAME 120 HAB HABH_120 ROUGH LEVELLING NOTE: Have shown the iunverted view for illustration Level STEP 21: Ensure bench is level. Rotate Levellers as needed to adjust height. This step will be repeated after base link is installed...
Page 25 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 25 of 29 Description: FRAME 120 HAB HABH_120 ATTACH FRAME LINK ASSEMBLY NOTE: Wire Bridge mounting Plate and Cable Riser Mounting Plate is attached to Frame link assembly before attaching NOTE: Worksurfaces are risen by extending the legs (N01-7983) STEP 22A: Rise the worksurface and Attach the Frame Link Assembly to the frame...
Page 26 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 26 of 29 Description: FRAME 120 HAB HABH_120 PLACE THE SCREWS AND SECURE THE SPINE TRAY Arrow Slot Spine Tray (HWBFTH) STEP 22B: Place the screw (E01-1409) in the slots of the Frame link Assembly,Don't tighten the screw, just place the screws in the slot. Install the Double-Sided Spine tray to Frame link assembly NOTE: The arrow on the Spine Tray should always face to the center...
Page 27 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 27 of 29 Description: FRAME 120 HAB HABH_120 TIGHTEN SCREWS STEP 23: Tighten Screws to secure the frame link assembly...
Page 28 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 28 of 29 Description: FRAME 120 HAB HABH_120 PLACE ARM COVER ASSEMBLY Peeloff paper STEP 24: Peel off the paper from the tape attached to the cover and place arm cover assembly in position...
Page 29 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Sept 2022 Page No: 29 of 29 Description: 120 FRAME HAB HABH_120 LEVELLING BENCH-FINAL ADJUSTMENT NOTE: It is recommended to use a laser level tool to check final alignment. NOTE: The unit must be levelled at the exact location of use. Laser Level STEP 25: Repeat Step 21 to ensure entire Bench is level for both Width and Depth.
