height-adjustable bench
Section:
HISPACE CASUAL SPACE DIVISION
Description:
SINGLE-SIDED CORRIDOR SCREENS
Single-Sided Corridor Screen - Framed Fabric (HWBLSF),
Single-Sided Corridor Screen - Solid (HWBLSS)
hiSpace Single-Sided Corridor Screen Alignment Clip - Solid
A4
NOTE: Framed Fabric Screen Shown
Installation Guides
(HWBLBS)
A2
A1
A3
Date:
Nov 2022
HABH_217

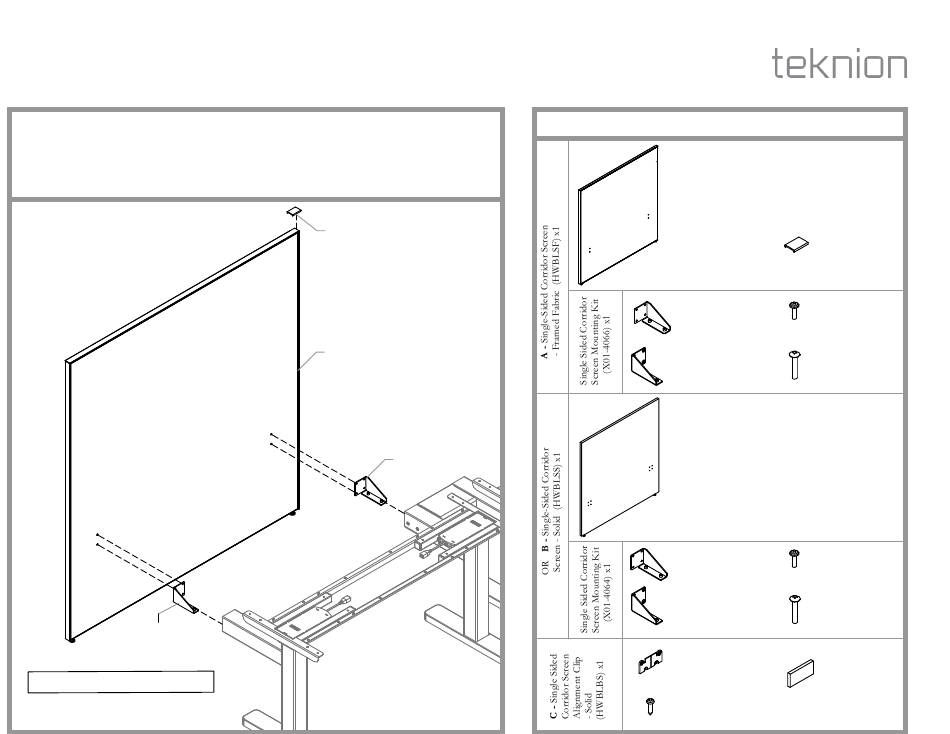

Part and Product Identification
A1 - Single-Sided Corridor
Screen- Framed Fabric
(N01-6226-X) x1
A2 -Alignment Clip
A6 - M6x16mm
A3 - Corridor Screen
Mounting Brkt
(N01-5183L) x1
A4 - Corridor Screen
A6 - 1/4-20x6/8"
Mounting Brkt
(N01-5183R) x1
B1 - Single-Sided
Corridor Screen- Solid
(C07-7001-X) x1
B4 - M6x16mm
B2 - Corridor Screen
Mounting Brkt
(N01-5183L) x1
B3 - Corridor Screen
B6 - 1/4-20x6/8"
Mounting Brkt
(N01-5183R) x1
C1 - Wood Screen
C2 - Wood Screen
Alignment Plate
(A26-0690) x1
C3 - #8x6/8" Wood
Screw (E07-122) x4
Page No:
1 of 6
Rev. No: 2
(B02-0870) x1
Chrome Screw
(E01-1409) x4
Machine Screw
(E01-0098) x4
Chrome Screw
(E01-1409) x4
Machine Screw
(E01-0098) x8
Alignment
Cover
(A26-0691) x1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Teknion HWBLSF
Summary of Contents for Teknion HWBLSF
- Page 1 1 of 6 Description: SINGLE-SIDED CORRIDOR SCREENS HABH_217 Rev. No: 2 Single-Sided Corridor Screen - Framed Fabric (HWBLSF), Part and Product Identification Single-Sided Corridor Screen - Solid (HWBLSS) hiSpace Single-Sided Corridor Screen Alignment Clip - Solid A1 - Single-Sided Corridor...
- Page 2 height-adjustable bench Installation Guides Section: HISPACE CASUAL SPACE DIVISION Date: Nov 2022 Page No: 2 of 6 Description: SINGLE-SIDED CORRIDOR SCREENS HABH_217 ATTACH MOUNTING BRACKETS NOTE: Framed Fabric Screen Shown NOTE: Solid Screen Shown STEP 1: Attach Mounting Brackets to Screen using provided Screws as shown.
- Page 3 height-adjustable bench Installation Guides Section: HISPACE CASUAL SPACE DIVISION Date: Nov 2022 Page No: 3 of 6 Description: SINGLE-SIDED CORRIDOR SCREENS HABH_217 ATTACH TO FRAME SECURE MOUNTING BRACKETS NOTE: Steps are similar for Solid Screen. HAB Single-Sided Frame NOTE: Worksurfaces hidden for illustration purposes STEP 2: Attach the screen to the frame by inserting Mounting Brackets into the Connecting STEP 3: Secure the Mounting Brackets to the frame from the underside of the Connecting...
- Page 4 height-adjustable bench Installation Guides Section: HISPACE CASUAL SPACE DIVISION Date: Nov 2022 Page No: 4 of 6 Description: SINGLE-SIDED CORRIDOR SCREENS HABH_217 ADJUST LEVELLERS ALIGN SCREENS : FABRIC NOTE: Not for Solid Screens. STEP 4: Adjust the Levellers as needed by rotating to ensure the Screen rests properly on the STEP 5: If multiple screens are specified use the Alignment Clip to secure them together by floor.
- Page 5 height-adjustable bench Installation Guides Section: HISPACE CASUAL SPACE DIVISION Date: Nov 2022 Page No: 5 of 6 Description: SINGLE-SIDED CORRIDOR SCREENS HABH_217 POSITION ALIGNMENT COVER POSITION ALIGNMENT PLATE NOTE: Use the Gap created by the Alignment cover as the Clearance. STEP 6: If Specified, Position Alignment Cover to the Top Edge of the Screen STEP 7: Position the Alignment Plate to the Bottom Edge of the Alignment Cover, use the Alignment Cover as Clearance...
- Page 6 height-adjustable bench Installation Guides Section: HISPACE CASUAL SPACE DIVISION Date: Nov 2022 Page No: 6 of 6 Description: SINGLE-SIDED CORRIDOR SCREENS HABH_217 ALIGN SCREENS: SOLID PLACE COVER NOTE: There are no pre-drilled pilot holes in this application NOTE: Do not over tighten STEP 8: Secure the Alignment plate to the screens using the provided Wood Screws.
