Teknion HNBFNZ Installation Manual

Height-adjustable bench

Advertisement

Quick Links

height-adjustable bench
Section:

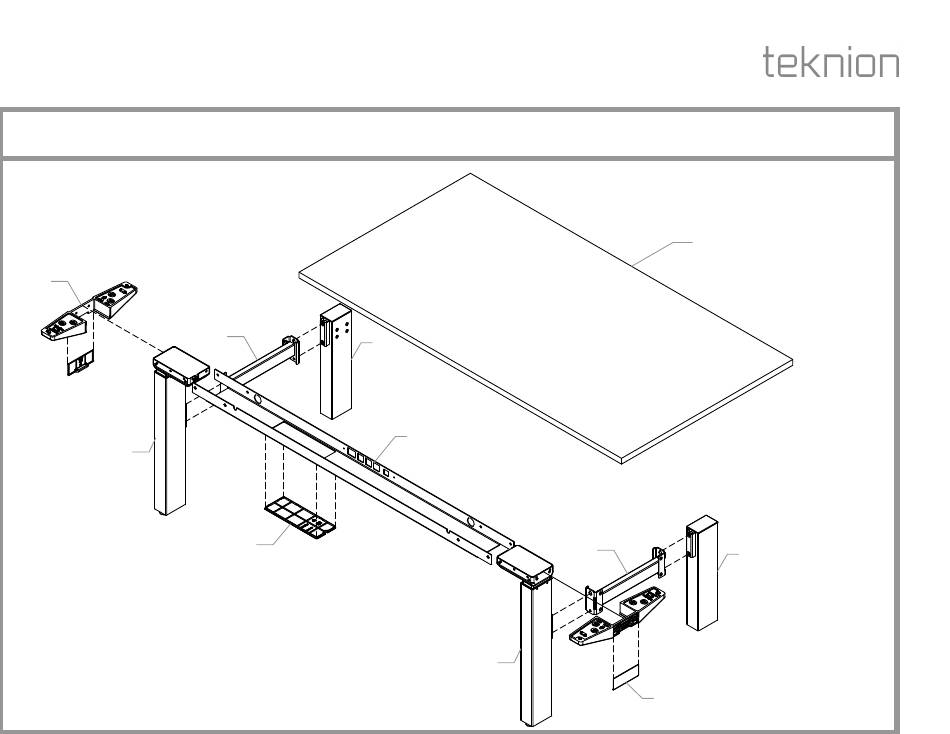

SINGLE SIDED HA FRAME
Description:
FRAMES AND WORKSURFACES
Navigate Double-Sided HA Frame (HNBFNZ), Navigate Rectangular Worksurface (HNBWRS),
A5
A2
Installation Guides
Navigate Rectangular Extended Worksurface (HNBWES)
A4
A15
A7
A3
A4
A1
Date:
Feb 2022
HABN_124
B
A16
A6
Page No:
1 of 14
Rev. No: 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the HNBFNZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Teknion HNBFNZ

  • Page 1 Installation Guides Section: SINGLE SIDED HA FRAME Date: Feb 2022 Page No: 1 of 14 Description: FRAMES AND WORKSURFACES HABN_124 Rev. No: 1 Navigate Double-Sided HA Frame (HNBFNZ), Navigate Rectangular Worksurface (HNBWRS), Navigate Rectangular Extended Worksurface (HNBWES)
  • Page 2 2 of 14 Description: FRAMES AND WORKSURFACES HABN_124 Rev. No: 1 Part and Product Identification A - Navigate Single Sided Std. Range Electric Frame (HNBFNZ)x1 Frame Assembly (N09-9082)x1 A6 - Navigate Strut Cover (A25-0631)x2 A1 - Navigate HAB Leg Assy (N09-8583L)x1...
  • Page 3 3 of 14 Description: FRAMES AND WORKSURFACES HABN_124 Rev. No: 1 Part and Product Identification A - Navigate Single Sided Std. Range Electric Frame (HNBFNZ)x1 A17 - Leg Top Cap A19 - Power Supply A18 - Counter Weight (A25-0668)x2 (I04-0100)x2...
  • Page 4 height-adjustable bench Installation Guides Section: SINGLE SIDED HA FRAME Date: Feb 2022 Page No: 4 of 14 Description: FRAMES AND WORKSURFACES HABN_124 INSTALL HEIGHT-ADJUSTABLE LEGS FASTEN SCREWS TO SECURE LEGS A14b STEP 1: Slide Height-Adjustable legs into the cross beam as shown above. STEP 2: Fasten screws to secure legs to Top Channel.
  • Page 5 height-adjustable bench Installation Guides Section: FRAME AND WORKSURFACES Date: Feb 2022 Page No: 5 of 14 Description: SINGLE SIDED HA FRAME HAB_124 ALIGN LEGS NOTE: Use laser mark tool to check alignment. Laser Mark Laser Mark NOTE: Align laser mark as shown above before proceeding to the next step. If misaligned, adjust levelers.
  • Page 6 height-adjustable bench Installation Guides Section: FRAMES AND WORKSURFACES Date: Feb 2022 Page No: 6 of 14 Description: SINGLE SIDED HA FRAME HABN_124 ATTACH STRUT ATTACH STRUT COVERS A14b A14d STEP 3: Attach Struts to all leg assemblies and Secure using the screws provided. STEP 4: Attach Strut covers to struts installed and secure with screws provided.
  • Page 7 height-adjustable bench Installation Guides Section: FRAMES AND WORKSURFACES Date: Feb 2022 Page No: 7 of 14 Description: SINGLE SIDED HA FRAME HABN_124 ATTACH STRETCHER REMOVE LEG COVER & ADD COUNTER WEIGHTS A14c STEP 5: Attach Stretchers to the Frame as shown above and and Secure using the screws STEP 6: Remove covers from Rear Legs.
  • Page 8 height-adjustable bench Installation Guides Section: SINGLE SIDED HA FRAME Date: Feb 2022 Page No: 8 of 14 Description: FRAMES AND WORKSURFACES HABN_124 ATTACH REAR LEGS TO STRETCHER BARS Rear Leg Assembly A14c Rear Leg Assembly STEP 7: Attach Rear Legs to the Stretcher bars and secure it using the screws provided. Adjust levelers if needed.
  • Page 9 height-adjustable bench Installation Guides Section: SINGLE SIDED HA FRAME Date: Feb 2022 Page No: 9 of 14 Description: FRAMES AND WORKSURFACES HABN_124 ATTACH POWER MODULE (OPTIONAL) ATTACH POWER MODULE COVER (OPTIONAL) STEP 8a: Attach Power Module as shown above. STEP 8b: Attach Power Module Cover as shown above.
  • Page 10 height-adjustable bench Installation Guides Section: SINGLE SIDED HA FRAME Date: Feb 2022 Page No: 10 of 14 Description: FRAMES AND WORKSURFACES HABN_124 WIRE CONNECTIONS A10a A14i NOTE: Make sure that the Dongle is connected to the control box. A10b STEP 9: Make the Wire Connections as shown above.
  • Page 11 height-adjustable bench Installation Guides Section: SINGLE SIDED HA FRAME Date: Feb 2022 Page No: 11 of 14 Description: FRAMES AND WORKSURFACES HABN_124 ATTACH WORKSURFACE TO FRAME A14l A14a A14a A14a STEP 10: Attach Worksurface to Frame with screws provided.
  • Page 12 height-adjustable bench Installation Guides Section: SINGLE SIDED HA FRAME Date: Feb 2022 Page No: 12 of 14 Description: FRAMES AND WORKSURFACES HABN_124 SECURE CONTROL BOX ATTACH CONTROL BOX COVER A14f STEP 11a: Secure Control Box to the Worksurface using the Screws provided. STEP 11b: Attach Control Box Cover to the Cross Beam.
  • Page 13 height-adjustable bench Installation Guides Section: SINGLE SIDED HA FRAME Date: Feb 2022 Page No: 13 of 14 Description: FRAMES AND WORKSURFACES HABN_124 ATTACH CABLE CLAMPS A14h A14e A14g A14g STEP 12: Using wire/Cable Clips and Screws, organize wires as shown above.
  • Page 14 height-adjustable bench Installation Guides Section: SINGLE SIDED HA FRAME Date: Feb 2022 Page No: 14 of 14 Description: FRAMES AND WORKSURFACES HABN_124 PLASTIC TRAY CABLE MANAGEMENT (OPTIONAL) CABLE ORGANIZER (OPTIONAL) NOTE: Refer to COM_151b for Dual NOTE: Refer to COM_151a Plastic Tray Cable Management.
