height-adjustable bench

Section:

HEIGHT ADJUSTABLE BENCH

Description:

FRAME DOUBLE-SIDED HAB

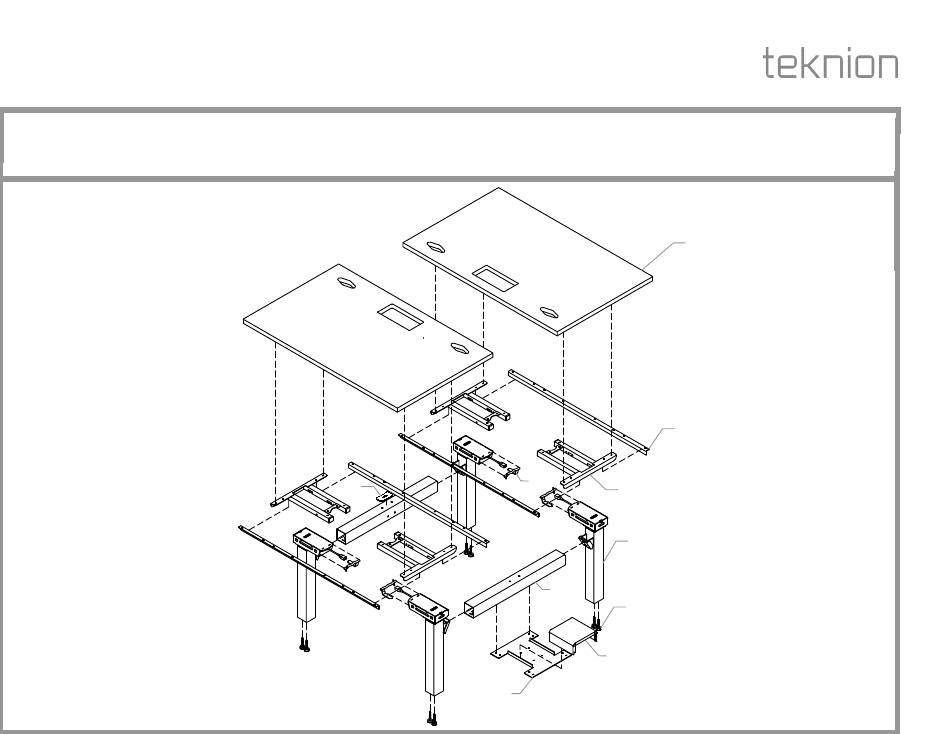

Double-Sided Rectangular Worksurface w/Square Corners (HWBWBD), Double-Sided Rectangular Worksurface

w/Rounded Corners (HWBWJD), Double-Sided Frame (HWBFYD), Double-Sided Base Link(HWBFBD) and

Installation Guides

No Spine Screen Cover Plate (HWBFTV)

C10

Date:

Feb 2022

Page No:

HABH_112

Rev. No: 0

1 of 21

Need help?

Do you have a question about the HWBWBD and is the answer not in the manual?

Questions and answers

Summary of Contents for Teknion HWBWBD

Page 1 Feb 2022 Page No: 1 of 21 Description: FRAME DOUBLE-SIDED HAB HABH_112 Rev. No: 0 Double-Sided Rectangular Worksurface w/Square Corners (HWBWBD), Double-Sided Rectangular Worksurface w/Rounded Corners (HWBWJD), Double-Sided Frame (HWBFYD), Double-Sided Base Link(HWBFBD) and No Spine Screen Cover Plate (HWBFTV)
Page 2 HABH_112 Rev. No: 0 Part and Product Identification A2 - Double-Sided Worksurface A1 - Double-Sided Worksurface w/Radius Corners (HWBWBD) x1 (HWBWJD) x1 B3 - Worksurface Installation Alignment Kit B2 - Reinforcement Bar for (HWBWJD) x1 Worksurface B1 - Leg Mount Bracket...
Page 3 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Feb 2022 Page No: 3 of 21 Description: FRAME DOUBLE-SIDED HAB HABH_112 PLACE AND ALIGN WORKSURFACES ATTACH LEG MOUNT BRACKETS NOTE: Do not over tighten NOTE: Worksurfaces upside down STEP 1: Place both Worksurfaces upside down on the ground with pilot holes facing up and STEP 2: Attach the Leg Mount Brackets to both Worksurfaces and secure with provided align with eachother as shown.
Page 4 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Feb 2022 Page No: 4 of 21 Description: FRAME DOUBLE-SIDED HAB HABH_112 ATTACH REINFORCEMENT BARS NOTE: Do not over tighten STEP 3: Attach the Reinforcement Bars to the Worksurfaces and secure in place with provided screws.
Page 5 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Feb 2022 Page No: 5 of 21 Description: FRAME DOUBLE-SIDED HAB HABH_112 ATTACH LEGS TO BRACKET SECURE LEGS - 1 NOTE: Make sure brackets are facing towards each other as shown here. STEP 4: Attach Legs to the Leg Mounts by lining up with holes.
Page 6 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Feb 2022 Page No: 6 of 21 Description: FRAME DOUBLE-SIDED HAB HABH_112 SECURE LEGS TO BRACKET - 2 SECURE LEGS TO BRACKET - 3 STEP 6: Install Cam Handles into Brackets and turn towards Leg to lock. STEP 7: Insert Pins as shown to lock Cam Handles and secure Legs.
Page 7 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Feb 2022 Page No: 7 of 21 Description: FRAME DOUBLE-SIDED HAB HABH_112 ATTACH LEVELERS TO LEGS STEP 8: Attach Levelers to Legs as shown. Fasten by rotating clockwise.
Page 8 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Feb 2022 Page No: 8 of 21 Description: FRAME DOUBLE-SIDED HAB HABH_112 ATTACH CONNECTING TUBES INSERT ALIGNMENT KIT NOTE: Connecting Tubes should have holes facing each other as shown. STEP 9: Attach the Frame Connecting Tube to the Brackets on the Leg Assembly. STEP 10: Place the alignment brackets as shown.
Page 9 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Feb 2022 Page No: 9 of 21 Description: FRAME DOUBLE-SIDED HAB HABH_112 ALIGN BOTH WORKSURFACES SECURE FRAME CONNECTING TUBES 3" NOTE: Make sure the distance between Worksurfaces is equal on both ends. 3"...
Page 10 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Feb 2022 Page No: 10 of 21 Description: FRAME DOUBLE-SIDED HAB HABH_112 CHECK WORKSURFACE ALIGNMENT STEP 13: Ensure the Space between Worksurfaces (X) remains equal throughout and that the sides of both worksurfaces (Y direction) line up. Loosen up screws for adjustment if necessary.
Page 11 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Feb 2022 Page No: 11 of 21 Description: FRAME DOUBLE-SIDED HAB HABH_112 NOTE: If Felt Cover Cable Organizer is specified refer to guide HABH_317 before installing the Control Box NOTE: Do not over tighten STEP 14: Attach the Control Box to each Worksurface and secure using provided screws.
Page 12 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Feb 2022 Page No: 12 of 21 Description: FRAME DOUBLE-SIDED HAB HABH_112 ATTACH CONNECTOR STEP 15: Attach Control Boxes to Legs using the Connector Cables as shown.
Page 13 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Feb 2022 Page No: 13 of 21 Description: FRAME DOUBLE-SIDED HAB HABH_112 ATTACH SWITCHES AND POWER CORD NOTE: Only Install one Switch to avoid damage when flipping the assembly. NOTE: Do not over tighten STEP 16: Secure one Keypad to Worksurface and connect it to the appropriate Control Box using attached cable.
Page 14 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Feb 2022 Page No: 14 of 21 Description: FRAME DOUBLE-SIDED HAB HABH_112 SECURE LOOSE WIRE NOTE: Do not over tighten STEP 17: Secure loose wire neatly to the Worksurfaces using Cable Clamps.
Page 15 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Feb 2022 Page No: 15 of 21 Description: FRAME DOUBLE-SIDED HAB HABH_112 FLIP OVER TABLE NOTE: Please make sure to have at least two people for this step. STEP 18: Flip over the Table.
Page 16 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Feb 2022 Page No: 16 of 21 Description: FRAME DOUBLE-SIDED HAB HABH_112 INSTALL REMAINING SWITCH STEP 19: Please refer to Step 16 and Step 17 to install the remaining switch.
Page 17 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Feb 2022 Page No: 17 of 21 Description: FRAME DOUBLE-SIDED HAB HABH_112 LINKING ASSEMBLYS: ALIGN WORKSURFACES 2" STEP 20: Bring over 2nd Assembly and Align Worksurfaces so that they are 2" apart.
Page 18 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Feb 2022 Page No: 18 of 21 Description: FRAME DOUBLE-SIDED HAB HABH_112 ROUGH LEVELING NOTE: If the difference in floor elevation between frames is >1-1/8" they cannot be linked. Level STEP 21: Ensure Bench is level. Rotate Levelers as needed to adjust height. This step will be repeated after Base Link is installed.
Page 19 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Feb 2022 Page No: 19 of 21 Description: FRAME DOUBLE-SIDED HAB HABH_112 ATTACH BASE LINK ATTACH BASE LINK COVER NOTE: Worksurfaces are hidden for the sake of illustration. STEP 22: Attach Base Link to underside of Frame Connecting Tubes and Secure using STEP 23: Attach the Base Link Cover to the Base Link and snap in place.
Page 20 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Feb 2022 Page No: 20 of 21 Description: FRAME DOUBLE-SIDED HAB HABH_112 LEVELING BENCH - FINAL ADJUSTMENTS NOTE: It is recommended to use a laser level tool to check final alignment. NOTE: The unit must be levelled at the exact location of use.
Page 21 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Date: Feb 2022 Page No: 21 of 21 Description: FRAME DOUBLE-SIDED HAB HABH_112 ATTACH NO SPINE SCREEN COVER PLATE TO THE BENCH Note: No Spine Screen Cover Plate is used only if no screen is used.
